Tractor · 1969Unverified

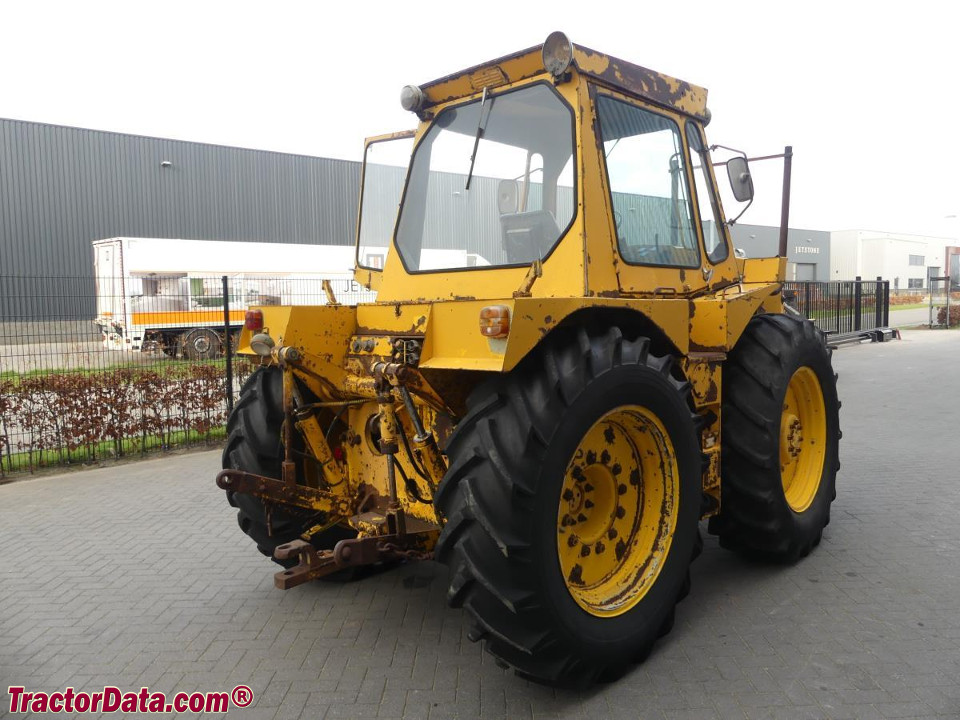

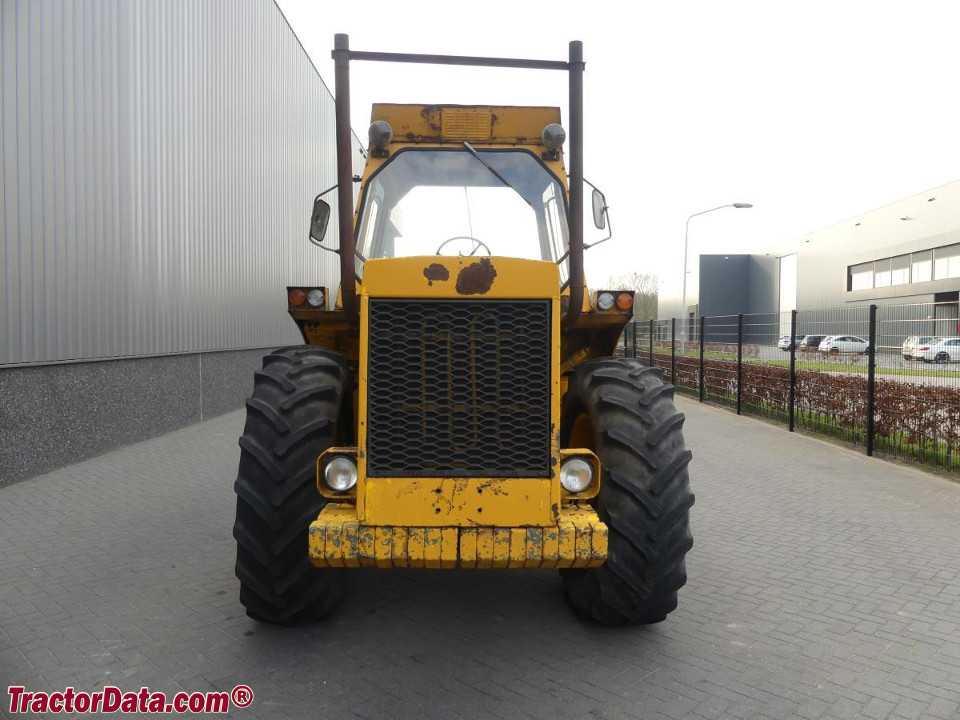

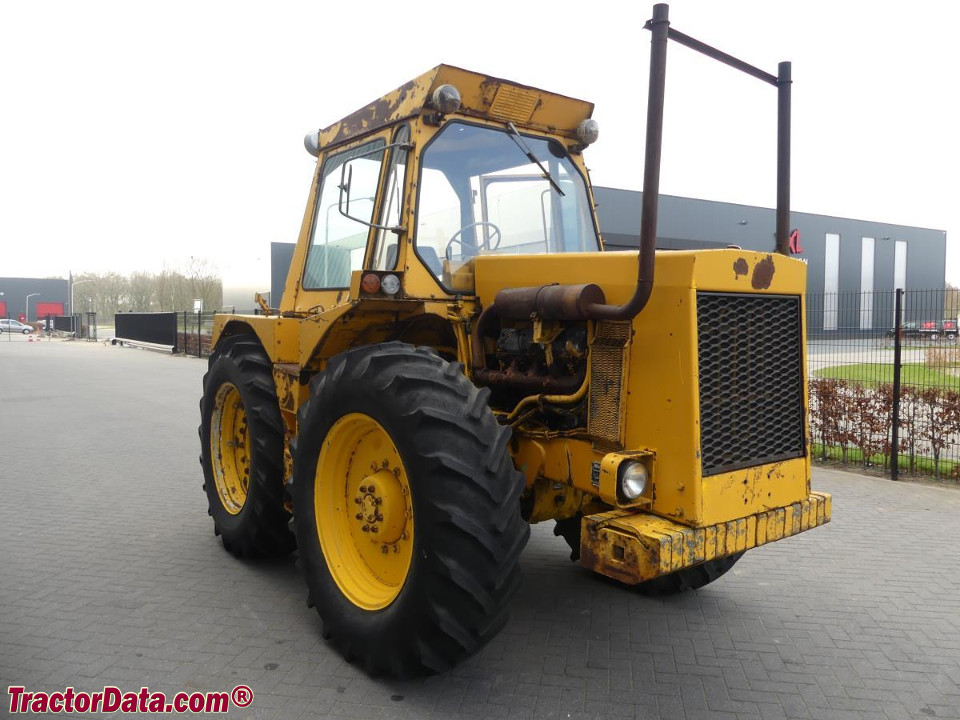

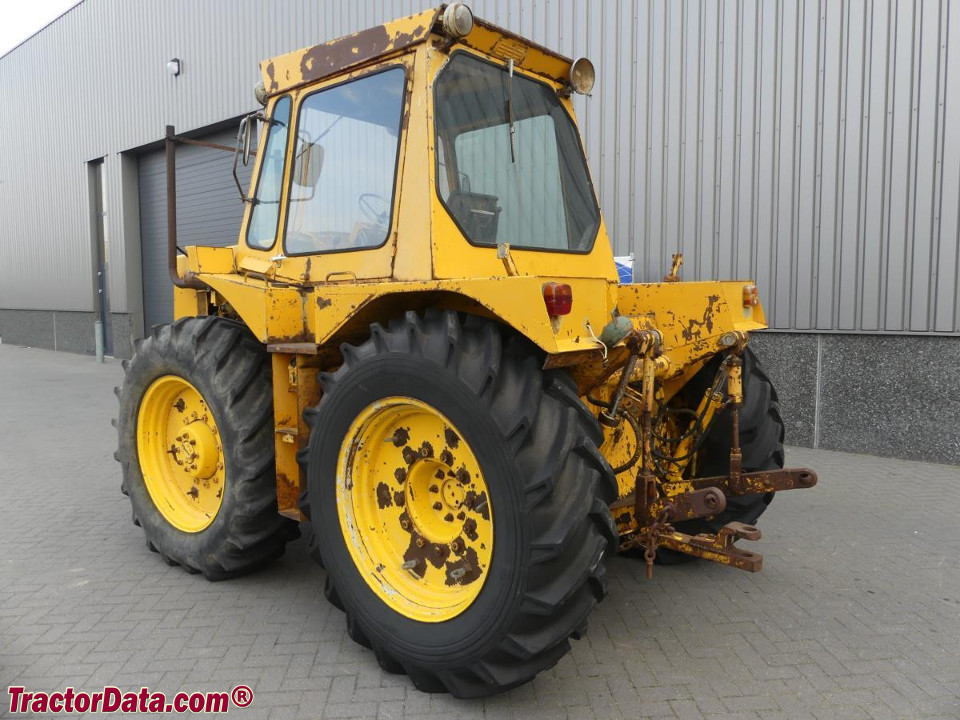

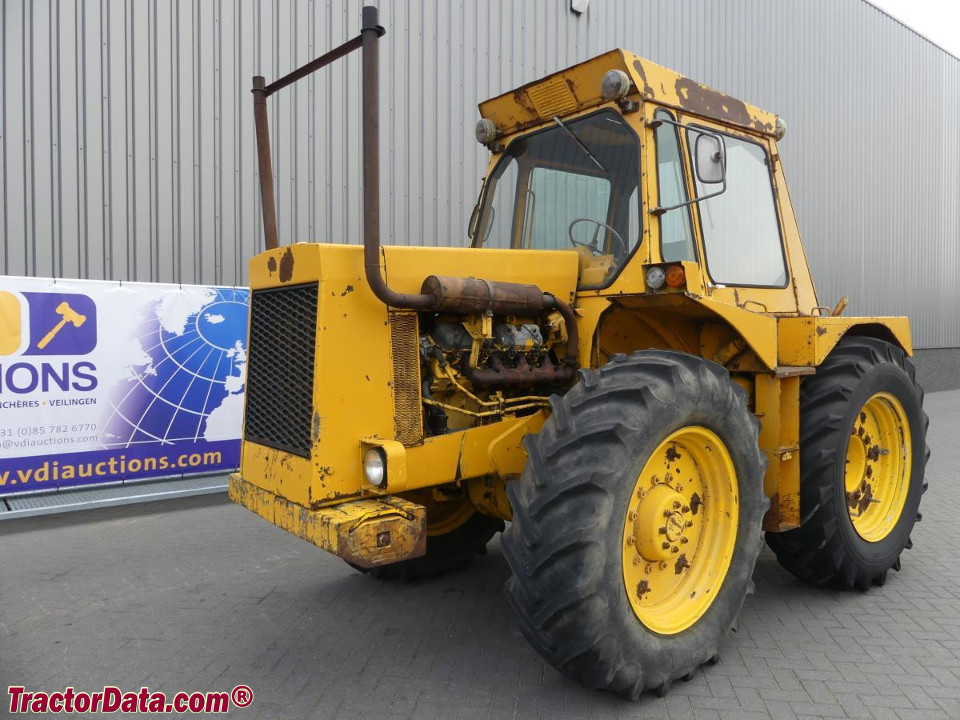

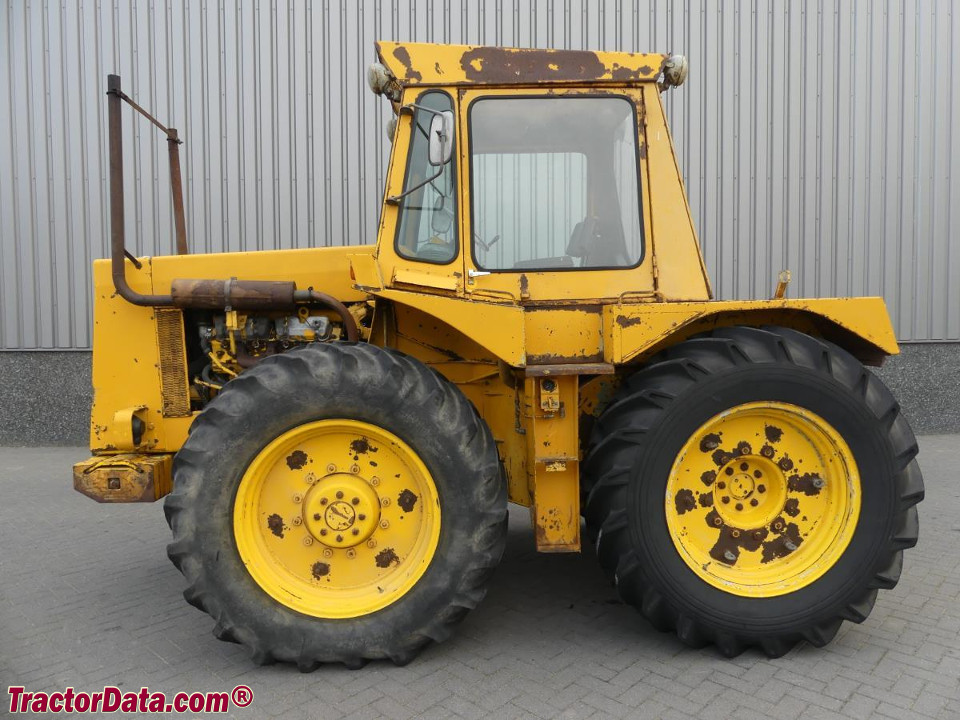

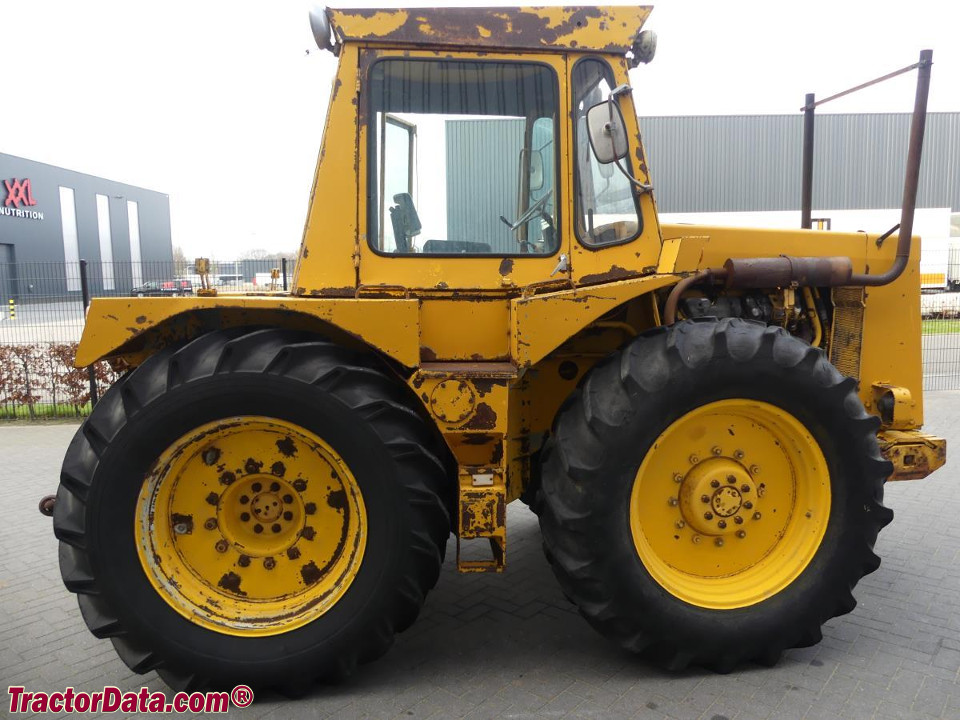

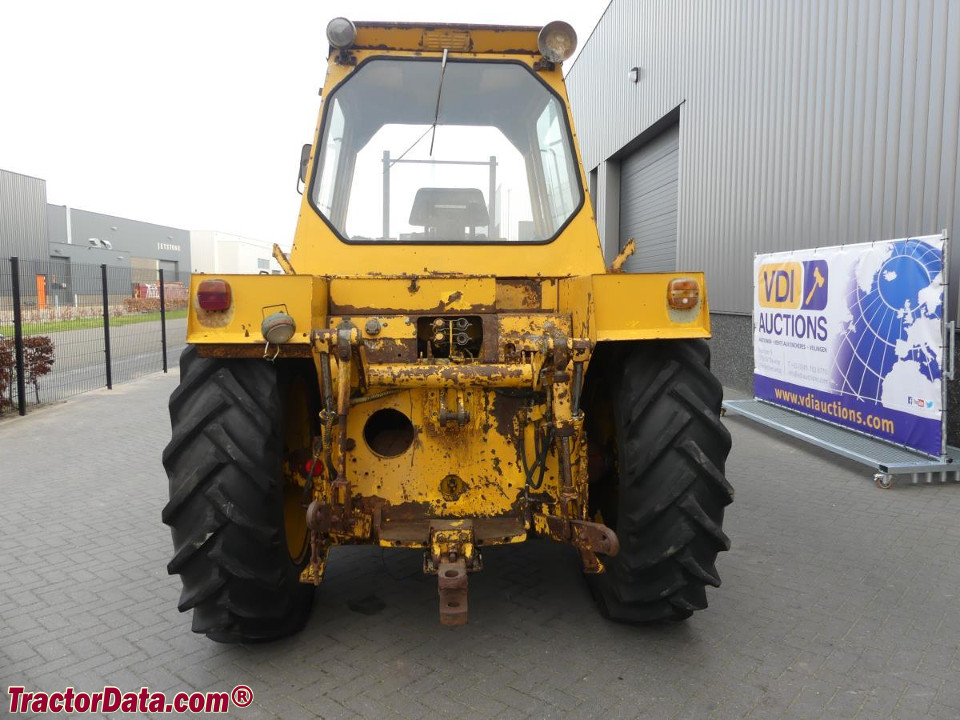

Muir-Hill 161
Muir-Hill 161 — Four-wheel Drive (4WD) tractor · 135 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
135 hp
Weight
5443 kg
Hover a source tag to verify
Overview
ManufacturerMuir-HillReference
Four-wheel Drive (4WD) tractorReference
Built in Manchester, EnglandReference
Drive4x4 4WDReference
SteeringpowerReference
Cab standard. Air-conditioning optional.Reference
Engine
Perkins 8.4L 8-cyl dieselReference
Fuel tank291.4 LReference
Engine138.0 kWReference
Perkins V8.510Reference
dieselReference
8-cylinderReference
liquid-cooled V-8Reference
Displacement8.4 LReference
Bore/Stroke108 x 114 mmReference
Power138.0 kWReference
Compression16.5:1Reference
Rated RPM2500Reference
Torque528.8 NmReference
Torque RPM1500Reference
Starter typeelectricReference
Transmission
10-speed gearReference
TransmissionFuller RT 610Reference
TypegearReference
Gears10 forward and 2 reverseReference
PTO & Hydraulics
PTO (claimed)100.7 kWReference
Typeopen centerReference
Valves2Reference
Pump flow94.6 lpmReference
Rear TypeIIIReference
Dimensions
Wheelbase198 cmReference
Weight5443 kgReference
Front tire23.1/18x26Reference
Rear tire23.1/18x26Reference
Ag front23.1/18x26Reference
Ag rear23.1/18x26Reference
Length419 cmReference
Width247 cmReference
Height (hood)223 cmReference
Height (cab)289 cmReference
Front tread187 cmReference
Rear tread187 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
