Tractor · 1975Unverified

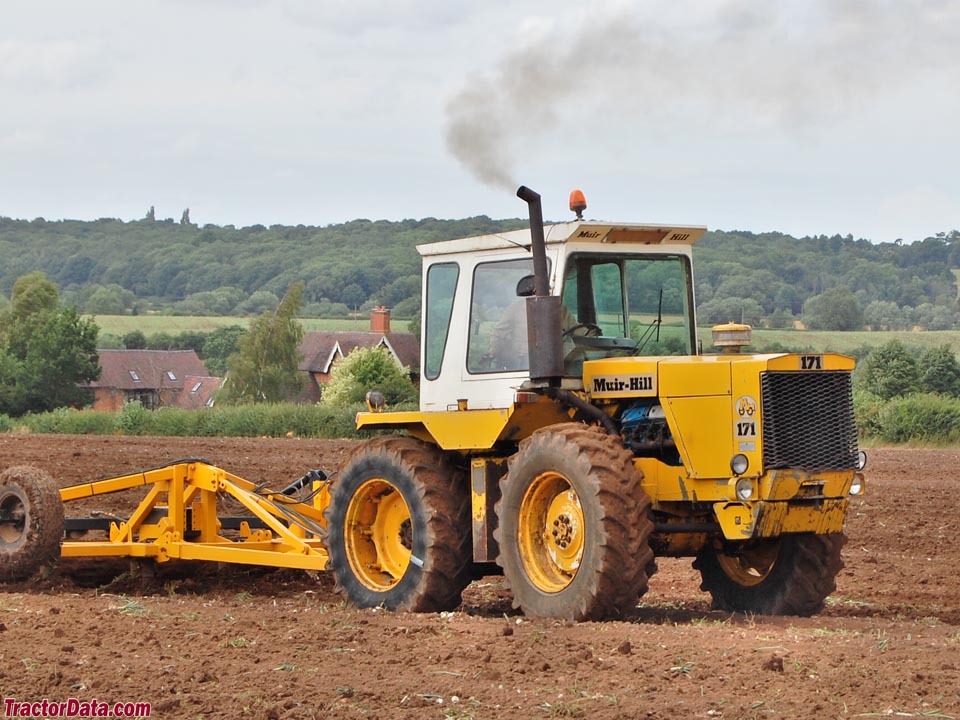

Muir-Hill 171
Muir-Hill 171 — Four-wheel Drive (4WD) tractor · 130 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
130 hp
Weight
6350 kg
Hover a source tag to verify
Overview
ManufacturerMuir-HillReference
Four-wheel Drive (4WD) tractorReference
Built in Manchester, EnglandReference
Drive4x4 4WDReference
Final drivesplanetaryReference
SteeringpowerReference
Hydraulic wet disc brakesReference
Cab standard with heater. Optional air-conditioning.Reference
Engine
Perkins 8.8L 8-cyl dieselReference
Engine132.0 kWReference
Perkins V8.540Reference
dieselReference
8-cylinderReference
liquid-cooledReference
Displacement8.8 LReference
Bore/Stroke108 x 121 mmReference
Power132.0 kWReference
Fuel systemdirect injectionReference
Air cleanerdryReference
Compression16.5:1Reference
Rated RPM2500Reference
Torque556.0 NmReference
Torque RPM1600Reference
StarterelectricReference
Starter volts24Reference
Transmission
10-speed gearReference
TransmissionEaton-Fuller T4510Reference
TypegearReference
Gears10 forward and 2 reverseReference
Clutch355.6mm dry discReference
PTO & Hydraulics
PTO (claimed)96.9 kWReference
Hydraulic system86.3 LReference
Hydraulic system65.9 LReference
Typeopen centerReference
Capacity86.3 LReference
Capacity65.9 LReference
Valves4Reference
Pump flow90.8 lpmReference
Steering flow36.3 lpmReference
Rear TypeIII/IIReference
Controlposition and draft controlReference
Rear PTOindependentReference
Rear PTO Type1000 (1.375)Reference
Engine RPM1000@2300Reference
Capacities
Fuel317.9 LReference
Dimensions
Wheelbase219 cmReference
Weight6350 kgReference
Front tire18.4/15x34Reference
Rear tire18.4/15x34Reference
Ag front18.4/15x34Reference
Ag rear18.4/15x34Reference
Length473 cmReference
Width245 cmReference
Height (cab)313 cmReference
Front tread193 cmReference
Front tread172 to 213 cmReference
Rear tread193 cmReference
Rear tread172 to 213 cmReference
Electrical
Charging systemalternatorReference
Charging amps45Reference
Batteries2Reference
Battery volts12Reference
Battery AH128Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
