Tractor · 1976Unverified

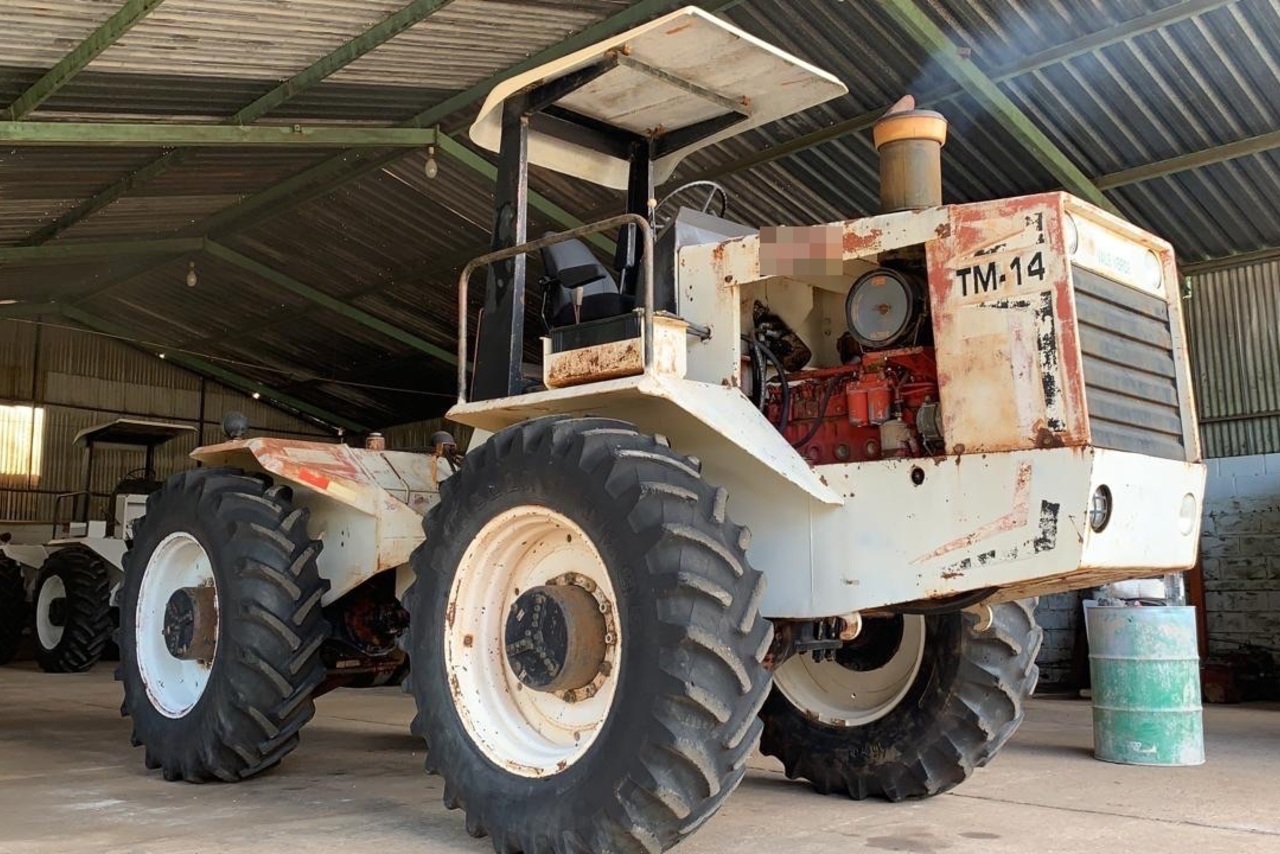

Müller TM14
Müller TM14 — Four-wheel Drive (4WD) tractor · 155 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
155 hp
Weight
6300 kg
Hover a source tag to verify
Overview
ManufacturerMüllerReference
Four-wheel Drive (4WD) tractorReference
Built in BrazilReference
Four-wheel driveReference
Final drivesplanetaryReference
Articulated power steeringReference
Hydraulic disc brakesReference
Open operator station with sunroof canopy.Reference
Engine
MWM 5.9L 6-cyl dieselReference
Engine115.6 kWReference
Drawbar (claimed)99.9 kWReference
MWM TD229-6Reference
turbocharged dieselReference
6-cylinderReference
liquid-cooled inlineReference
Displacement5.9 LReference
Bore/Stroke102 x 120 mmReference
Power115.6 kWReference
Fuel systemdirect injectionReference
Rated RPM2400Reference
Torque500.2 NmReference
Torque RPM1600Reference
Starter typeelectricReference
Oil capacity13.0 LReference
Coolant capacity34.0 LReference
Transmission
10-speed synchronizedReference
TransmissionClarkReference
TypesynchronizedReference
Gears10 forward and 2 reverseReference
Clutch350mm dry discReference
Oil capacity28.0 LReference
Five-speed gearbox with two-speed transfer case.Reference
Capacities
Fuel360.0 LReference
PTO & Hydraulics
Hydraulic system99.9 LReference
Capacity99.9 LReference
Pressure137.9 barReference
Pump flow119.2 lpmReference
Rear TypeIIReference
Rear lift3499 kgReference
Dimensions
Wheelbase274 cmReference
Weight6300 kgReference
Front tire18.4/15x34Reference
Rear tire18.4/15x34Reference
Ag front18.4/15x34Reference
Ag rear18.4/15x34Reference
Ag front23.1/18x26Reference
Ag front23.1/18x30Reference
Ag rear23.1/18x26Reference
Ag rear23.1/18x30Reference
Length582 cmReference
Width206 cmReference
Height (steering wheel)272 cmReference
Height (exhaust)326 cmReference
Ballasted weight8300 kgReference
Electrical
Charging systemalternatorReference
Charging amps35Reference
Batteries2Reference
Battery volts12Reference
Battery AH135Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
