Tractor · 1980Unverified

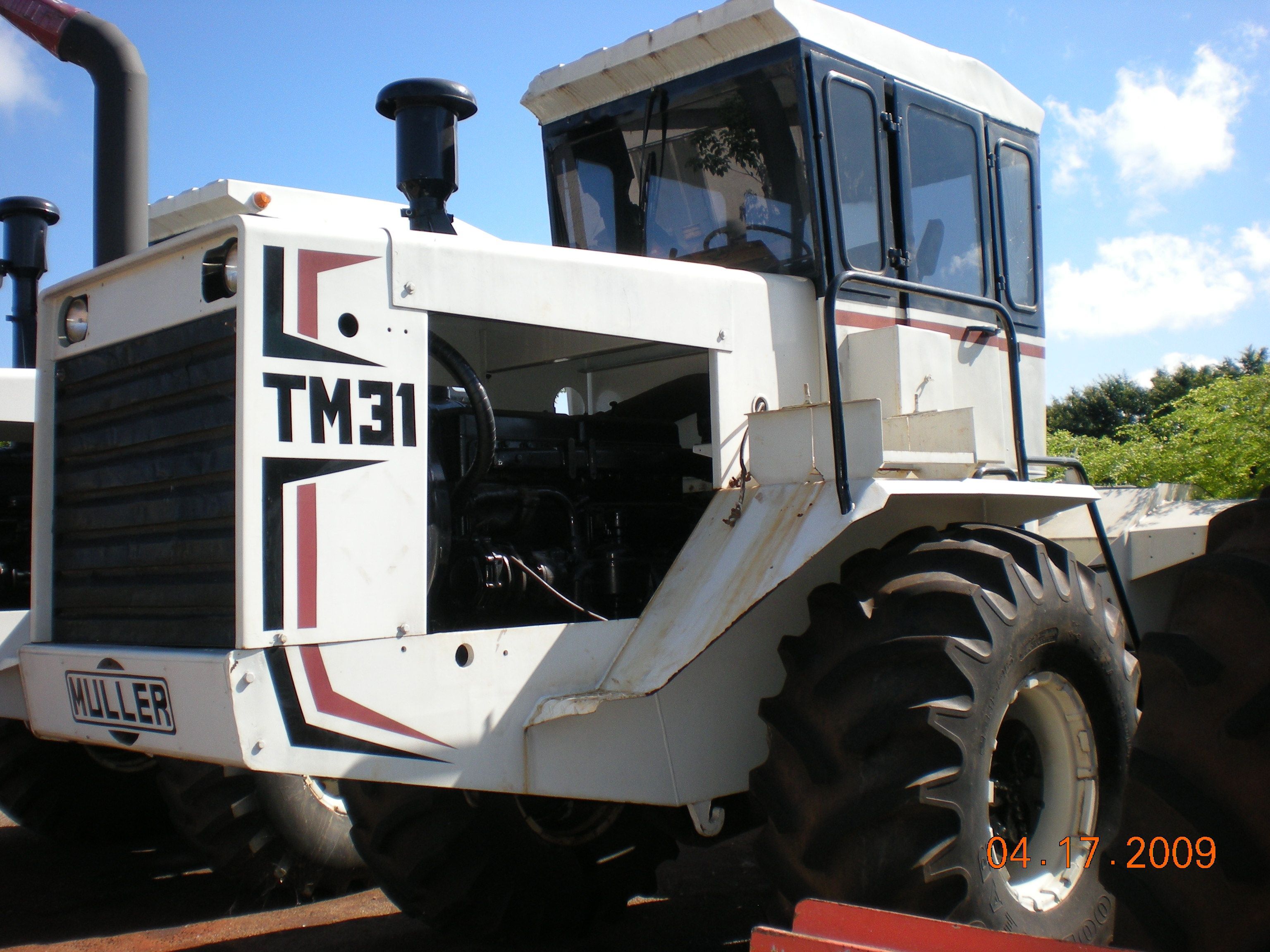

Müller TM31
Müller TM31 — Four-wheel Drive (4WD) tractor · 310 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
310 hp
Weight
12560 kg
Hover a source tag to verify
Overview
ManufacturerMüllerReference
Four-wheel Drive (4WD) tractorReference
Built in BrazilReference
Four-wheel driveReference
Final drivesplanetaryReference
Articulated power steeringReference
Hydraulic disc brakesReference
Cab standard with air-conditioning.Reference
Engine
Cummins 14.0L 6-cyl dieselReference
Engine231.2 kWReference
Cummins NT-855AReference
turbocharged dieselReference
6-cylinderReference
liquid-cooled inlineReference
Displacement14.0 LReference
Bore/Stroke140 x 152 mmReference
Power231.2 kWReference
Fuel systemdirect injectionReference
Rated RPM2100Reference
Torque1142.6 NmReference
Torque RPM1400Reference
StarterelectricReference
Starter volts24Reference
Oil capacity37.0 LReference
Coolant capacity81.0 LReference
Transmission
18-speedReference
TransmissionEatonReference
Gears18 forward and 4 reverseReference
Clutch393.7mm ceramic dry discReference
Oil capacity35.0 LReference
Nine-speed gearbox with two-speed transfer case.Reference
Capacities
Fuel760.0 LReference
PTO & Hydraulics
Hydraulic system120.0 LReference
Capacity120.0 LReference
Pressure137.9 barReference
Pump flow140.0 lpmReference
Rear TypeIIIReference
Rear lift6999 kgReference
Dimensions
Wheelbase338 cmReference
Weight12560 kgReference
Front tire18.4/15x34Reference
Rear tire18.4/15x34Reference
Ag front18.4/15x34Reference
Ag rear18.4/15x34Reference
Ag front23.1/18x26Reference
Ag front23.1/18x30Reference
Ag rear23.1/18x26Reference
Ag rear23.1/18x30Reference
Length744 cmReference
Width231 cmReference
Height (cab)339 cmReference
Ballasted weight14991 kgReference
Electrical
Charging systemalternatorReference
Charging amps55Reference
Batteries2Reference
Battery volts12Reference
Battery AH165Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
