Tractor · 1987Unverified

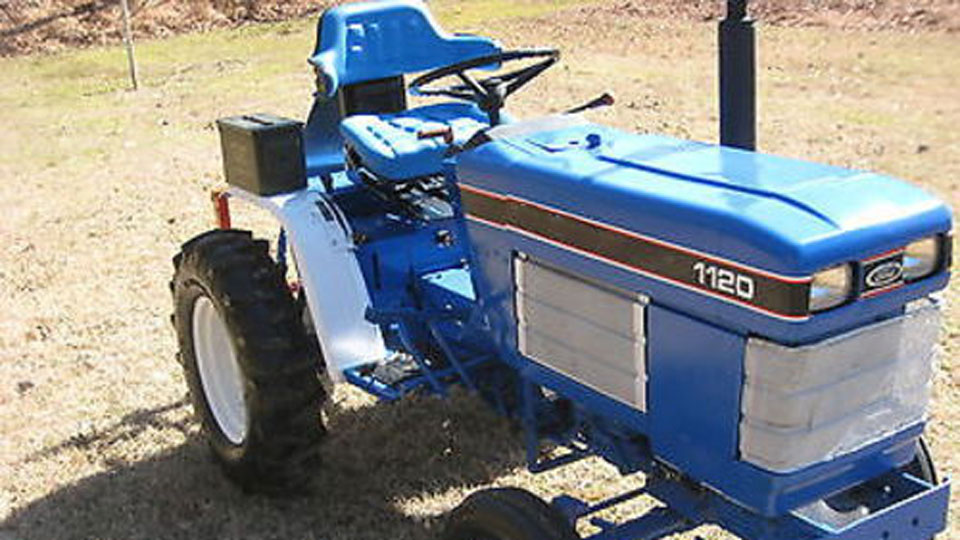

New Holland 1120
New Holland 1120 — Twenty Compact Series · 15 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
15 hp
Weight
1338 to 1429 pounds
Hover a source tag to verify
Overview
DistributorNew HollandReference
ManufacturerShibauraReference
Compact Utility tractorReference
Built in JapanReference
Original price was $9,000 in 1993Reference
Two- or four-wheel driveReference
SteeringmanualReference
SteeringpowerReference
Expanding shoe brakesReference
Two-post ROPS.Reference
Engine
Shibaura 0.9L 3-cyl dieselReference
Fuel tank18.2 LReference
Engine (gross)11.0 kWReference
Engine (net)10.4 kWReference
Shibaura S723Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement0.9 LReference
Bore/Stroke72 x 72 mmReference
Power (net)10.4 kWReference
Power (gross)11.0 kWReference
Compression23:1Reference
Rated RPM2500Reference
Idle RPM800-2700Reference
Firing order1-2-3Reference
Starter volts12Reference
Intake valve clearance0.203 mmReference
Exhaust valve clearance0.203 mmReference
Transmission
9-speed gearReference
hydrostaticReference
TypegearReference
Gears9 forward and 3 reverseReference
TypehydrostaticReference
Gearsinfinite forward and reverse (2-range)Reference
PTO & Hydraulics
Gear PTO (claimed)9.3 kWReference
Hydro PTO (claimed)8.9 kWReference
Typeopen centerReference
Pump flow17.8 lpmReference
Rear TypeIReference
Rear lift (at ends)637 kgReference
Rear PTOtransmissionReference
Rear PTOliveReference
Rear PTO Type540Reference
Mid PTOoptionalReference
Mid PTO Type2000Reference
Dimensions
Wheelbase140 cmReference
Weight1338 to 1429 poundsReference
Front tire4.00-12Reference
2WD Rear tire8-16Reference
Weight158 kgReference
2WD Standard tires (ag)Front: 4.00-12. Rear: 8-16Reference
4WD Standard tires (ag)Front: 5-12. Rear: 8-16Reference
Lawn/turf front20x8.00-10Reference
Lawn/turf rear29x12.00-15Reference
Length270 cmReference
Width103 cmReference
Height (ROPS)203 cmReference
2WD Shipping weight606 kgReference
4WD Shipping weight648 kgReference
2WD Ground clearance25 cmReference
4WD Ground clearance24 cmReference
2WD Front tread85 to 89 cmReference
4WD Front tread82 cmReference
Rear tread85 to 99 cmReference
New Holland 1120 attachments
48" mid-mount mower deckReference
snowblowerReference
bladeReference
front-end loaderReference
backhoeReference
1120 Serial Numbers
1987UB02475Reference
1988UB21281Reference
1989UB21944Reference
1990UB22142Reference
1991UB22329Reference
1992UB22439Reference
1993UB22527Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Battery volts12Reference
Attachment overview
48" mid-mount mower deckReference
SnowblowerReference
BladeReference
Front-end loaderReference
BackhoeReference
48" Mower deck
Typemid-mount Ford 914Reference
Type3-bladeReference
Cutting width121 cmReference
DriveshaftReference
Overall width152 cmReference
Cut height3 to 10 cmReference
Ford 756B Backhoe
Backhoe typeFord 756B BackhoeReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
