Tractor · 1997Unverified

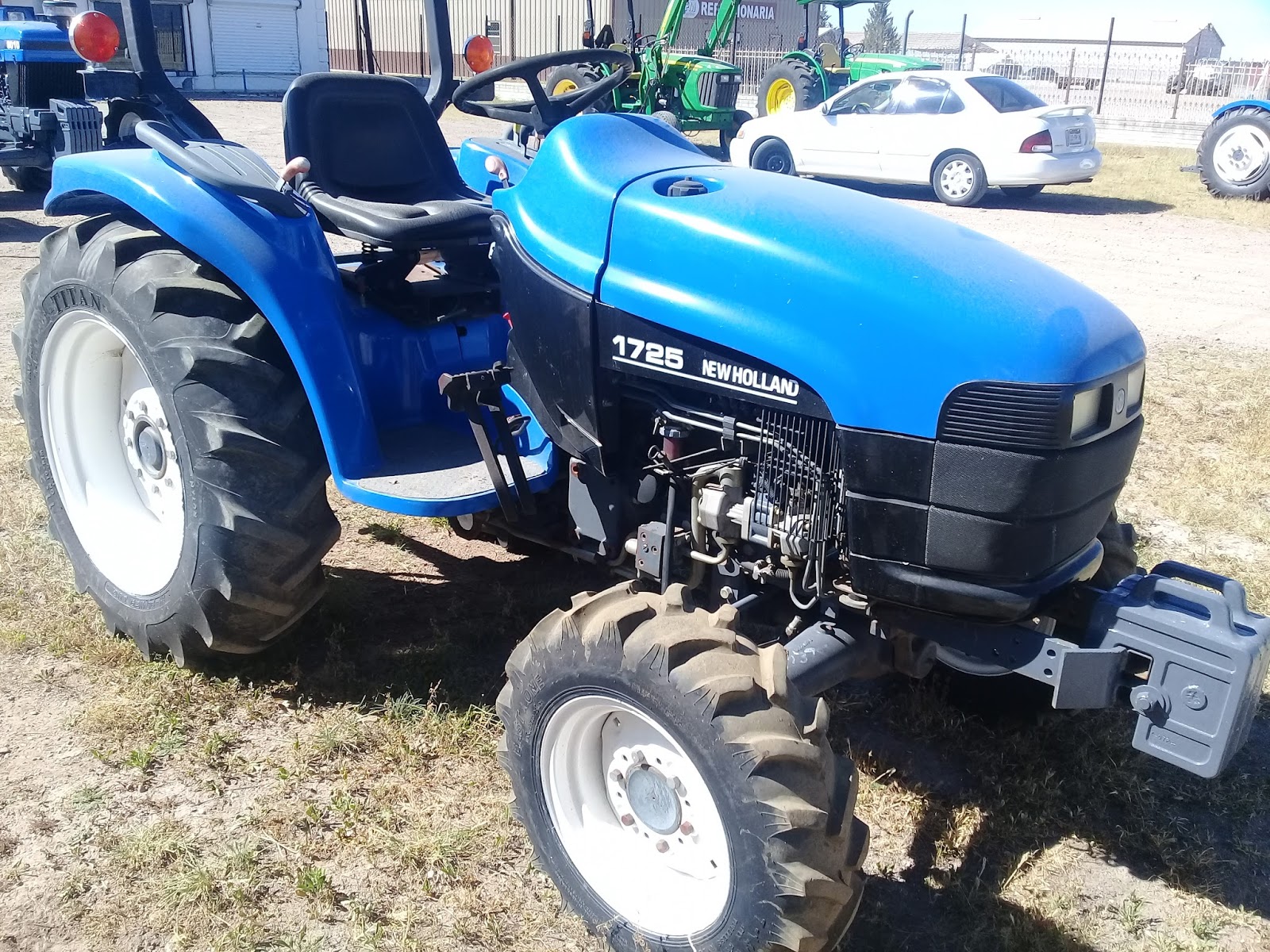

New Holland 1725

New Holland 1725 — Boomer Series · 29 hp. Reference specifications; pending source verification.

The New Holland 1725 is a compact tractor model, rated at 29 hp. Manufactured between 1997 and 1999, it features a 3-cylinder diesel liquid-cooled engine, which drives the mechanical front-wheel drive via a hydrostatic transmission. The listed weight of the 1725 falls within the range of 2206 to 2304 pounds. This model is suitable for tasks on approximately 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power
29 hp
Weight
2206 to 2304 pounds

Catalogue coverage

Variants represented
2
Richest spec table
77 rows
Recorded power
29 hp
Recorded weight
1000 kg
Transmissions
9-speed sliding gear
Production years
1997-1999
Verified variants
0

1 linked source document displayed

Hover a source tag to verify

Overview

DistributorNew HollandReference
ManufacturerShibauraReference
Compact Utility tractorReference
Original price$12,600 (1999)Reference
Drive4x2 2WDReference
Drive4x4 MFWD 4WD (optional)Reference
Final drivesspur gearReference
Steeringhydrostatic powerReference
Wet disc brakesReference
Two-post fixed ROPS. Foldable ROPS optional.Reference

Engine

Shibaura 1.3L 3-cyl dieselReference
Fuel tank27.6 LReference
Engine (gross)21.6 kWReference
Engine (net)20.4 kWReference
ShibauraReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.3 LReference
Power (net)20.4 kWReference
Power (gross)21.6 kWReference
Fuel systemindirect injectionReference
Pre-heatingglow plugsReference
Rated RPM2800Reference
Starter volts12Reference

Transmission

9-speed sliding gearReference
Typesliding gearReference
Gears9 forward and 3 reverseReference
Clutchdry discReference

PTO & Hydraulics

PTO (claimed)18.7 kWReference
Typeopen centerReference
Pressure147.1 barReference
Pump flow23.1 lpmReference
Total flow36.0 lpmReference
Steering flow13.2 lpmReference
Rear Type1Reference
Controlposition controlReference
Rear lift (at ends)871 kgReference
Rear lift (at 24"/610mm)741 kgReference
Rear PTOtransmissionReference
Rear PTO Type540Reference
Mid PTOtransmission (optional)Reference
Mid PTO Type2000Reference

Dimensions

Wheelbase160 cmReference
Weight2206 to 2304 poundsReference
Front tire5.50x16Reference
Rear tire11.2x24 (2WD)Reference
Standard tires (ag)Front: 5.50x16. Rear: 11.2x24 (2WD)Reference
4WD Standard tires (ag)Front: 7x14. Rear: 11.2x24Reference
Ag rear11.2-24Reference
Lawn/turf front23x8.50-12 (2WD)Reference
Lawn/turf front25x8.50-14 (4WD)Reference
Lawn/turf rear13.6-16Reference
Industrial front25x8.50-14Reference
Industrial rear15x19.5Reference
2WD Length270 cmReference
4WD Length269 cmReference
Width137 cmReference
Height (ROPS)223 cmReference
2WD Shipping weight1000 kgReference
4WD Shipping weight1045 kgReference
Ground clearance38 cmReference

New Holland 1725 attachments

60" mid-mount mower deckReference
72" mid-mount mower deckReference
snowblowerReference
bladeReference
front-end loaderReference
backhoeReference

Electrical

GroundnegativeReference
Battery volts12Reference

Attachment overview

60" mid-mount mower deckReference
72" mid-mount mower deckReference
SnowblowerReference
BladeReference
Front-end loaderReference
BackhoeReference

New Holland 757C Backhoe

Backhoe typeNew Holland 757C BackhoeReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
