Tractor · 1996Unverified

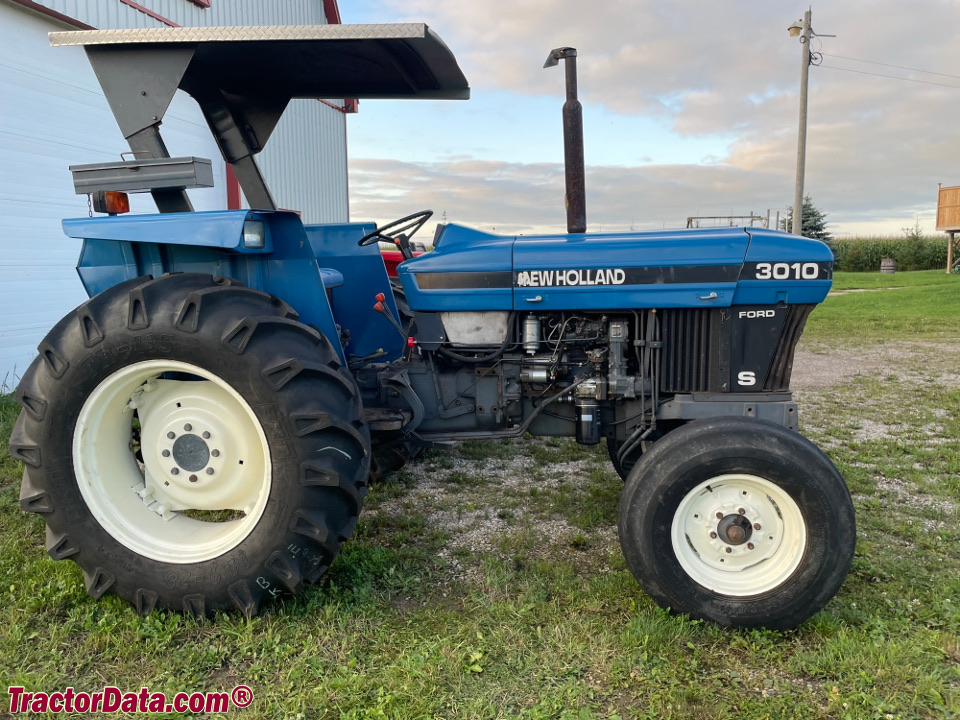

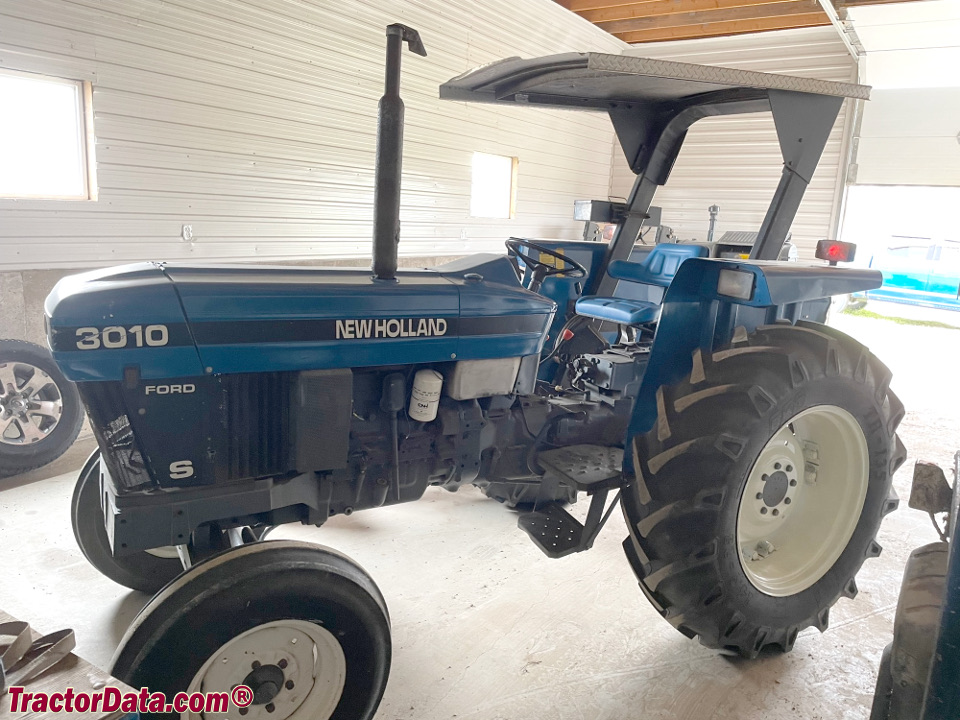

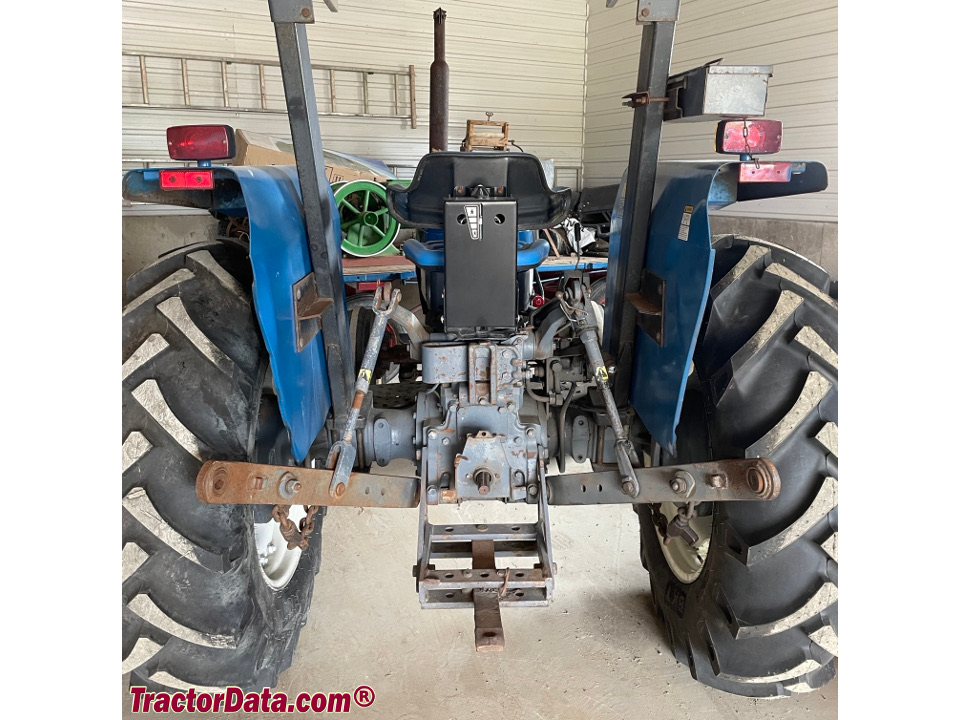

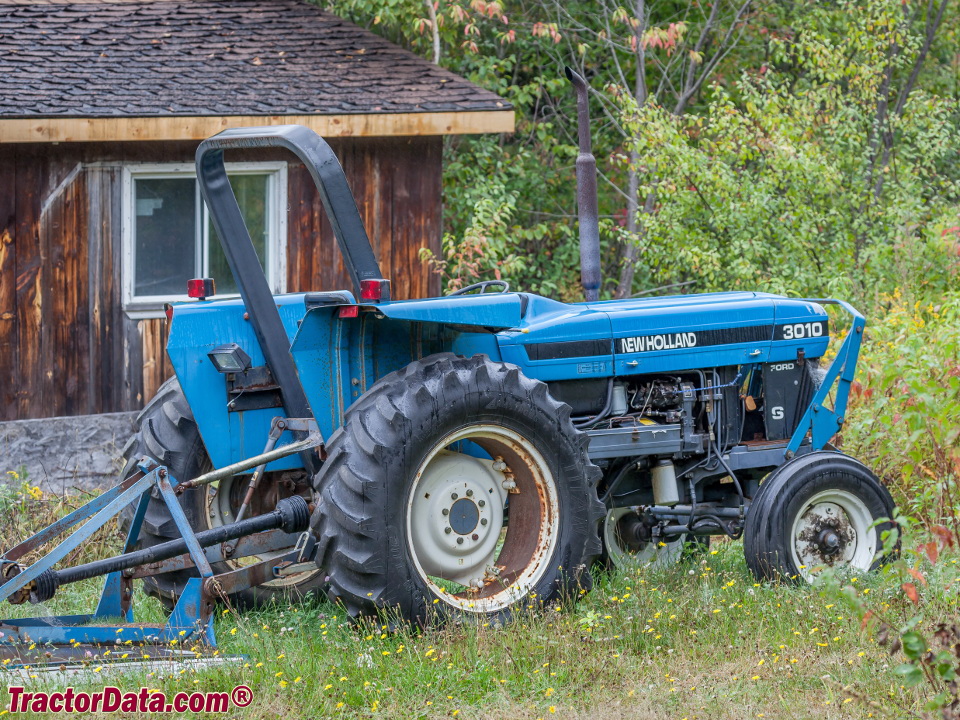

New Holland 3010
New Holland 3010 — Utility tractor · 42 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
42 hp
Weight
4956 to 5705 pounds
Hover a source tag to verify
Overview
ManufacturerNew HollandReference
Utility tractorReference
Built in Queretaro, MexicoReference
Two- or four-wheel driveReference
Power steeringReference
Wet disc brakesReference
Two-post ROPS.Reference
Engine
New Holland 2.7L 3-cyl dieselReference
Engine41.0 kWReference
New HollandReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement2.7 LReference
Bore/Stroke100 x 115 mmReference
Power41.0 kWReference
Compression17:1Reference
Rated RPM2500Reference
Idle RPM650-2800Reference
Firing order1-2-3Reference
Starter volts12Reference
Oil capacity7.3 LReference
Coolant capacity11.0 LReference
Intake valve clearance0.254 mmReference
Exhaust valve clearance0.356 mmReference
Transmission
8-speed constant meshReference
Typeconstant meshReference
Gears8 forward and 2 reverseReference
2WD Oil capacity32.2 LReference
4WD Oil capacity31.0 LReference
PTO & Hydraulics
PTO (claimed)31.3 kWReference
2WD Hydraulic system32.2 LReference
4WD Hydraulic system31.0 LReference
Typegear pumpReference
2WD Capacity32.2 LReference
4WD Capacity31.0 LReference
Pressure189.6 barReference
Pump flow32.6 lpmReference
Steering flow15.1 lpmReference
Steering cap.1.7 LReference
Steering press.100.0 barReference
Rear PTOindependentReference
Rear PTO Type540Reference
Capacities
Fuel59.8 LReference
Steering1.7 LReference
Front axle5.5 LReference
Front hubs1.2 LReference
Dimensions
Wheelbase200 cmReference
Weight4956 to 5705 poundsReference
Front tire7.50-16Reference
2WD Rear tire14.9-28Reference
2WD Standard tires (ag)Front: 7.50-16. Rear: 14.9-28Reference
2WD Standard tires (ag)Front: 9.5-24. Rear: 14.9-28Reference
2WD Length345 cmReference
4WD Length320 cmReference
2WD Width190 cmReference
4WD Width200 cmReference
2WD Operating weight2248 kgReference
4WD Operating weight2587 kgReference
2WD Clearance (front axle)44 cmReference
4WD Clearance (front axle)38 cmReference
2WD Clearance (drawbar)40 cmReference
4WD Clearance (drawbar)41 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps55Reference
Charging volts12Reference
Battery volts12Reference
Battery AH107Reference
New Holland 3010 Height
2WD Hood153 cmReference
4WD Hood146 cmReference
2WD ROPS231 cmReference
4WD ROPS234 cmReference
2WD Exhaust254 cmReference
4WD Exhaust255 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
