Tractor · 1996Unverified

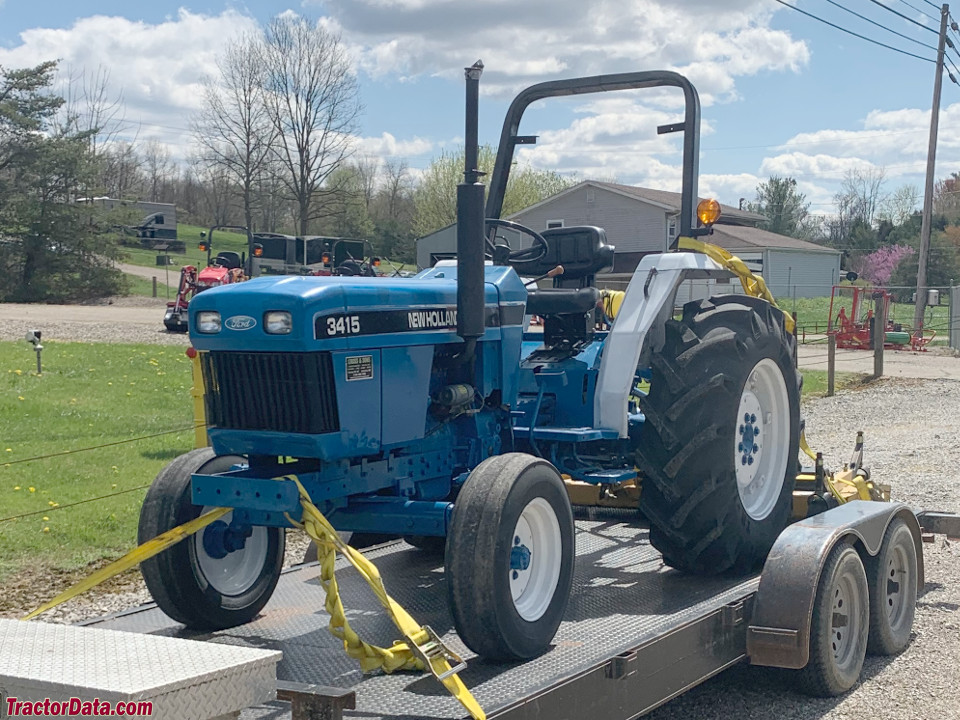

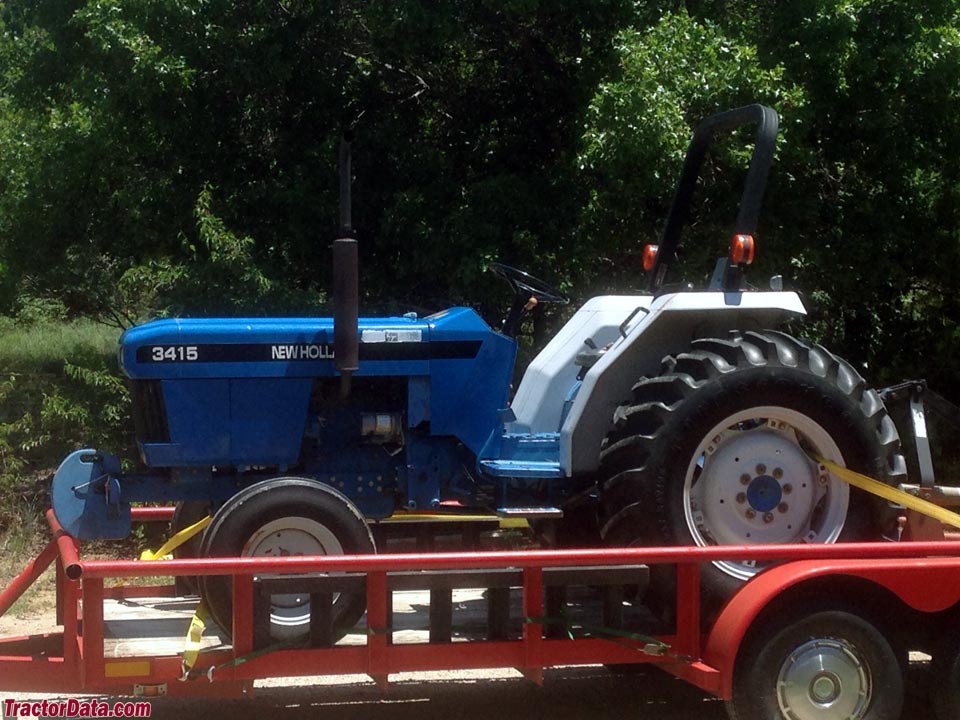

New Holland 3415
New Holland 3415 — Compact Utility tractor · 38 hp. Reference specifications; pending source verification.
The New Holland 3415 is a tractor model with a power rating of approximately 38 hp, positioning it at the lower end of its class. Produced from 1996 to 2003, this model features a 4-cylinder diesel liquid-cooled engine, paired with a two-wheel drive system and a 12-speed gearbox. The tractor's operating weight is listed as 1859 kg, and it is suitable for operations covering up to 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
38 hp
Weight
1859 kg
Catalogue coverage
Variants represented
2
Richest spec table
43 rows
Recorded power
38 hp
Recorded weight
1859 kg
Transmissions
12-speed
Production years
1996-2003
Verified variants
0
1 linked source document displayed
Hover a source tag to verify
Overview
DistributorNew HollandReference
ManufacturerShibauraReference
Compact Utility tractorReference
Built in JapanReference
Original price was $17,900 in 2000Reference
Two-wheel driveReference
Two-post ROPS.Reference
Engine
Shibaura 2.2L 4-cyl dieselReference
Fuel tank42.0 LReference
Engine32.8 kWReference
ShibauraReference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement2.2 LReference
Power32.8 kWReference
Starter volts12Reference
Transmission
12-speedReference
Gears12 forward and 4 reverseReference
PTO & Hydraulics
PTO (claimed)28.3 kWReference
Typeopen centerReference
Pump flow24.6 lpmReference
Rear TypeIReference
Rear lift1573 kgReference
Rear PTOliveReference
Rear PTO Type540Reference
Dimensions
Wheelbase189 cmReference
Weight1859 kgReference
Front tire6.00-16Reference
Rear tire13.6-28Reference
Ag front6.00-16Reference
Ag rear13.6-28Reference
3415 Serial Numbers
Location:left side of transmissionReference
1993UX20001Reference
1994UX20798Reference
1995UX21715Reference
1996UX22323Reference
1997UX22504Reference
1998UX22858Reference
1999UX23290Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
