Tractor · 1992Unverified

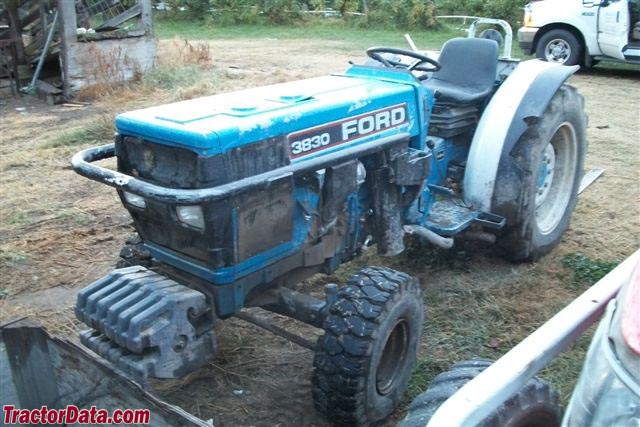

New Holland 3830
New Holland 3830 — Orchard/Vineyard tractor · 45 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
45 hp
Weight
3851 to 4035 pounds
Hover a source tag to verify
Overview
ManufacturerNew HollandReference
Orchard/Vineyard tractorReference
Original price was $23,200 in 1999Reference
Two- or four-wheel driveReference
Final drivesinboard planetaryReference
Differential lockmechanical rearReference
Power steeringReference
Mechanical wet disc brakesReference
Two-post mid-mount ROPS. Cab optional.Reference
Engine
Iveco 2.7L 3-cyl dieselReference
Fuel tank45.0 LReference
Engine41.0 kWReference
IvecoReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement2.7 LReference
Power41.0 kWReference
Compression17:1Reference
Rated RPM2500Reference
Firing order1-2-3Reference
StarterelectricReference
Starter volts12Reference
Oil capacity7.3 LReference
Coolant capacity12.0 LReference
Transmission
12-speed mechanical shuttleReference
Typemechanical shuttleReference
Gears12 forward and reverseReference
Clutch254mm dry discReference
Oil capacity42.7 LReference
Four synchronized gears in three ranges with synchronized mechanical shuttle.Reference
PTO & Hydraulics
PTO (claimed)33.6 kWReference
Typeopen centerReference
Pressure188.9 barReference
Valves2Reference
Pump flow41.6 lpmReference
Steering flow30.7 lpmReference
Steering press.70.0 barReference
Rear TypeIReference
Controlposition control and lower-link draft sensingReference
Rear lift1960 kgReference
Rear PTOindependentReference
Clutchdry discReference
Rear PTO Type540 (1.375)Reference
Dimensions
2WD Wheelbase184 cmReference
4WD Wheelbase191 cmReference
Weight3851 to 4035 poundsReference
Front tire5.50-16Reference
2WD Rear tire11.2-24Reference
2WD Standard tires (ag)Front: 5.50-16. Rear: 11.2-24Reference
4WD Standard tires (ag)Front: 6.00-16. Rear: 11.2-24Reference
2WD Length327 cmReference
4WD Length328 cmReference
Width124 cmReference
2WD Weight1746 kgReference
4WD Weight1830 kgReference
2WD Clearance (front axle)37 cmReference
4WD Clearance (front axle)21 cmReference
2WD Steering wheel131 cmReference
4WD Steering wheel127 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
ROPS Charging amps33Reference
Cab Charging amps65Reference
Battery volts12Reference
New Holland 3830 Height
2WD Hood118 cmReference
4WD Hood113 cmReference
2WD ROPS208 cmReference
4WD ROPS204 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
