Tractor · 1990Unverified
New Holland 3930
New Holland 3930 — 30 Series · 46 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
46 hp
Max power
28.5 kW
Weight
5157 to 6025 pounds
Hover a source tag to verify
Overview
ManufacturerNew HollandReference
Utility tractorReference
Built in Basildon, EnglandReference
Original price$24,400 (1999 2WD )Reference
Original price$29,900 (1999 4WD )Reference
Two- or four-wheel driveReference
Differential lockmechanical rearReference
Power steeringReference
Wet disc brakesReference
Two-post ROPS. Cab optional.Reference
Engine
Ford 3.3L 3-cyl dieselReference
Ford 3.2L 3-cyl dieselReference
ROPS Fuel tank65.5 LReference
Cab Fuel tank95.8 LReference
Drawbar (tested)28.5 kWReference
FordReference
dieselReference
3-cylinderReference
liquid-cooledReference
Original engine, used until 1995.Reference
Displacement3.3 LReference
Bore/Stroke112 x 112 mmReference
Compression16.3:1Reference
Rated RPM2000Reference
Starter volts12Reference
The 3.1-liter engine was introduced in 1995, tractor serial number BD81400.Reference
Displacement3.2 LReference
Bore/Stroke112 x 107 mmReference
Air cleanerdual paper elementsReference
Rated RPM2200Reference
turbocharged dieselReference
The turbocharged 3.1-liter engine was introduced in 1999.Reference
Power at rated engine speed34.2 kWReference
Max power28.5 kWReference
Power at rated engine speed33.0 kWReference
Max power26.2 kWReference
Power at rated engine speed34.0 kWReference
Max power27.8 kWReference
Power at rated engine speed34.5 kWReference
Max power27.7 kWReference
Power at rated engine speed39.2 kWReference
Transmission
8-speed gearReference
8-speed synchronized shuttleReference
TypegearReference
Gears8 forward and 2 reverseReference
Clutchdry discReference
Typesynchronized shuttleReference
Gears8 forward and reverseReference
PTO & Hydraulics
PTO (claimed)33.6 kWReference
PTO (claimed)38.8 kWReference
PTO (tested)39.2 kWReference
Typeopen centerReference
Typeclosed centerReference
Pressure172.4 barReference
Valves0 to 2 (open center)Reference
Valves1 to 4 (closed center)Reference
Pump flow29.1 lpmReference
Pump flow48.4 lpmReference
Steering flow13.6 lpmReference
Rear TypeII/IReference
Controlposition control with top link draft sensingReference
Rear lift1397 kgReference
Rear PTOindependentReference
Rear PTO Type540Reference
Engine RPM540@1800Reference
Engine RPM540@1755 (shuttle)Reference
Power at rated PTO speed32.5 kWReference
Power at rated PTO speed31.2 kWReference
Power at rated PTO speed30.7 kWReference
Power at rated PTO speed31.2 kWReference
Dimensions
2WD Wheelbase214 cmReference
4WD Wheelbase213 cmReference
Weight5157 to 6025 poundsReference
Front tire6.00-16Reference
Rear tire13.6-28Reference
Ag front6.00-16Reference
Ag rear13.6-28Reference
Length347 cmReference
Width176 cmReference
Ground clearance34 cmReference
2WD ROPS Shipping2339 kgReference
4WD ROPS Shipping2732 kgReference
4WD ROPS Operating2470 kgReference
New Holland 3930 attachments
front-end loaderReference
3930 Serial Numbers
Location:Upper right-hand side of transmissionReference
1990BC26239Reference
1991BC68791Reference
1992BD05932Reference
1993BD36207Reference
1994BD63909Reference
1995BD93327Reference
1996021649BReference
1997056056BReference
1998083357BReference
1999111612BReference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
ROPS Charging amps55 (early)Reference
ROPS Charging amps45 (late)Reference
Cab Charging amps70Reference
Battery CCA800Reference
Battery volts12Reference
Attachment overview

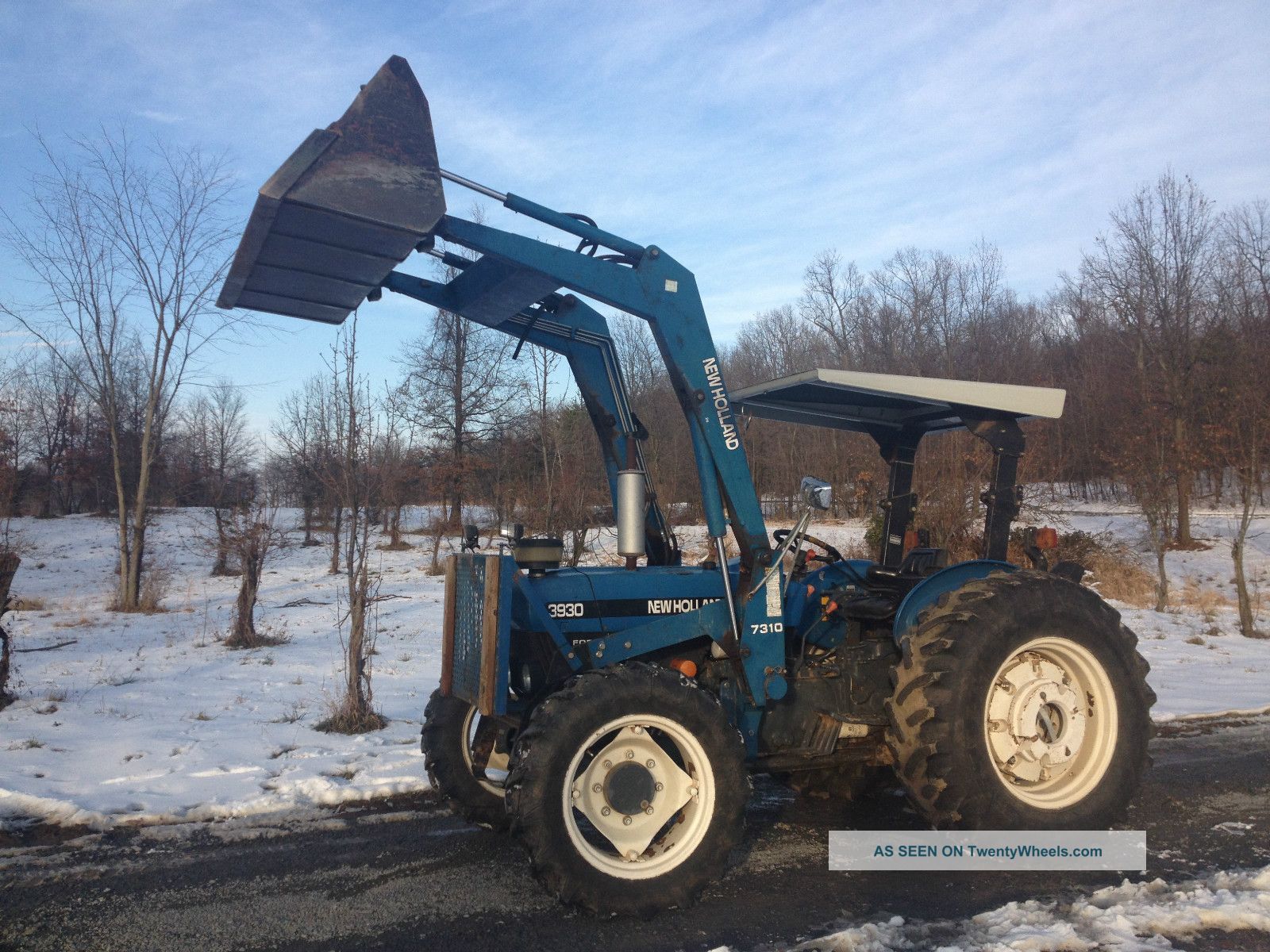

Ford 7209 loaderReference
Ford 7210 loaderReference
Ford 7310 loaderReference
Ford 7410 loaderReference
New Holland 3930 Height
ROPS231 cmReference
Cab243 cmReference
Exhaust214 cmReference
Test results
OECD 1644: 3.3L diesel 8x2 speed 4WDReference
OECD 1341: diesel 8x8 speed 4WDReference
OECD 1701: 3.1L diesel 8x2 speed 4WDReference
OECD 1702: 3.1L diesel 8x8 speed 4WDReference
OECD 1702S: 3.1L turbo-diesel 8x8 speed 4WDReference
3.3L diesel 8x2 speed 4WDApril 8 - 25, 1991Link: OCED Tractor Test 1644 fileReference
PTO performanceReference
Fuel use10.6 l/hourReference
Fuel use9.8 l/hourReference
Drawbar performanceReference
Fuel use11.0 l/hourReference
Gear 1H used for power test.Reference
Max pull2180 kgReference
Gear 2L used for pull test.Reference
Diesel 8x8 speed 4WDMarch 1991 - May 1991, Link: OCED Tractor Test 1341 fileReference
Max pull2193 kgReference
3.1L diesel 8x2 speed 4WDOctober 17 - 27, 1995Link: OCED Tractor Test 1701 fileReference
Fuel use11.4 l/hourReference
Max pull2279 kgReference
3.1L diesel 8x8 speed 4WDOctober 2 - 27, 1995Link: OCED Tractor Test 1702 fileReference
Fuel use12.1 l/hourReference
Fuel use10.2 l/hourReference
Fuel use11.7 l/hourReference
Max pull2032 kgReference
Gear 3L used for pull test.Reference
3.1L turbo-diesel 8x8 speed 4WD1998Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
