Tractor · 1996Unverified

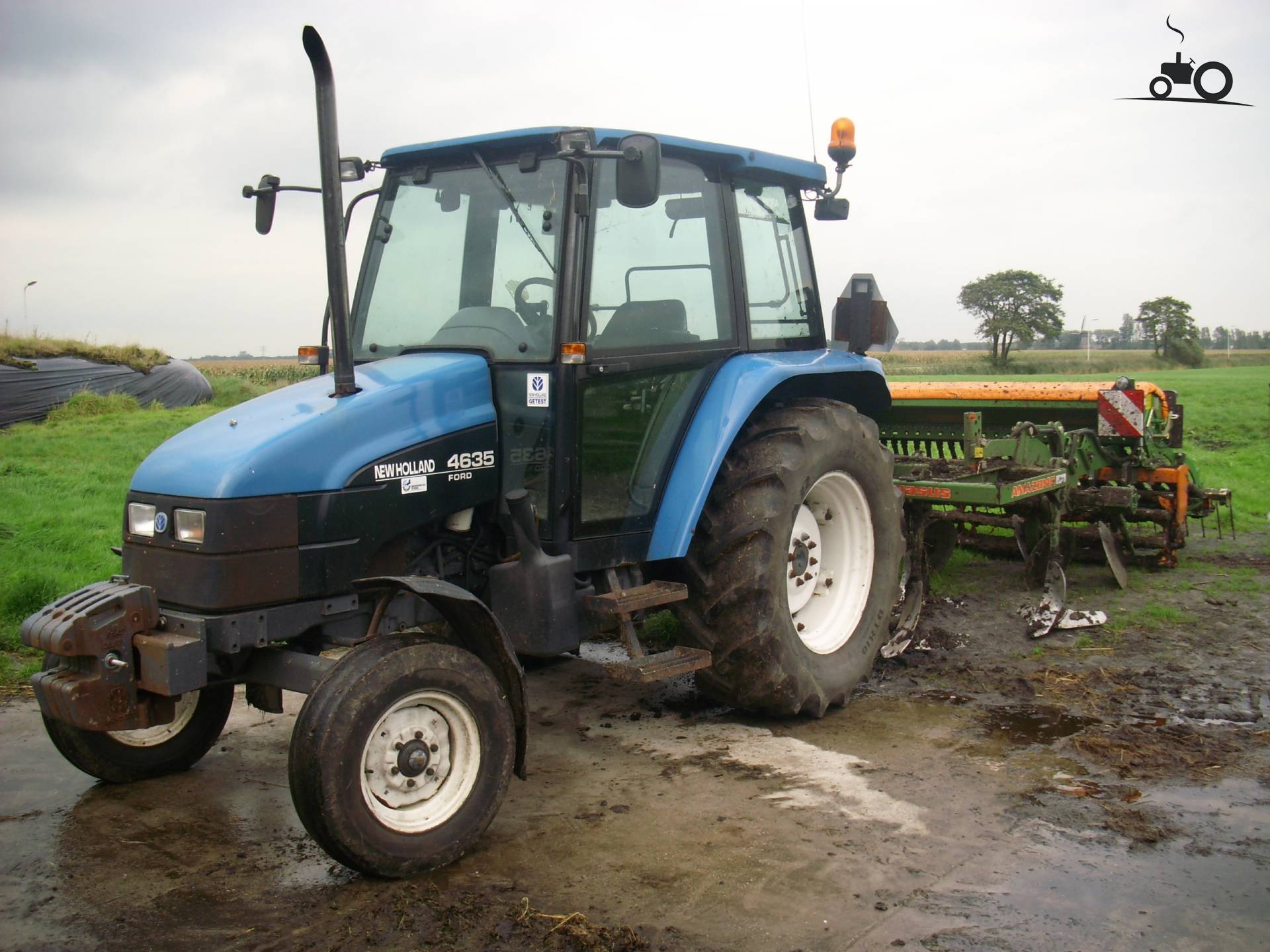

New Holland 4635
New Holland 4635 — 35 Series · 60 hp. Reference specifications; pending source verification.
The New Holland 4635 is a compact tractor, rated at 60 hp. Manufactured between 1996 and 1999, it features a 3-cylinder diesel liquid-cooled engine, with power transmission via a hydrostatic system to all four wheels. Its weight falls within the range of 7209 to 7584 pounds, and it is suited to tasks on around 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
60 hp
Weight
7209 to 7584 pounds
Catalogue coverage
Variants represented
2
Richest spec table
34 rows
Recorded power
60 hp
Recorded weight
3270 kg
Transmissions
12-speed
Production years
1996-1999
Verified variants
0
1 linked source document displayed
Hover a source tag to verify
Overview
ManufacturerNew HollandReference
Utility tractorReference
Built in ItalyReference
Two- or four-wheel driveReference
Steeringhydrostatic powerReference
Wet disc brakesReference
Two-post ROPS. Cab optional.Reference
Engine
Iveco 2.9L 3-cyl dieselReference
Fuel tank109.8 LReference
Engine44.7 kWReference
Iveco 8035.05Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement2.9 LReference
Bore/Stroke104 x 115 mmReference
Power44.7 kWReference
Rated RPM2500Reference
Transmission
12-speedReference
Gears12 forward and 4 reverseReference
Gears12 forward and reverseReference
PTO & Hydraulics
Typeopen centerReference
Pump flow53.0 lpmReference
Rear TypeIIReference
Rear PTOindependentReference
Rear PTO Type540Reference
Dimensions
Weight7209 to 7584 poundsReference
Front tire7.50-16Reference
Rear tire16.9-36Reference
Ag front7.50-16 (2WD)Reference
Ag front11.2R24 (4WD)Reference
Ag rear16.9-36Reference
Weight3270 kgReference
Weight3440 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
