Tractor · 1996Unverified

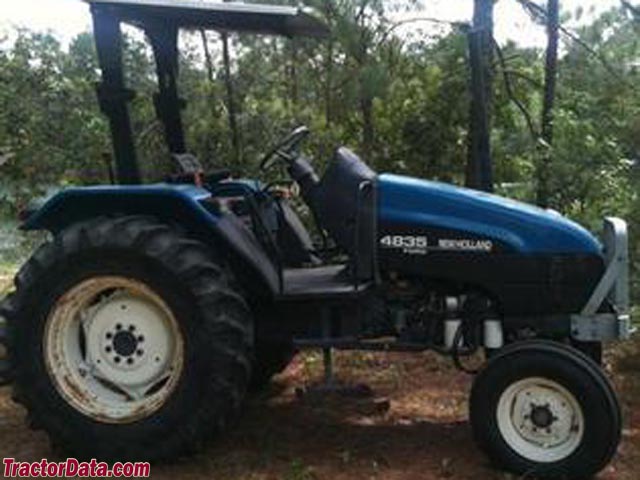

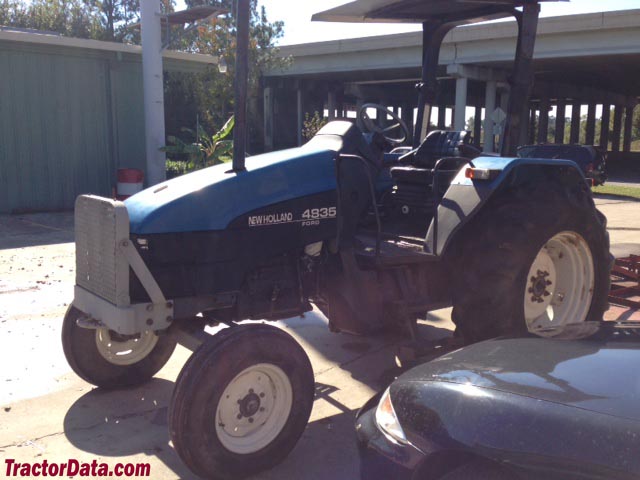

New Holland 4835

Name: New Holland 4835
Brand: New Holland

New Holland 4835 — 35 Series · 56 hp. Reference specifications; pending source verification.

The New Holland 4835 is a tractor model with a rated output of 56 hp, positioning it among the more compact options in its class. Manufactured between 1996 and 1999, this model features a 4-cylinder diesel liquid-cooled engine, which drives a four-wheel drive system through a powershift transmission. The listed weight of the tractor ranges from 5954 to 7056 pounds. It is designed for use in areas of approximately 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

56 hp

Weight

5954 to 7056 pounds

Catalogue coverage

Variants represented

Richest spec table

75 rows

Recorded power

56 hp

Recorded weight

2700 kg

Transmissions

12-speed partially synchronized

Production years

1996-1999

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerNew HollandReference

Utility tractorReference

Built in ItalyReference

Original price was $26,750 in 1999Reference

Two- or four-wheel driveReference

Power steeringReference

Hydraulic wet disc brakesReference

Two-post foldable ROPS. Cab optional with air-conditioning.Reference

Engine

Iveco 3.6L 4-cyl dieselReference

Fuel tank109.8 LReference

Engine48.5 kWReference

Iveco 8045.06Reference

dieselReference

4-cylinder 8-valveReference

liquid-cooledReference

Displacement3.6 LReference

Bore/Stroke100 x 115 mmReference

Power48.5 kWReference

Pre-heatingThermostartReference

Rated RPM2500Reference

Torque65.9 NmReference

Torque RPM1500Reference

Starter volts12Reference

Oil capacity11.7 LReference

Coolant capacity14.0 LReference

Coolant capacity16.0 LReference

Transmission

12-speed partially synchronizedReference

12-speed partiallly synchronized with sync shuttleReference

24-speed partial power shiftReference

TransmissionSynchroReference

Typepartially synchronizedReference

Gears12 forward and 4 reverseReference

Four gears in three ranges, plus reverse. Gear shifts are synchronized.Reference

TransmissionSynchro CommandReference

Typepartiallly synchronized with sync shuttleReference

Gears12 forward and reverseReference

Four gears in three ranges with left-hand reverser. Gear and shuttle shifts are synchronized.Reference

TransmissionDual CommandReference

Typepartial power shiftReference

Gears24 forward and 12 reverseReference

Four gears in three ranges with two-speed power shift and left-hand reverser. The Dual Command provides push-button shifting to lower gear at each speed.Reference

PTO & Hydraulics

PTO (claimed)41.8 kWReference

Typeopen centerReference

Valves2 to 3Reference

Pump flow54.9 lpmReference

Rear TypeIIReference

Controlmechanical lower-link draft sensingReference

Rear lift (at 24"/610mm)2595 kgReference

Rear PTOindependentReference

Clutchelectro-hydraulic wet discReference

Rear PTO Type540Reference

Dimensions

2WD Wheelbase234 cmReference

4WD Wheelbase231 cmReference

Weight5954 to 7056 poundsReference

Front tire7.50-16.6Reference

Rear tire16.9-30Reference

Ag front7.50-16.6Reference

Ag rear16.9-30Reference

Width184 cmReference

2WD ROPS Shipping weight2700 kgReference

4WD Cab Shipping weight3200 kgReference

Front tread142 to 213 cmReference

Rear tread152 to 213 cmReference

4835 Serial Numbers

19961078283Reference

19971104301Reference

19981129213Reference

FAQ: How to read a serial number table.Reference

Electrical

GroundnegativeReference

Charging systemalternatorReference

ROPS Charging amps45Reference

Cab Charging amps65Reference

Battery volts12Reference

New Holland 4835 Height

ROPS267 cmReference

ROPS213 cmReference

Cab247 cmReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
