Tractor · Unverified

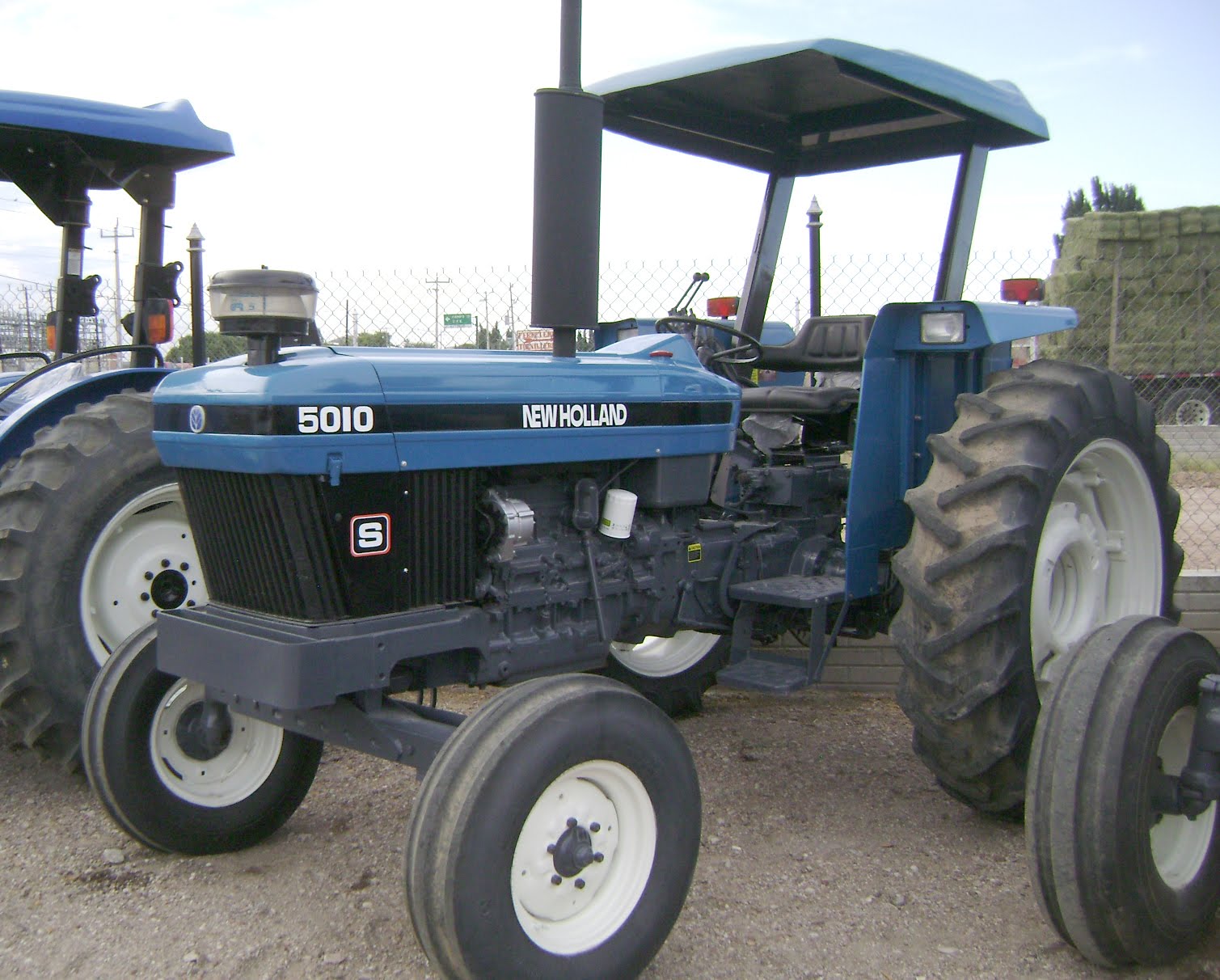

New Holland 5010
New Holland 5010 — Utility tractor · 70 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
70 hp
Weight
5286 to 6035 pounds
Hover a source tag to verify
Overview
ManufacturerNew HollandReference
Utility tractorReference
Built in Queretaro, MexicoReference
Drive4x2 2WDReference
Drive4x4 MFWD 4WD (optional)Reference
Steeringhydrostatic powerReference
Wet disc brakesReference
Two-post ROPS.Reference
Engine
New Holland 3.6L 4-cyl dieselReference
Engine52.2 kWReference
New HollandReference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.6 LReference
Bore/Stroke100 x 115 mmReference
Power52.2 kWReference
Compression17:1Reference
Rated RPM2500Reference
Idle RPM650-2800Reference
Firing order1-3-4-2Reference
Starter volts12Reference
Oil capacity11.6 LReference
Coolant capacity11.7 LReference
Intake valve clearance0.254 mmReference
Exhaust valve clearance0.356 mmReference
Transmission
8-speed constant meshReference
Typeconstant meshReference
Gears8 forward and 2 reverseReference
Oil capacity32.2 LReference
Oil capacity34.1 LReference
Capacities
Fuel59.8 LReference
Steering2.0 LReference
Front axle5.5 LReference
Front hubs1.2 LReference
PTO & Hydraulics
Hydraulic system32.2 LReference
Hydraulic system34.1 LReference
Typegear pumpReference
Capacity32.2 LReference
Capacity34.1 LReference
Pressure189.6 barReference
Pump flow32.6 lpmReference
Steering flow15.1 lpmReference
Steering cap.2.0 LReference
Steering press.100.0 barReference
Rear PTOindependentReference
Rear PTO Type540Reference
Dimensions
Wheelbase215 cmReference
Weight5286 to 6035 poundsReference
Front tire10.00-16Reference
Rear tire16.9-30 (2WD)Reference
Standard tires (ag)Front: 10.00-16. Rear: 16.9-30 (2WD)Reference
Standard tires (ag)Front: 11.2-24. Rear: 16.9-30 (4WD)Reference
Length346 cmReference
Width195 cmReference
Width215 cmReference
Weight2397 kgReference
Weight2737 kgReference
Clearance (front axle)45 cmReference
Clearance (front axle)40 cmReference
Clearance (drawbar)43 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps55Reference
Charging volts12Reference
Battery volts12Reference
Battery AH107Reference
New Holland 5010 Height
Hood153 cmReference
Hood148 cmReference
ROPS248 cmReference
ROPS237 cmReference
Exhaust254 cmReference
Exhaust258 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
