Tractor · 1992Unverified

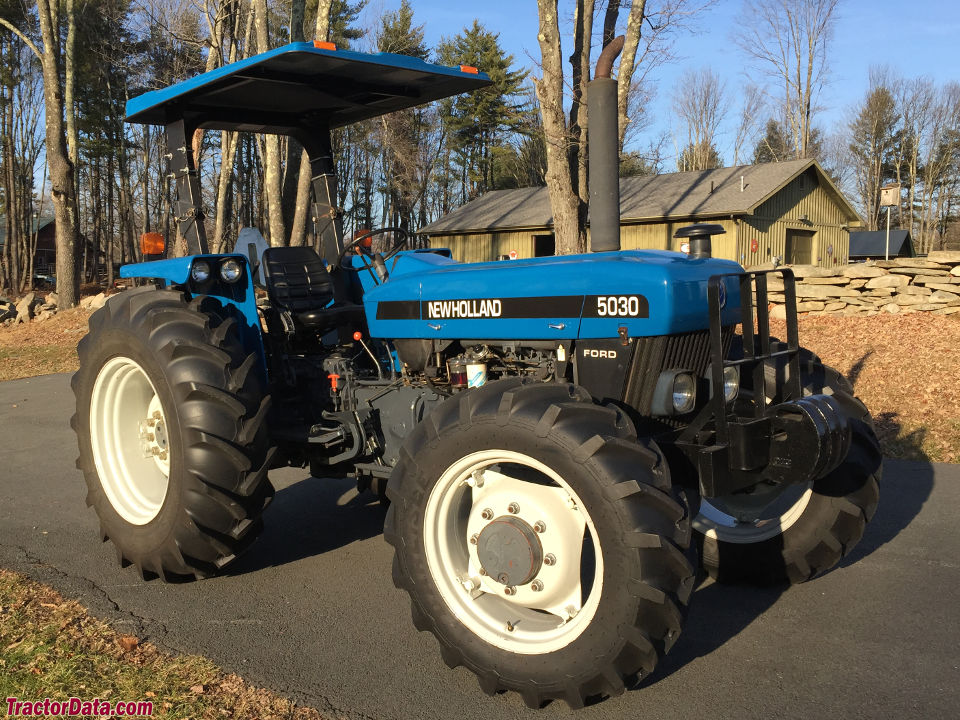

New Holland 5030

Name: New Holland 5030
Brand: New Holland

New Holland 5030 — 30 Series · 64 hp. Reference specifications; pending source verification.

The New Holland 5030 is a compact tractor model with a rated output of 64 hp. It was manufactured from 1992 to 1998 and features a 4-cylinder diesel liquid-cooled engine. This engine drives through a powershift transmission to four-wheel drive, and the tractor's listed weight falls within the range of 5547 to 6415 pounds. The New Holland 5030 is suitable for use on areas of up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

64 hp

Max power

40.1 kW

Weight

5547 to 6415 pounds

Catalogue coverage

Variants represented

Richest spec table

98 rows

Recorded power

64 hp

Transmissions

8-speed gear

Production years

1992-1998

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerNew HollandReference

Utility tractorReference

Built in Basildon, EnglandReference

Original price was $25,500 in 1998Reference

Two- or four-wheel driveReference

Differential lockmechanical rearReference

Power steeringReference

Differential wet disc brakesReference

Two-post ROPS. Cab optional.Reference

Engine

Ford 4.2L 4-cyl dieselReference

Drawbar (tested)40.1 kWReference

FordReference

dieselReference

4-cylinderReference

liquid-cooledReference

Displacement4.2 LReference

Bore/Stroke112 x 107 mmReference

Air cleanerdual paper elementsReference

Compression16.3:1Reference

Rated RPM2200Reference

Starter volts12Reference

Coolant capacity12.5 LReference

Power at rated engine speed47.4 kWReference

Max power40.1 kWReference

Transmission

8-speed gearReference

8-speed mechanical shuttleReference

16-speed two-speed power shiftReference

TypegearReference

Gears8 forward and 2 reverseReference

Typemechanical shuttleReference

Gears8 forward and reverseReference

Four gears in two ranges with left-hand shuttle.Reference

TransmissionDual PowerReference

Typetwo-speed power shiftReference

Gears16 forward and 8 reverseReference

PTO & Hydraulics

PTO (claimed)46.2 kWReference

PTO (tested)47.4 kWReference

Hydraulic system48.1 LReference

Typeopen centerReference

Typeclosed centerReference

Capacity48.1 LReference

Valves2 to 4Reference

Pump flow30.3 lpmReference

Pump flow54.5 lpmReference

Steering flow13.6 lpmReference

Rear TypeII/IReference

Controltop-link draft sensingReference

Rear lift1397 kgReference

Rear PTOindependentReference

Rear PTO Type540 (1.375)Reference

Engine RPM540@1800Reference

Power at rated PTO speed41.9 kWReference

Capacities

ROPS Fuel65.5 LReference

Cab Fuel95.8 LReference

Dimensions

2WD Wheelbase227 cmReference

4WD Wheelbase226 cmReference

Weight5547 to 6415 poundsReference

Front tire7.50-16Reference

Rear tire13.6-36Reference

Ag front7.50-16Reference

Ag rear13.6-36Reference

2WD Length364 cmReference

4WD Length381 cmReference

Width176 cmReference

Ground clearance47 cmReference

2WD ROPS Shipping2516 kgReference

4WD ROPS Shipping2909 kgReference

Operating2716 kgReference

Ballasted3742 kgReference

New Holland 5030 attachments

front-end loaderReference

5030 Serial Numbers

Location:Serial number decal inside the hood panel.Reference

1992BD08911Reference

1993BD29691Reference

1994BD64266Reference

1995BD87933Reference

1996021901BReference

1997056392BReference

1998083357BReference

1999111612BReference

FAQ: How to read a serial number table.Reference

Electrical

GroundnegativeReference

Charging systemalternatorReference

ROPS Charging amps55 (early)Reference

ROPS Charging amps45 (late)Reference

Cab Charging amps70Reference

Battery CCA800Reference

Battery volts12Reference

New Holland 5030 Height

ROPS251 cmReference

Cab251 cmReference

Exhaust258 cmReference

Test results

Diesel 16-speed 4WDOctober 4 - 25, 1995Link: OCED Tractor Test 1704 fileReference

PTO performanceReference

Fuel use15.9 l/hourReference

Fuel use13.6 l/hourReference

Drawbar performanceReference

Gear 6L used for power test.Reference

Max pull3520 kgReference

Gear 3L used for pull test.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
