Tractor · 1982Unverified

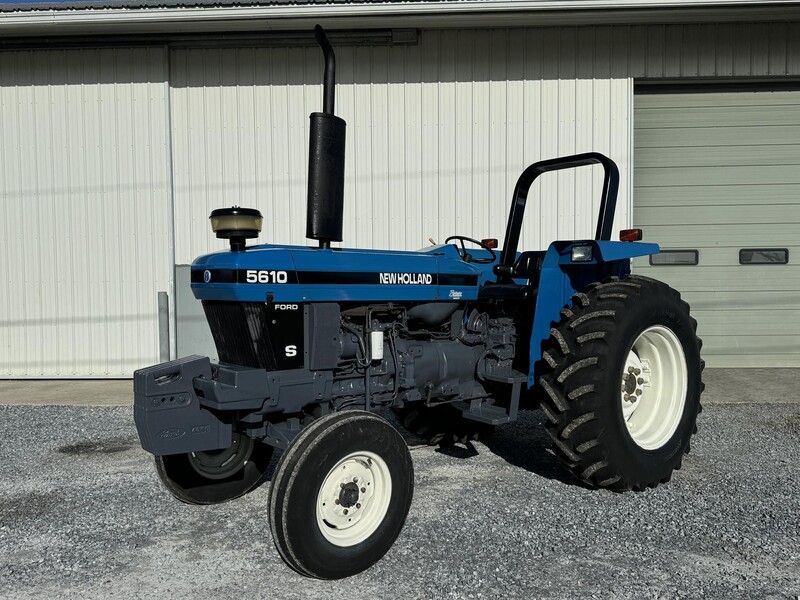

New Holland 5610
New Holland 5610 — Utility tractor · 72 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
72 hp
Max power
39.8 kW
Weight
5695 to 6300 pounds
Hover a source tag to verify
Overview
ManufacturerNew HollandReference
Utility tractorReference
Original price was $24,500 in 1993Reference
Two- or four-wheel driveReference
Differential lockmechanical rearReference
Power steeringReference
Differential mechanical wet disc brakesReference
Two-post fixed ROPS. Cab optional with air-conditioning.Reference
Engine
Ford 4.2L 4-cyl dieselReference
Engine (gross)53.7 kWReference
Engine51.1 kWReference
Drawbar (tested)39.8 kWReference
FordReference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.2 LReference
Bore/Stroke112 x 107 mmReference
Power51.1 kWReference
Power (gross)53.7 kWReference
Air cleanerdryReference
Compression16.3:1Reference
Rated RPM2100Reference
Torque260.4 NmReference
Starter volts12Reference
Oil capacity8.5 LReference
Coolant capacity12.8 LReference
Power at rated engine speed46.6 kWReference
Max power39.8 kWReference
Power at rated engine speed46.7 kWReference
Max power39.5 kWReference
Transmission
8-speedReference
8-speed synchromeshReference
16-speed partial power shiftReference
16-speed synchromesh partial power shiftReference
TransmissionDual-rangeReference
Gears8 forward and 2 reverseReference
Clutch305mm dry discReference
TypesynchromeshReference
Gears8 forward and 4 reverseReference
TransmissionDual PowerReference
Typepartial power shiftReference
Gears16 forward and 4 reverseReference
The Dual Power adds a shift-on-the-move to an under-speed on the basic 8/2 gear transmission.Reference
Typesynchromesh partial power shiftReference
Gears16 forward and 8 reverseReference
A shift-on-the-move under-speed added to the 8/4 synchromesh transmission.Reference
PTO & Hydraulics
PTO (claimed)46.2 kWReference
PTO (tested)46.7 kWReference
Hydraulic system56.8 LReference
Typeopen centerReference
Capacity56.8 LReference
Pressure172.4 barReference
Valves1Reference
Pump flow36.7 lpmReference
Pump flow68.9 lpmReference
Steering flow13.6 lpmReference
Rear TypeII/IReference
Controlposition and top-link draft controlReference
Rear lift (at 24"/610mm)1415 kgReference
Rear lift (at 24"/610mm)1832 kgReference
Rear PTOindependentReference
Rear PTO Type540Reference
Rear PTO Type540/1000Reference
Engine RPM540@1902Reference
Engine RPM1000@1902Reference
Power at rated PTO speed45.2 kWReference
Power at rated PTO speed44.7 kWReference
Capacities
Fuel79.5 LReference
Dimensions
2WD Wheelbase222 cmReference
4WD Wheelbase225 cmReference
Weight5695 to 6300 poundsReference
Front tire7.50-16Reference
Rear tire16.9-30Reference
Ag front7.50-16 (2WD)Reference
Ag front11.2-24 (4WD)Reference
Ag rear16.9-30Reference
Ag front7.50-18 (2WD)Reference
Ag front10.00-16 (2WD)Reference
Ag front12.4-24 (4WD)Reference
Ag front13.6-24 (4WD)Reference
Ag front14.9-24 (4WD)Reference
Ag rear18.4-30Reference
Ag rear16.9-34Reference
Ag rear18.4-34Reference
Ag rear15.5-38Reference
Ag rear16.9-38Reference
Length368 cmReference
Width174 cmReference
Height (ROPS)243 cmReference
Height (cab)270 cmReference
Ground clearance46 cmReference
Front tread132 to 204 cmReference
Rear tread152 to 203 cmReference
Rear tread142 to 228 cmReference
Shipping2583 kgReference
2WD ROPS Operating2857 kgReference
Ballasted4399 kgReference
New Holland 5610 attachments
front-end loaderReference
5610 Serial Numbers
Location:Transmission, top rightReference
1982C682000Reference
1983C694500Reference
1984C707400Reference
1985C732600Reference
1986C750422Reference
1987C763288Reference
1988BB31777Reference
1989BB80620Reference
1990BC26239Reference
1991BC68791Reference
1992BD02482Reference
1993BD37479Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps32 (Series I)Reference
Charging amps51 (Series II ROPS)Reference
Charging amps75 (Series II Cab)Reference
Battery volts12Reference
Battery AH128Reference
Attachment overview
Ford 777B loaderReference
Ford 777D loaderReference
Ford 777F loaderReference
Ford 7210 loaderReference
Three loaders were available. The 777B was available for two-wheel drive tractors. The 777D could be fitted to 2WD models with ROPS. The 777F loader fit four-wheel drive tractors with ROPS or cab.Reference
Test results
NTTL 1428: diesel 16x4 4WDReference
NTTL 1429: diesel 16x8 2WDReference
Diesel 16x4 4WDMarch 25 - April 19, 1982Link: Nebraska Tractor Test 1428 fileReference
PTO performanceReference
Fuel use15.9 l/hourReference
Fuel use14.8 l/hourReference
Drawbar performanceReference
Gear 6L used for power test.Reference
Max pull3360 kgReference
Gear 3L used for pull test.Reference
Diesel 16x8 2WDApril 5 - May 6, 1982Link: Nebraska Tractor Test 1429 fileReference
Fuel use15.5 l/hourReference
Max pull3437 kgReference
Gear 2H used for pull test.Reference
Speeds
With 18.4x34 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
