Backhoe Loader · 1996Unverified

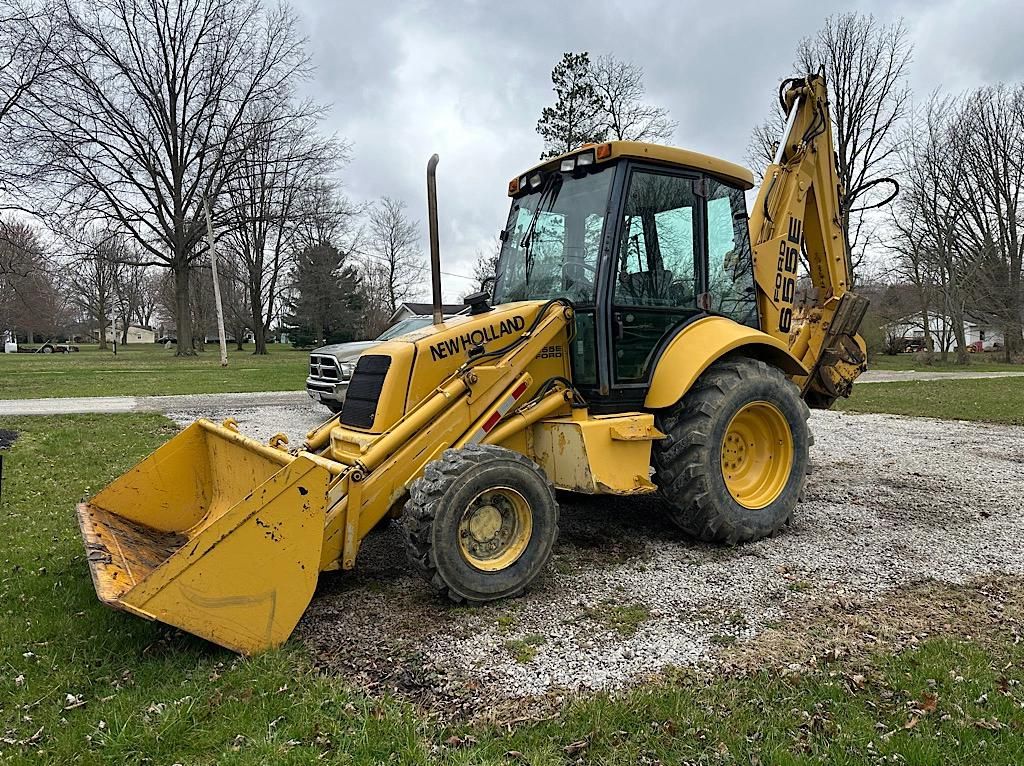

New Holland 655E
New Holland 655E — Backhoe loader tractor · 90 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
90 hp
Weight
14241 to 16005 pounds
Hover a source tag to verify
Overview
ManufacturerNew HollandReference
Backhoe loader tractorReference
Two- or four-wheel driveReference
Final drivesplanetaryReference
Differential lockmechanicalReference
Power steeringReference
Hydraulic wet disc brakesReference
Four-post ROPS/FOPS. Cab optional with air-conditioning.Reference
Engine
New Holland 5.0L 4-cyl dieselReference
Engine (gross)67.1 kWReference
Engine (net)66.4 kWReference
New Holland BSD 450Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement5.0 LReference
Bore/Stroke112 x 127 mmReference
Power (net)66.4 kWReference
Power (gross)67.1 kWReference
Air cleanerdual dry elementReference
Pre-heatingether injectionReference
Pre-heatingblock heaterReference
Compression17.5:1Reference
Torque336.3 NmReference
Torque RPM1400Reference
StarterelectricReference
Starter volts12Reference
Oil capacity17.0 LReference
Coolant capacity23.8 LReference
Transmission
4-speed power shuttleReference
Typepower shuttleReference
Gears4 forward and reverseReference
Capacities
Fuel106.0 LReference
PTO & Hydraulics
Hydraulic system137.0 LReference
Typeopen centerReference
Capacity137.0 LReference
Pressure196.5 barReference
Pump flow143.8 lpmReference
Dimensions
2WD Wheelbase219 cmReference
4WD Wheelbase217 cmReference
Weight14241 to 16005 poundsReference
Front tire11L-16Reference
Rear tire19.5Lx24Reference
Industrial front11L-16 (2WD)Reference
Industrial front12-16.5 (4WD)Reference
Industrial rear19.5Lx24Reference
Industrial front14-17.5 (4WD)Reference
Industrial front10.5/80-18 (4WD)Reference
Industrial rear16.9x28Reference
Length718 cmReference
Width226 cmReference
Height (ROPS)284 cmReference
Height (backhoe)398 cmReference
2WD ROPS Weight6459 kgReference
4WD Cab extendable Weight7259 kgReference
Ground clearance48 cmReference
2WD to inches 182 to 0 cm Front tread72Reference
4WD to inches 187 to 0 cm Front tread74Reference
Rear tread172 to 0 cmReference
Backhoe & Loader
Dig depth472 cmReference
Dump angle114 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps70Reference
Batteries1Reference
Batteries2Reference
Battery CCA960Reference
Battery volts12Reference
Attachment overview
Front-end loaderReference
BackhoeReference
New Holland Backhoe
Backhoe typeNew Holland BackhoeReference
Transport height398 cmReference
Digging depth472 cmReference
2-Foot flat digging depth469 cmReference
8-Foot flat digging depth434 cmReference
Reach from pivot594 cmReference
Loading height386 cmReference
Bucket Rotation160°Reference
Swing Arc180°Reference
Bucket force5533 kgReference
Dipperstick force3488 kgReference
New Holland Xtra-Vator II Backhoe
Backhoe typeNew Holland Xtra-Vator II BackhoeReference
Digging depth (retracted stick)472 cmReference
Digging depth (extended stick)591 cmReference
2-Foot flat digging depth (retracted stick)469 cmReference
2-Foot flat digging depth (extended stick)586 cmReference
8-Foot flat digging depth (retracted stick)436 cmReference
8-Foot flat digging depth (extended stick)561 cmReference
Reach from pivot (retracted stick)594 cmReference
Reach from pivot (extended stick)703 cmReference
Loading height (retracted stick)386 cmReference
Loading height (extended stick)459 cmReference
Bucket Rotation160°Reference
Swing Arc180°Reference
Bucket force (retracted stick)5266 kgReference
Bucket force (extended stick)5266 kgReference
Dipperstick force (retracted stick)3329 kgReference
Dipperstick force (extended stick)2363 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
