Tractor · 1994Unverified

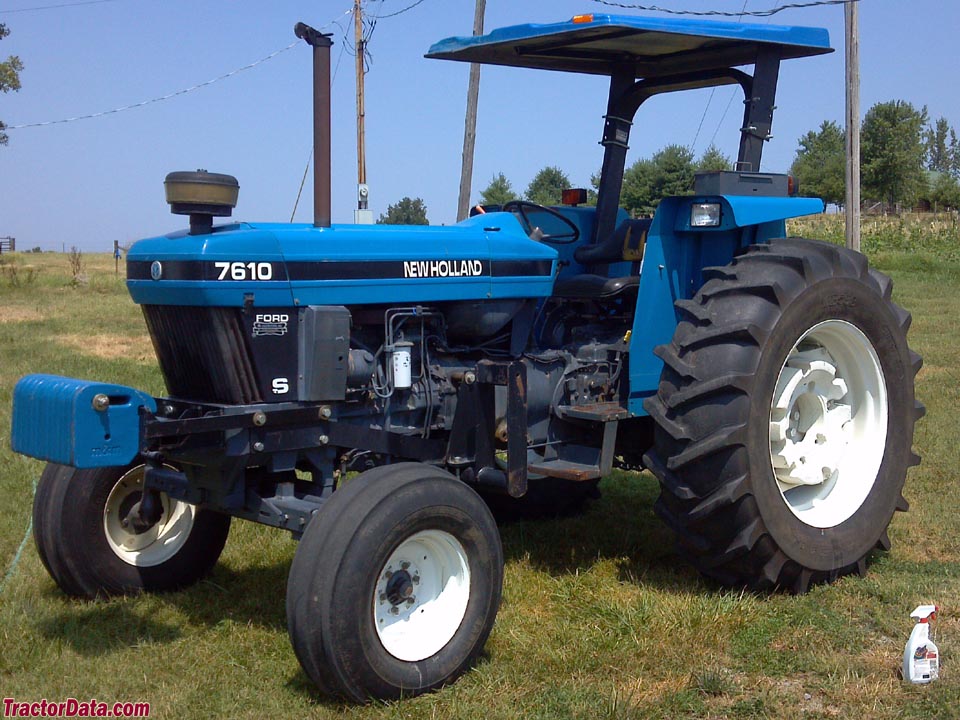

New Holland 7610S
New Holland 7610S — 10S Series · 86 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
86 hp
Weight
5935 to 6575 pounds
Hover a source tag to verify
Overview
ManufacturerNew HollandReference
Utility tractorReference
Built in Queretaro, MexicoReference
Original price$31,500 (2000)Reference
Two- or four-wheel driveReference
Steeringhydrostatic powerReference
Wet disc brakesReference
Two-post ROPS.Reference
Engine
Ford 5.0L 4-cyl dieselReference
Engine70.8 kWReference
FordReference
turbocharged dieselReference
4-cylinderReference
liquid-cooledReference
Displacement5.0 LReference
Bore/Stroke112 x 127 mmReference
Power70.8 kWReference
Compression17.5:1Reference
Rated RPM2100Reference
Firing order1-3-4-2Reference
Starter volts12Reference
Oil capacity11.4 LReference
Coolant capacity13.0 LReference
Intake valve clearance0.406 mmReference
Exhaust valve clearance0.483 mmReference
Transmission
8-speed unsynchronized gearReference
16-speed two-speed power shiftReference
Typeunsynchronized gearReference
Gears8 forward and 2 reverseReference
Four gears, plus reverse, in two ranges. Tractor must be stopped, and clutch used, before shifting gear or range.Reference
TransmissionDual PowerReference
Typetwo-speed power shiftReference
Gears16 forward and 4 reverseReference
PTO & Hydraulics
PTO (claimed)64.1 kWReference
Typegear pumpReference
Pressure172.4 barReference
Valves2Reference
Pump flow36.7 lpmReference
Steering flow36.3 lpmReference
Steering cap.2.2 LReference
Rear TypeIIReference
Controlposition control with top-link draft sensingReference
Rear lift1832 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000Reference
Engine RPM540@1900Reference
Engine RPM1000@2060Reference
Capacities
Fuel81.4 LReference
Fuel50.0 LReference
Steering2.2 LReference
Dimensions
2WD Wheelbase222 cmReference
4WD Wheelbase225 cmReference
Weight5935 to 6575 poundsReference
Front tire7.50-16Reference
Rear tire16.9-30Reference
Ag front7.50-16 (2WD)Reference
Ag front14.9x24 (4WD)Reference
Ag rear16.9-30Reference
2WD Length368 cmReference
4WD Length388 cmReference
Height (ROPS)243 cmReference
2WD Weight2692 kgReference
4WD Weight2982 kgReference
2WD Ground clearance46 cmReference
4WD Ground clearance45 cmReference
7610S Serial Numbers
199425000Reference
1995251435Reference
1996252558Reference
1997253609Reference
1998255857Reference
1999258109Reference
2000259472Reference
2001260543Reference
2002261969Reference
2003263610Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps55Reference
Charging volts12Reference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
