Tractor · 2007Unverified

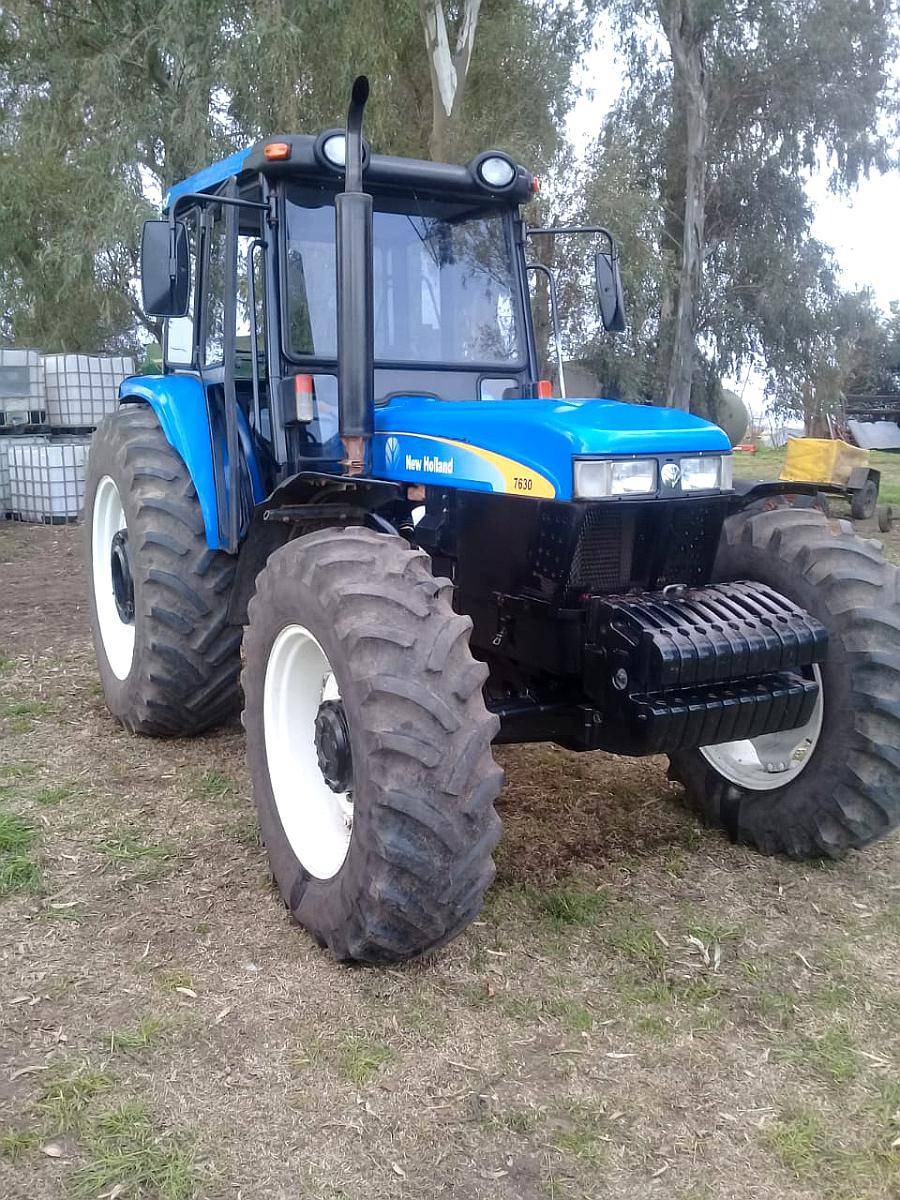

New Holland 7630
New Holland 7630 — 30 Series · 106 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
106 hp
Weight
3630 kg
Hover a source tag to verify
Overview
ManufacturerNew HollandReference
Utility tractorReference
Built in Curitiba, BrazilReference
Four-wheel driveReference
Steeringhydrostatic powerReference
Mechanical wet disc brakesReference
Two-post ROPS with canopy.Reference
Engine
New Holland 4.5L 4-cyl dieselReference
Fuel tank169.9 LReference
Engine79.0 kWReference
New HollandReference
turbocharged dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.5 LReference
Bore/Stroke104 x 132 mmReference
Power79.0 kWReference
Air cleanerdual dry typeReference
Rated RPM2200Reference
Torque430.1 NmReference
Torque RPM1400Reference
Starter volts12Reference
Oil capacity10.0 LReference
Transmission
16-speed constant meshReference
TransmissionDual PowerReference
Typeconstant meshReference
Gears16 forward and 4 reverseReference
Clutch14-inch cerametalicReference
PTO & Hydraulics
Typeopen centerReference
Pressure182.0 barReference
Valves2Reference
Pump flow34.8 lpmReference
Rear TypeIIReference
Controltop link sensingReference
Rear lift (at 24"/610mm)3949 kgReference
Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Engine RPM540@1900Reference
Dimensions
Wheelbase227 cmReference
Weight3630 kgReference
Length411 cmReference
Height (exhaust)286 cmReference
Front tread154 to 224 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
