Tractor · 1994Unverified

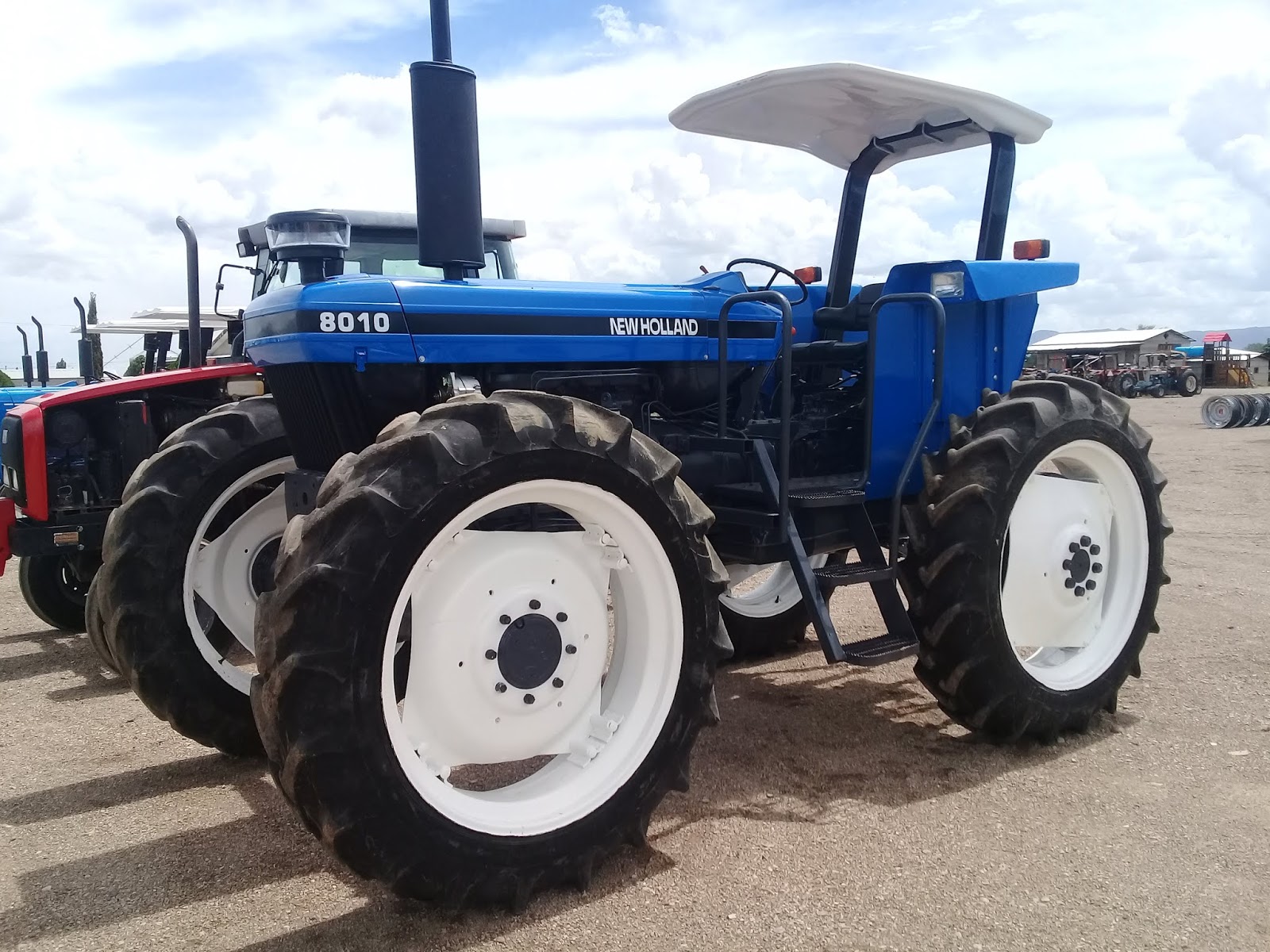

New Holland 8010
New Holland 8010 — 10S Series · 96 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
96 hp
Hover a source tag to verify
Overview
ManufacturerNew HollandReference
Utility tractorReference
Original price was $40,000 in 2000Reference
Two- or four-wheel driveReference
Steeringhydrostatic powerReference
Wet disc brakesReference
ROPS.Reference
Engine
Ford 7.5L 6-cyl dieselReference
Fuel tank111.7 LReference
FordReference
dieselReference
6-cylinderReference
liquid-cooledReference
Displacement7.5 LReference
Bore/Stroke112 x 127 mmReference
Starter volts12Reference
Transmission
8-speed unsynchronized gearReference
16-speed two-speed power shiftReference
Typeunsynchronized gearReference
Gears8 forward and 2 reverseReference
Four gears, plus reverse, in two ranges. Tractor must be stopped, and clutch used, before shifting gear or range.Reference
TransmissionDual PowerReference
Typetwo-speed power shiftReference
Gears16 forward and 4 reverseReference
PTO & Hydraulics
PTO (claimed)71.6 kWReference
TypeclosedReference
Valves2Reference
Pump flow65.9 lpmReference
Rear TypeIIReference
Rear PTOindependentReference
Rear PTO Type540, 1000Reference
Dimensions
Front tire27.9x9-15Reference
Rear tire16.9-24Reference
Ag front27.9x9-15Reference
Ag rear16.9-24Reference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
