Tractor · 2002Unverified

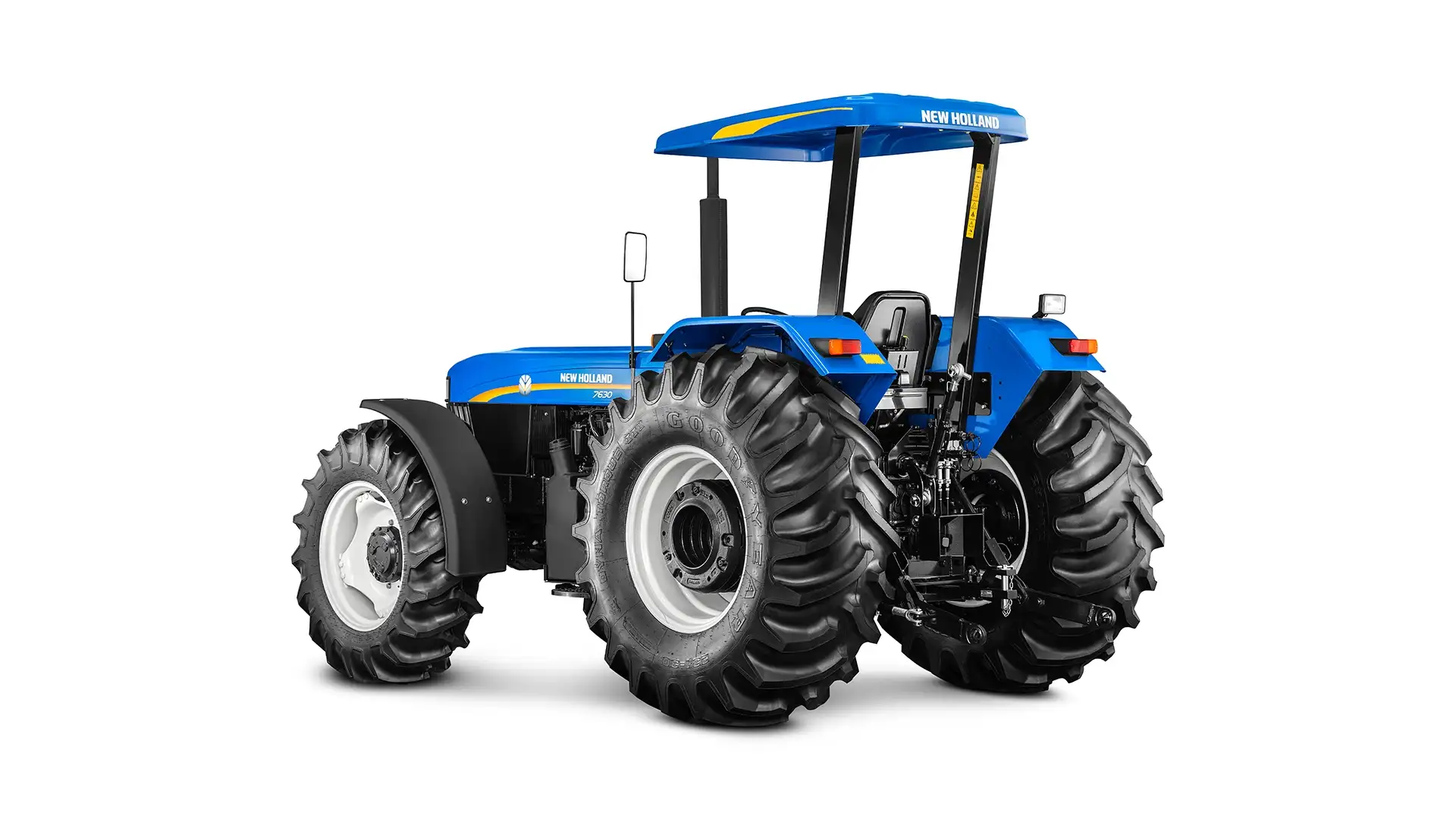

New Holland 8030 S100

Name: New Holland 8030 S100
Brand: New Holland

New Holland 8030 S100 — 30 Series · 102 hp. Reference specifications; pending source verification.

The New Holland 8030 S100 is a tractor with a rated power of 102 hp, which is a mid-range figure for its class. It was manufactured from 2002 to 2007. The tractor features a 6-cylinder diesel liquid-cooled engine and four-wheel drive with a hydrostatic transmission. Its operating weight is listed as 3840 kg.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

102 hp

Weight

3840 kg

Catalogue coverage

Variants represented

Richest spec table

71 rows

Recorded power

102 hp

Recorded weight

3840 kg

Transmissions

16-speed

Production years

2002-2007

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerNew HollandReference

Utility tractorReference

Built in Curitiba, BrazilReference

Four-wheel driveReference

Differential lockmechanicalReference

Steeringhydrostatic powerReference

Wet discs brakesReference

Two-post ROPS with canopy.Reference

Engine

Genesis 7.5L 6-cyl dieselReference

Engine90.5 kWReference

Genesis BSD 675Reference

dieselReference

6-cylinderReference

liquid-cooledReference

Displacement7.5 LReference

Bore/Stroke112 x 127 mmReference

Power90.5 kWReference

Air cleanerdryReference

Compression17.5:1Reference

Rated RPM2100Reference

Torque480.0 NmReference

Torque RPM1200Reference

Starter volts12Reference

Starter power2.0 kWReference

Oil capacity22.1 LReference

Coolant capacity19.0 LReference

Transmission

16-speedReference

TransmissionDual PowerReference

Gears16 forward and 4 reverseReference

Clutch330mm dry discReference

Oil capacity48.6 LReference

PTO & Hydraulics

PTO (claimed)76.1 kWReference

Hydraulic system48.4 LReference

Capacity48.4 LReference

Pump flow34.8 lpmReference

Rear TypeIIReference

Controlposition controlReference

Rear lift (at ends)2600 kgReference

Rear lift (at 24"/610mm)4100 kgReference

Rear PTOindependentReference

Rear PTO Type540 (1.375)Reference

Engine RPM540@2100Reference

Capacities

Fuel82.9 LReference

Fuel74.9 LReference

Dimensions

Wheelbase227 cmReference

Weight3840 kgReference

Front tire12.4x24Reference

Rear tire18.4x34Reference

Standard tires (ag)Front: 12.4x24. Rear: 18.4x34Reference

Ag front12.4x24Reference

Ag front12.4x28Reference

Ag front14.9x24Reference

Ag front14.9x28Reference

Ag rear13.6x38Reference

Ag rear19.9x30Reference

Ag rear18.4x30Reference

Ag rear18.4x34Reference

Ag rear23.1x26Reference

Ag rear23.1x30Reference

Length411 cmReference

Height (exhaust)286 cmReference

Clearance (front axle)48 cmReference

Clearance (rear axle)45 cmReference

Shipping3840 kgReference

Ballasted6840 kgReference

Max Drawbar1044 kgReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps55Reference

Battery volts12Reference

Battery AH100Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
