Tractor · 1996Unverified

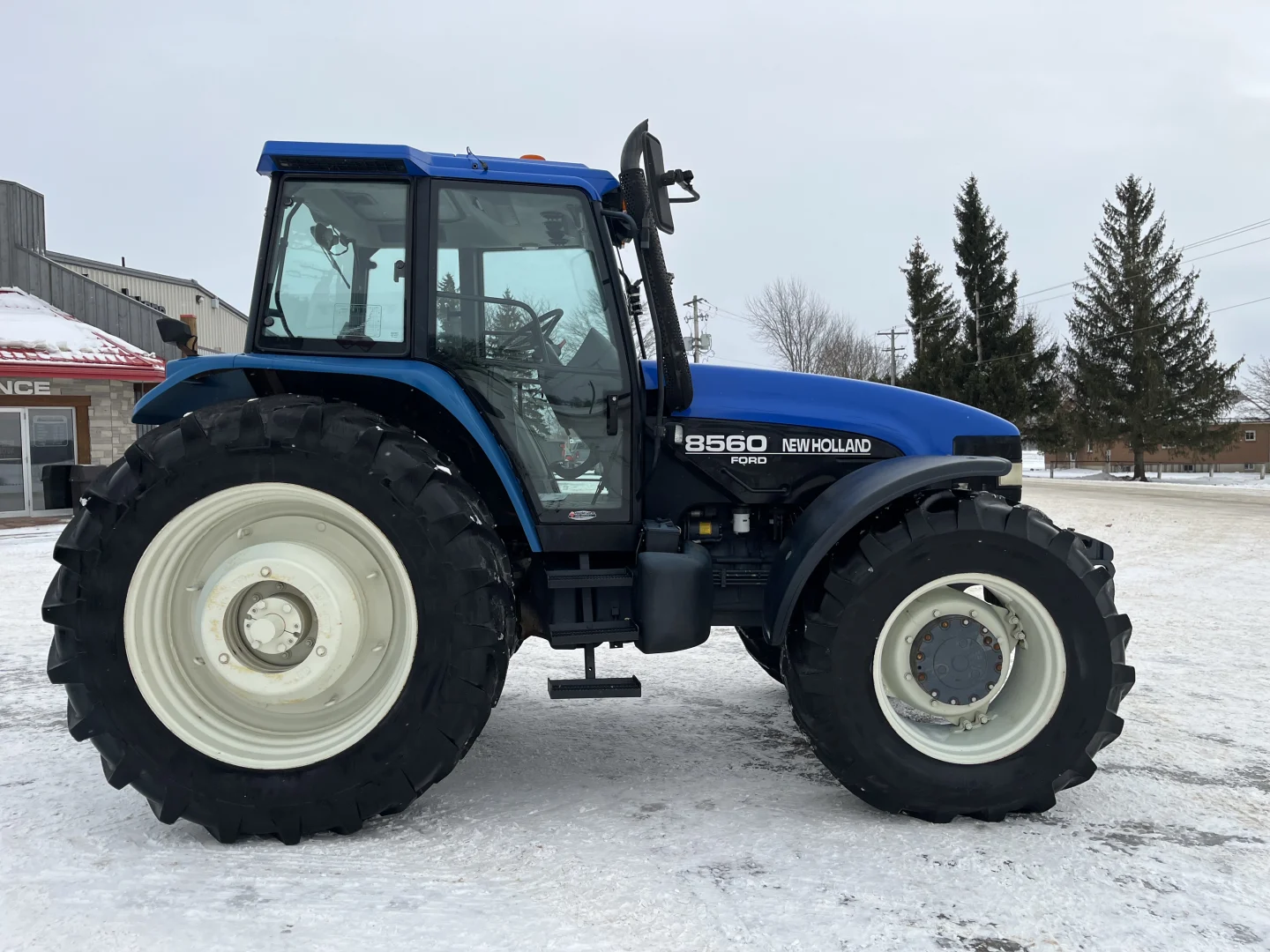

New Holland 8560

New Holland 8560 — 60 Gemini Series · 130 hp. Reference specifications; pending source verification.

The New Holland 8560 is a tractor model with a rated power output of 130 hp, positioning it at the more powerful end of its class. It was manufactured from 1996 to 1999. Specifications include a 6-cylinder turbocharged diesel liquid-cooled engine, coupled with mechanical front-wheel drive and a hydrostatic transmission. The tractor's listed operating weight ranges from 12386 to 13596 pounds, with a suitable operating area of 200 to 800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power
130 hp
Max power
106.6 kW
Weight
12386 to 13596 pounds

Catalogue coverage

Variants represented
2
Richest spec table
97 rows
Recorded power
130 hp
Transmissions
17-speed partial power shift
Production years
1996-1999
Verified variants
0

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerNew HollandReference
Row-Crop tractorReference
Built in EnglandReference
Original price$73,000 (1999)Reference
Drive4x2 2WDReference
Drive4x4 MFWD 4WD (optional)Reference
Differential lockRear or front and rear (4WD) with push-button operation. Manual and automatic modes. (2WD)Reference
Steeringhydrostatic powerReference
Differential hydraulic wet disc brakesReference
Cab standard.Reference

Variants

M160similar Fiat modelReference

Engine

New Holland 7.5L 6-cyl dieselReference
Drawbar (tested)89.5 kWReference
New Holland GenesisReference
turbocharged dieselReference
6-cylinderReference
liquid-cooledReference
Displacement7.5 LReference
Bore/Stroke114 x 127 mmReference
Compression17.5:1Reference
Rated RPM2300Reference
Idle RPM700-2530Reference
Operating RPM1500-2300Reference
Torque RPM1600Reference
Firing order1-5-3-6-2-4Reference
Starter volts12Reference
Starter power3.7 kWReference
Coolant capacity26.0 LReference
Intake valve clearance0.406 mmReference
Exhaust valve clearance0.457 mmReference
Oil capacity19.7 LReference
Max power106.6 kWReference
Max power89.5 kWReference

Transmission

17-speed partial power shiftReference
18-speed partial power shiftReference
TransmissionRange CommandReference
Typepartial power shiftReference
Gears17 forward and 6 reverseReference
Clutchwet discReference
Oil capacity99.9 LReference
The 17-speed Range Command transmission was available with 2WD. Six gears (1-6) in three ranges (A-C) with left-hand shuttle lever. Push-button gear shifting on the move. To shift ranges, hold up or down gear shift button while pressing range shift button. Reverse is available in range B only. Optional creeper increases available speeds to 30 forward and 12 in reverse.Reference
Gears18 forward and 6 reverseReference
The 18-speed Range Command transmission was available with 4WD. Six gears (1-6) in three ranges (A-C) with left-hand shuttle lever. Push-button gear shifting on the move. To shift ranges, hold up or down gear shift button while pressing range shift button. Reverse is available in range B only. Optional creeper increases available speeds to 31 and 12.Reference

PTO & Hydraulics

PTO (claimed)96.9 kWReference
PTO (tested)106.6 kWReference
Hydraulic system99.9 LReference
Typeclosed center load sensingReference
Capacity99.9 LReference
Pressure190.0 barReference
Valves2 to 4Reference
Pump flow98.4 lpmReference
Steering flow62.1 lpmReference
Steering press.170.0 barReference
Rear TypeII/IIIReference
Rear lift (at 24"/610mm)5443 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000Reference

Capacities

Fuel321.7 LReference
Front hubs2.2 LReference
Front diff.3.5 LReference
Max capacity9500 kgReference

Dimensions

Wheelbase275 cmReference
Wheelbase272 cmReference
Weight12386 to 13596 poundsReference
Front tire11.00-16Reference
Rear tire18.4R38 (2WD)Reference
Standard tires (ag)Front: 11.00-16. Rear: 18.4R38 (2WD)Reference
Standard tires (ag)Front: 14.9R28. Rear: 18.4R38 (4WD)Reference
Length457 cmReference
Length462 cmReference
Width213 cmReference
Clearance (front axle)58 cmReference
Clearance (front axle)50 cmReference
Clearance (drawbar)38 cmReference
Front tread154 to 218 cmReference
Front tread152 to 223 cmReference
Rear tread152 to 223 cmReference
Rear tread151 to 230 cmReference
Rear tread152 to 304 cmReference
Shipping5618 kgReference
Shipping6167 kgReference
Max front axle3599 kgReference
Max front axle4499 kgReference
Max rear axle7500 kgReference

Electrical

GroundnegativeReference
Charging systemalternatorReference
Charging amps70Reference
Charging amps100 (with cab)Reference
Batteries2Reference
Battery CCA900Reference
Battery volts12Reference

New Holland 8560 Height

Cab283 cmReference
Exhaust303 cmReference
Exhaust297 cmReference

Test results

Diesel 18-speed 4WD1996Reference
PTO performanceReference
Drawbar performanceReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
