Tractor · 2001Unverified

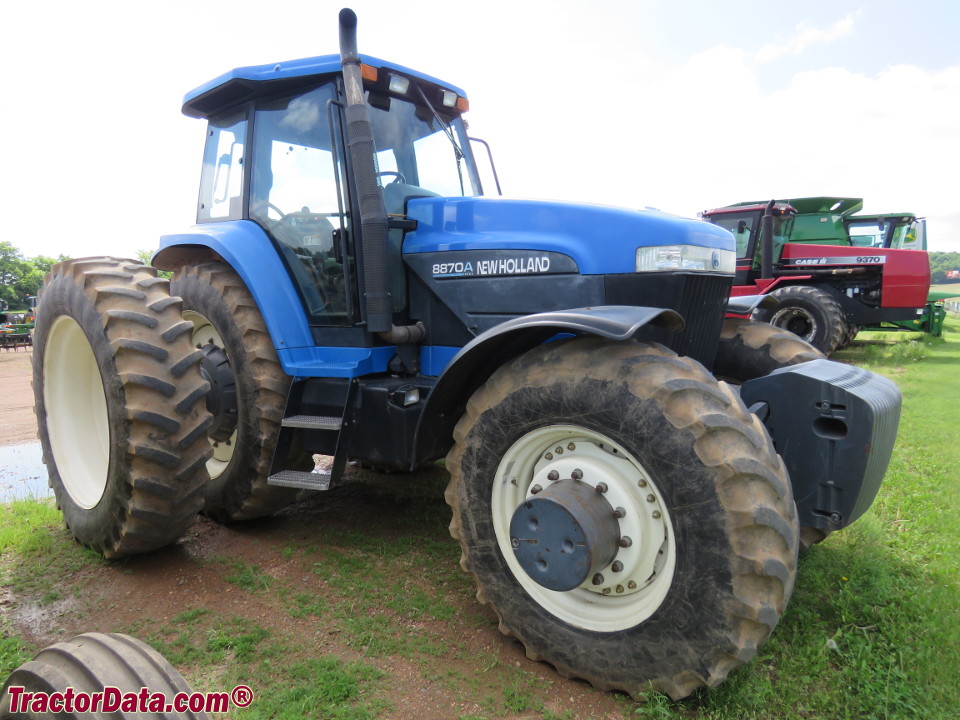

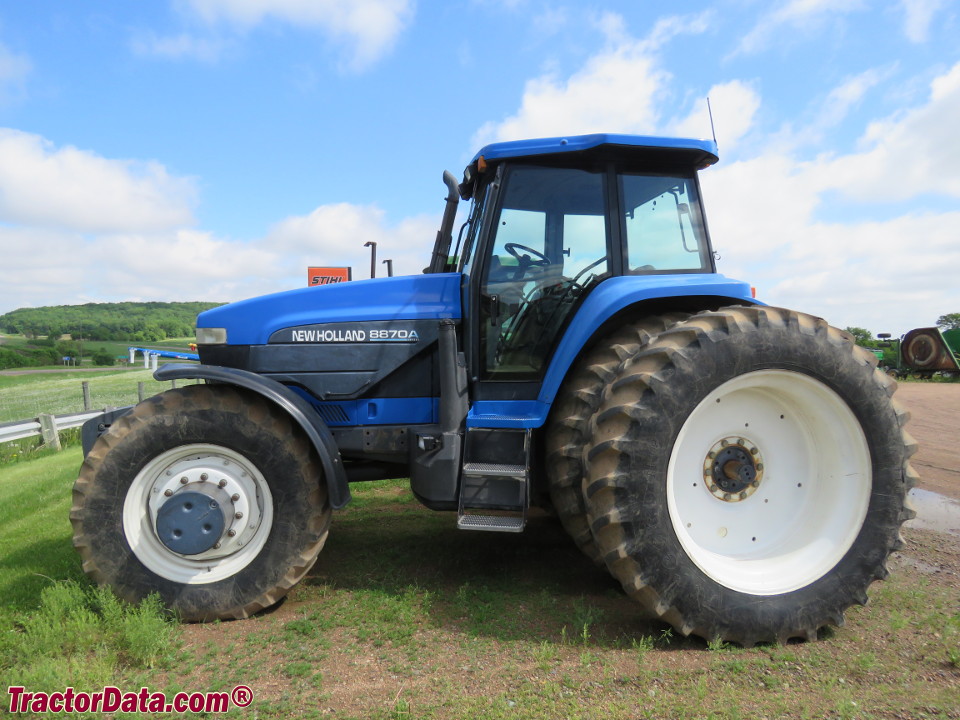

New Holland 8970A
New Holland 8970A — 70A Series · 210 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
210 hp
Weight
17250 to 19590 pounds
Hover a source tag to verify
Overview
ManufacturerNew HollandReference
Row-Crop tractorReference
Two- or four-wheel driveReference
Differential lockelectro-hydraulicReference
Power steeringReference
Cab standard with air-conditioning.Reference
Engine
New Holland 7.5L 6-cyl dieselReference
New HollandReference
turbocharged intercooled dieselReference
6-cylinderReference
liquid-cooledReference
Displacement7.5 LReference
Bore/Stroke112 x 127 mmReference
Compression17.5:1Reference
Rated RPM2100Reference
StarterelectricReference
Starter volts12Reference
Oil capacity21.3 LReference
Coolant capacity26.5 LReference
Transmission
16-speed full power shiftReference
Typefull power shiftReference
Gears16 forward and 9 reverseReference
PTO & Hydraulics
PTO (claimed)156.6 kWReference
Hydraulic system140.0 LReference
Typeclosed center load-sensingReference
Capacity140.0 LReference
Pressure206.8 barReference
Valves3 or 4Reference
Pump flow117.3 lpmReference
Pump flow208.2 lpmReference
Rear TypeIIIReference
Controlelectronic draft sensingReference
Rear lift6718 kgReference
Rear PTOindependentReference
Clutchwet discReference
Rear PTO Type1000Reference
Capacities
Fuel416.4 LReference
Dimensions
2WD Wheelbase300 cmReference
4WD Wheelbase300 cmReference
SuperSteer Wheelbase311 cmReference
Weight17250 to 19590 poundsReference
Length538 cmReference
Height (cab)309 cmReference
Height (exhaust)314 cmReference
Ground clearance47 cmReference
Bar rear axle104 by 2844 mmReference
Bar rear axle104 by 3048 mmReference
2WD Front tread154 to 226 cmReference
4WD Front tread152 to 226 cmReference
SuperSteer Front tread152 to 223 cmReference
2WD Shipping7824 kgReference
4WD Shipping8477 kgReference
SuperSteer Shipping8886 kgReference
New Holland 8970A attachments
front-end loaderReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps130Reference
Batteries2Reference
Battery CCA850Reference
Battery volts12Reference
Speeds
With 18.4-42 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
