Tractor · 1994Unverified

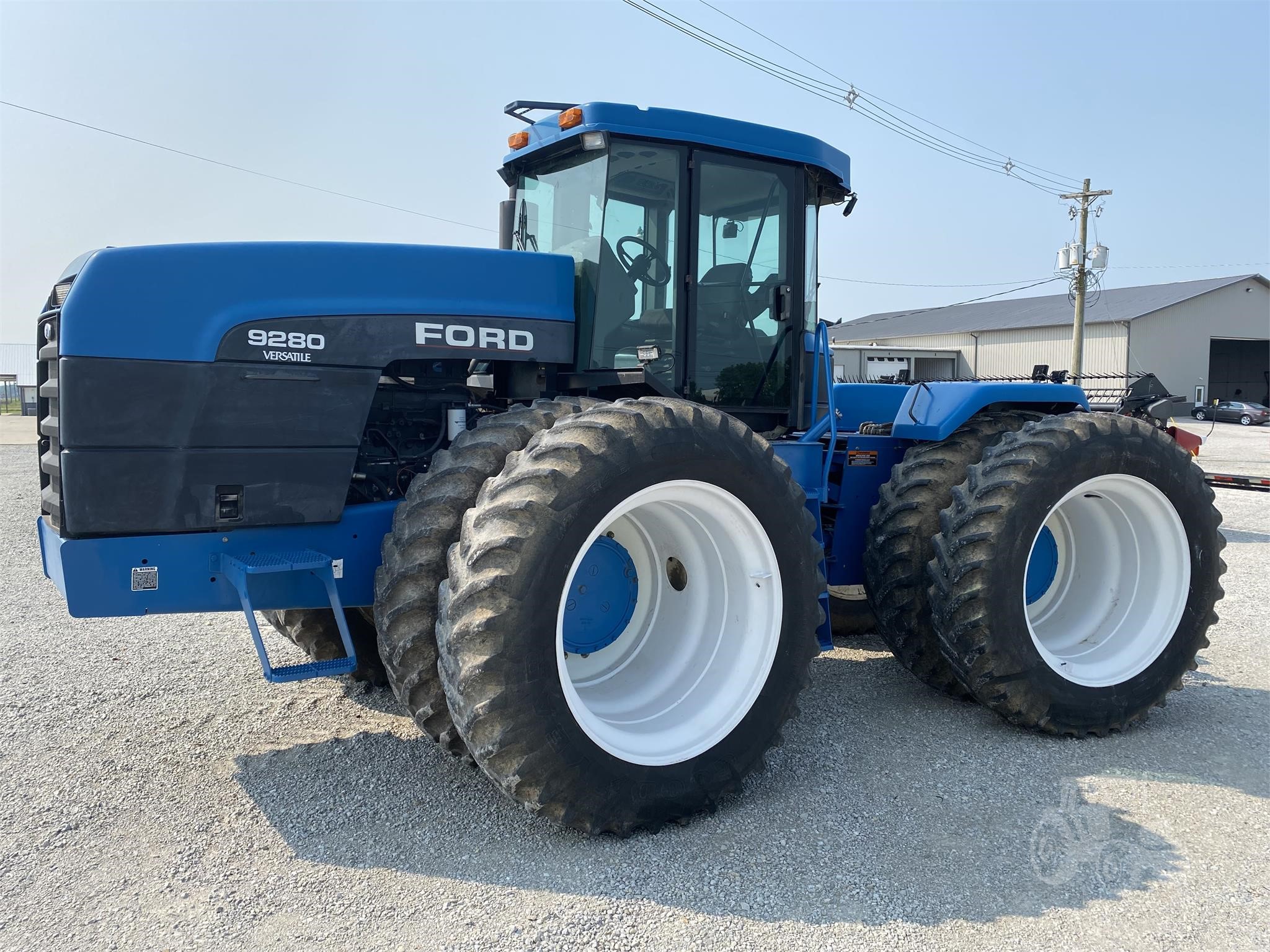

New Holland 9280
New Holland 9280 — 80 Series · 220 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
220 hp
Weight
10518 kg
Hover a source tag to verify
Overview
DistributorNew HollandReference
ManufacturerVersatileReference
Four-wheel Drive (4WD) tractorReference
Built in Winnigpeg, Manitoba, CanadaReference
Original price was $93,500 in 1995Reference
Four-wheel driveReference
Final drivesoutboard planetaryReference
Articulated power steeringReference
Hydraulic disc brakesReference
Cab standard with air-conditioning.Reference
Engine
Cummins 10.0L 6-cyl dieselReference
Engine186.4 kWReference
Cummins LT10-AReference
turbocharged dieselReference
6-cylinder 24-valveReference
liquid-cooled inlineReference
Displacement10.0 LReference
Bore/Stroke125 x 136 mmReference
Power186.4 kWReference
Rated RPM2100Reference
Idle RPM875-2100Reference
Operating RPM1700-2100Reference
Torque1144.5 NmReference
Torque RPM1300Reference
StarterelectricReference
Starter volts12Reference
Oil capacity26.0 LReference
Coolant capacity52.1 LReference
Transmission
12-speed partially synchronizedReference
TransmissionQuadra-SyncReference
Typepartially synchronizedReference
Gears12 forward and 4 reverseReference
Clutchhydraulic wet discReference
Oil capacity48.0 LReference
Four synchronized gears in three ranges, plus reverse range.Reference
PTO & Hydraulics
PTO (claimed)164.1 kWReference
Hydraulic system57.9 LReference
Typeclosed center load-sensingReference
Capacity57.9 LReference
Pressure172.4 barReference
Pump flow94.6 lpmReference
Steering flow102.2 lpmReference
Rear TypeIVNReference
Controlelectronic position controlReference
Rear lift (at 24"/610mm)5784 kgReference
Rear PTOindependentReference
Rear PTO Type1000 (1.75)Reference
Engine RPM1000@2100Reference
Capacities
Fuel927.3 LReference
Dimensions
Wheelbase338 cmReference
Weight10518 kgReference
Front tire20.8x38Reference
Rear tire20.8x38Reference
Ag front20.8x38Reference
Ag rear20.8x38Reference
Length674 cmReference
Height (cab)342 cmReference
Height (exhaust)367 cmReference
Shipping weight10518 kgReference
Max weight12700 kgReference
Ground clearance44 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps130Reference
Batteries3Reference
Battery CCA625Reference
Battery volts12Reference
Battery Group31Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
