Tractor · 1996Unverified

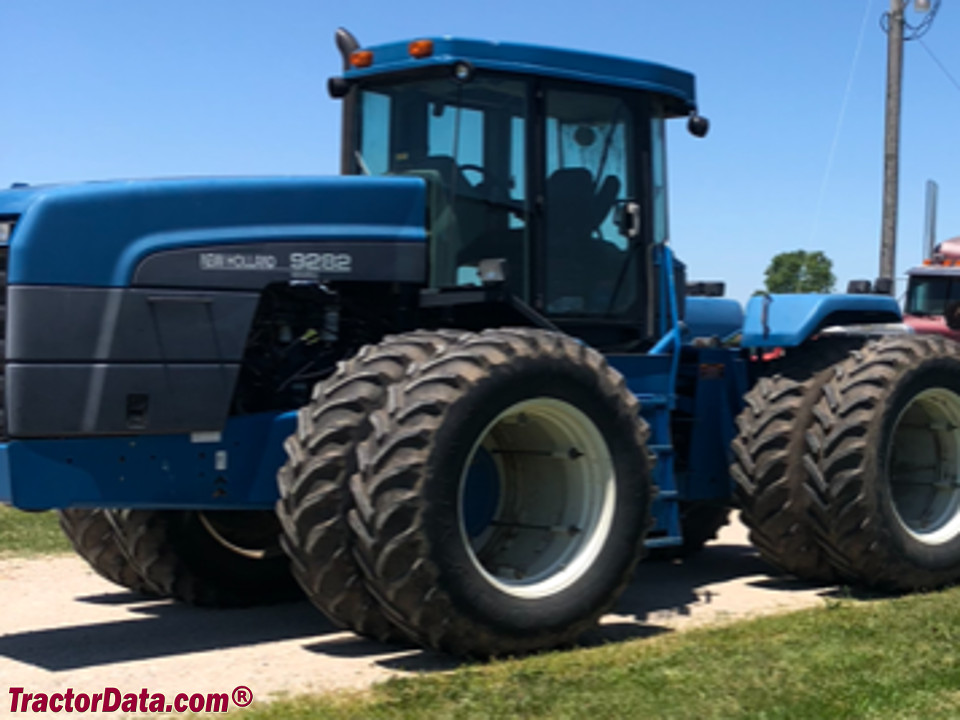

New Holland 9282
New Holland 9282 — Four-wheel Drive (4WD) tractor · 212 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
212 hp
Max power
174.2 kW
Weight
17122 to 24805 pounds
Hover a source tag to verify
Overview
DistributorNew HollandReference
ManufacturerVersatileReference
Four-wheel Drive (4WD) tractorReference
Built in Winnipeg, Manitoba, CanadaReference
The 9282 hydraulics were advertised at 45 gpm, but produced 40 during official testing.Reference
Four-wheel driveReference
Steeringhydrostatic powerReference
Hydraulic dry disc brakesReference
Cab standard with air-conditioning.Reference
Engine
Cummins 8.3L 6-cyl dieselReference
Engine193.9 kWReference
Drawbar (claimed)149.1 kWReference
Drawbar (tested)149.6 kWReference
Cummins C8.3Reference
turbocharged aftercooled dieselReference
6-cylinderReference
liquid-cooled verticalReference
Displacement8.3 LReference
Bore/Stroke114 x 135 mmReference
Power193.9 kWReference
Air cleanerdual paper elementsReference
Compression16.7:1Reference
Rated RPM2200Reference
Idle RPM900-2500Reference
Torque1118.7 NmReference
Torque RPM1500Reference
Firing order1-5-3-6-2-4Reference
Starter volts12Reference
Coolant capacity54.9 LReference
Oil capacity21.6 LReference
Oil change250 hReference
Max power174.2 kWReference
Power at rated engine speed157.9 kWReference
Max power149.6 kWReference
Transmission
12-speed partially synchronizedReference
TransmissionQuadra-SyncReference
Typepartially synchronizedReference
Gears12 forward and 4 reverseReference
Clutch11-inch hydraulic wet discReference
Four speeds (1-4) in three ranges (L/M/H) plus reverse range. Speed changes are synchronized using the clutch. Tractor must be stopped to shift ranges. Depressing the clutch fully activates a transmission brake, it is recommended to depress it two-thirds when shifting gears.Reference
PTO & Hydraulics
PTO (claimed)158.1 kWReference
PTO (tested)174.2 kWReference
Hydraulic system117.3 LReference
Hydraulic system124.9 LReference
Typeclosed center load sensingReference
Capacity117.3 LReference
Capacity124.9 LReference
Pressure155.1 barReference
Valves1 to 4Reference
Pump flow170.3 lpmReference
SCV flow113.6 lpmReference
Steering flow102.2 lpmReference
Steering press.172.4 barReference
Rear TypeIVN/3Reference
Rear lift (at 24"/610mm)5896 kgReference
Rear PTOindependentReference
Clutchelectro-hydraulic wet discReference
Rear PTO Type1000 (1.75)Reference
Engine RPM1000@2100Reference
Power at rated PTO speed170.8 kWReference
Capacities
Fuel927.3 LReference
Fuel870.6 LReference
Front hubs7.6 LReference
Front diff.32.9 LReference
Rear hubs7.6 LReference
Rear diff.32.9 LReference
Max capacity13154 kgReference
Dimensions
Wheelbase337 cmReference
Weight17122 to 24805 poundsReference
Front tire20.8R38Reference
Rear tire20.8R38Reference
Ag front20.8R38Reference
Ag rear20.8R38Reference
Length675 cmReference
Width382 cmReference
Height (cab)347 cmReference
Height (exhaust)372 cmReference
Shipping7766 kgReference
Operating11251 kgReference
9282 Serial Numbers
Location:Rear lower-left side of the tractor cab, just above platform.Reference
1996D103815Reference
1997D104389Reference
1998D106500Reference
1999D107868Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps130Reference
Charging volts12Reference
Batteries3Reference
Battery CCA625Reference
Battery volts12Reference
Battery GroupSAE31Reference
Test results
Diesel 12-speed 4WDJanuary 1999 - September 1999, Link: OCED Tractor Test 1885 fileReference
PTO performanceReference
Fuel use55.6 l/hourReference
Fuel use55.3 l/hourReference
Fuel use57.2 l/hourReference
Drawbar performanceReference
Max pull11349 kgReference
Speeds
With 20.8R38 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
