Tractor · 2000Unverified

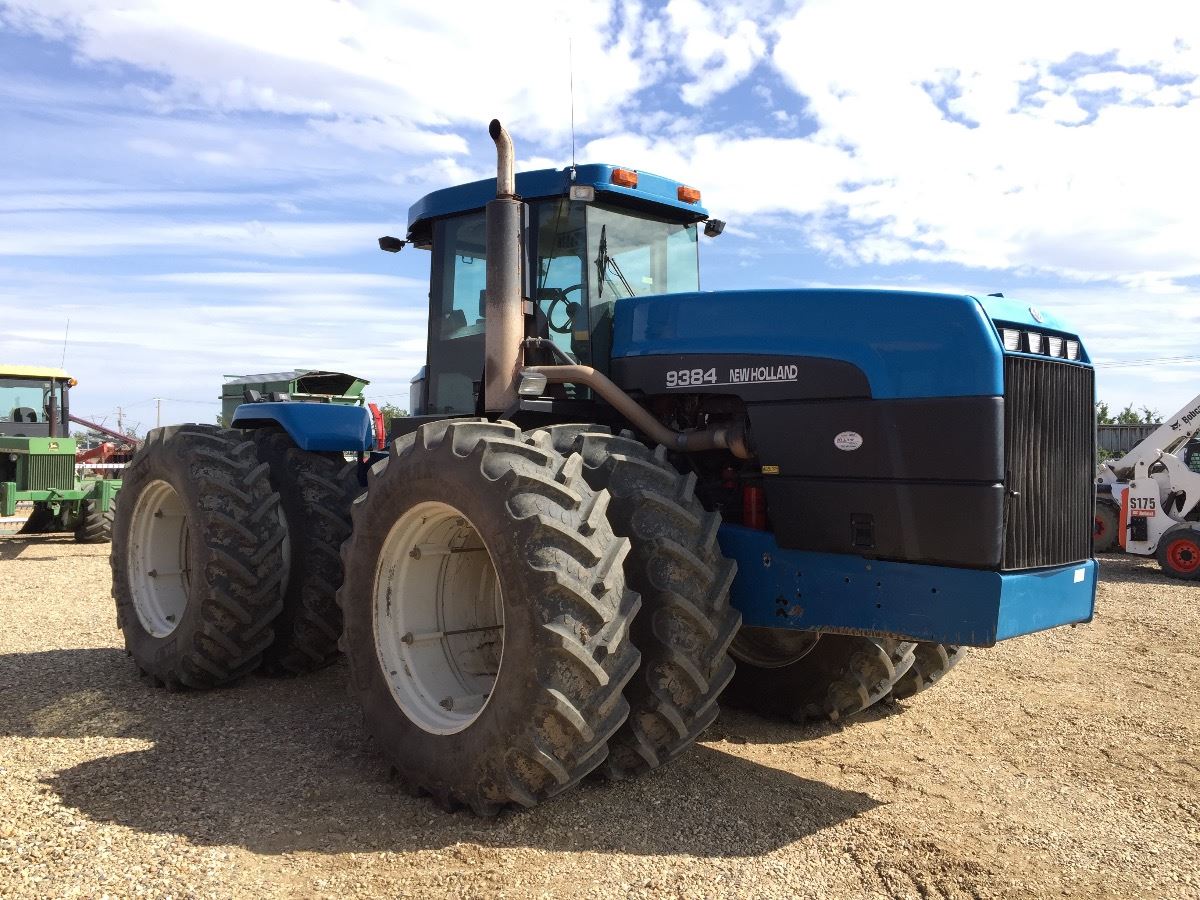

New Holland 9384

Name: New Holland 9384
Brand: New Holland

New Holland 9384 — 84 Series · 270 hp. Reference specifications; pending source verification.

The New Holland 9384 is a tractor model with a rated power of 270 hp, positioning it at the powerful end of its class. This model was manufactured between 2000 and 2001. Key specifications include a 6-cylinder turbocharged diesel liquid-cooled engine and a four-wheel drive system paired with a powershift transmission. Its listed operating weight is 8547 kg.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

270 hp

Weight

8547 kg

Catalogue coverage

Variants represented

Richest spec table

76 rows

Recorded power

270 hp

Recorded weight

8547 kg

Transmissions

12-speed partially synchronized

Production years

2000-2001

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

DistributorNew HollandReference

ManufacturerVersatileReference

Four-wheel Drive (4WD) tractorReference

Built in Winnipeg, Manitoba, CanadaReference

Four-wheel driveReference

Final drivesplanetaryReference

Articulated power steeringReference

Hydraulic disc brakesReference

Cab standard with air-conditioning.Reference

Engine

Cummins 10.8L 6-cyl dieselReference

Engine (gross)201.3 kWReference

Cummins M11Reference

turbocharged aftercooled dieselReference

6-cylinderReference

liquid-cooled inlineReference

Displacement10.8 LReference

Bore/Stroke125 x 147 mmReference

Power (gross)201.3 kWReference

Air cleanerdual paper elementsReference

Compression16.1:1Reference

Rated RPM2100Reference

Idle RPM850-2460Reference

Torque1423.8 NmReference

Torque RPM1300Reference

Firing order1-5-3-6-2-4Reference

Starter volts12Reference

Oil capacity36.7 LReference

Coolant capacity58.0 LReference

Transmission

12-speed partially synchronizedReference

12-speed full power shiftReference

TransmissionQuadrasyncReference

Typepartially synchronizedReference

Gears12 forward and 4 reverseReference

Clutchhydraulic wet discReference

Four synchronized gears in three ranges, plus reverse range. Gears may be shifted on the move, using the clutch. Tractor must be stopped, and clutch used, to shift range.Reference

Typefull power shiftReference

Gears12 forward and 2 reverseReference

Clutchelectro-hydraulic wet discReference

Capacities

Fuel870.6 LReference

PTO & Hydraulics

Hydraulic system75.7 LReference

Hydraulic system124.9 LReference

Typeclosed centerReference

Capacity75.7 LReference

Capacity124.9 LReference

Pressure155.1 barReference

Valves4Reference

Pump flow170.3 lpmReference

Steering flow102.2 lpmReference

Steering press.172.4 barReference

Rear TypeIVN/IIIReference

Rear lift (at 24"/610mm)5896 kgReference

DrawbarCat. 4Reference

Rear PTOindependentReference

Clutchelectro-hydraulic wet discReference

Rear PTO Type1000 (1.75)Reference

Engine RPM1000@2100Reference

Dimensions

Wheelbase337 cmReference

Weight8547 kgReference

Front tire18.4-38Reference

Rear tire18.4-38Reference

Ag front18.4-38Reference

Ag rear18.4-38Reference

Length675 cmReference

Width367 cmReference

Height (cab)341 cmReference

Height (exhaust)366 cmReference

Shipping weight8547 kgReference

Max weight14515 kgReference

9384 Serial Numbers

Location:Serial number plate mounted on the tractor cab's left, rear, corner.Reference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps130Reference

Batteries3Reference

Battery CCA625Reference

Battery volts12Reference

Speeds

With 18.4-38 tires.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
