Tractor · 1994Unverified

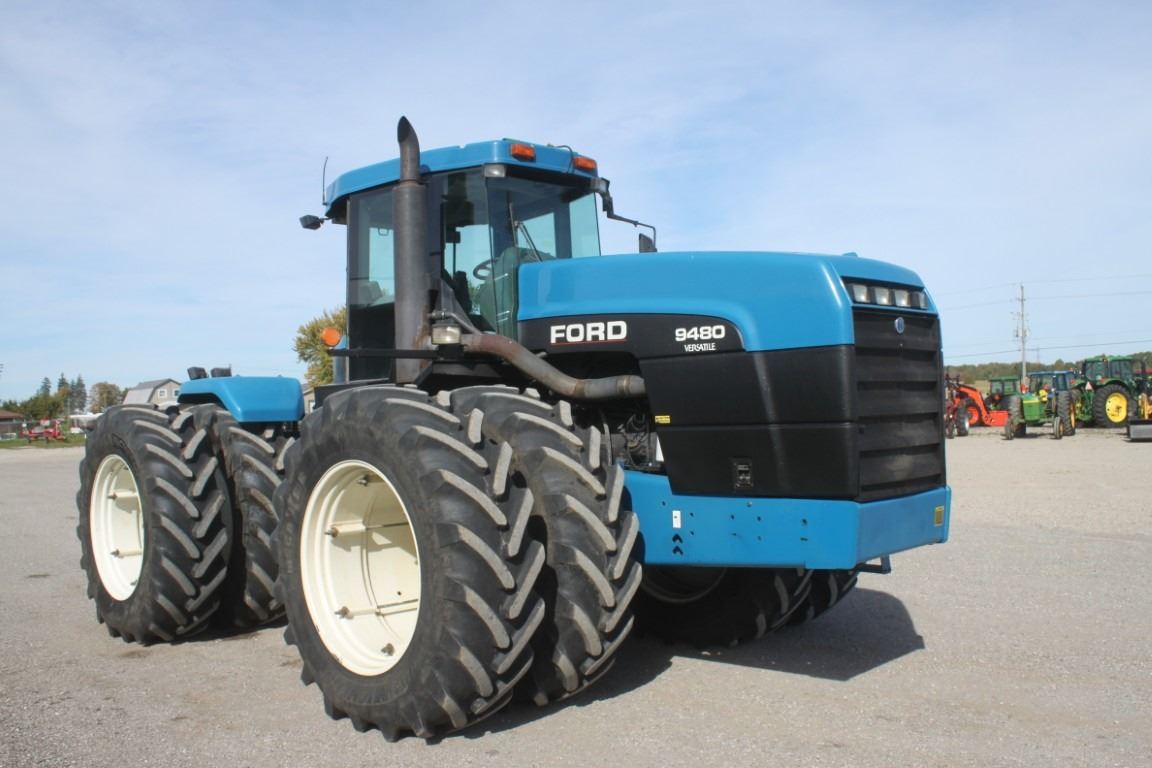

New Holland 9480

Name: New Holland 9480
Brand: New Holland

New Holland 9480 — 80 Series · 264 hp. Reference specifications; pending source verification.

The New Holland 9480 is a tractor with a rated power output of 264 hp, positioning it in the higher-powered segment of its class. Manufactured between 1994 and 1995, this model features a 6-cylinder turbocharged diesel liquid-cooled engine, which drives a four-wheel drive system through a powershift transmission. The listed weight of the tractor is 10961 kg, and it is designed for tasks covering approximately 1,500 or more acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

264 hp

Weight

10961 kg

Catalogue coverage

Variants represented

Richest spec table

73 rows

Recorded power

264 hp

Recorded weight

10961 kg

Transmissions

12-speed partially synchronized

Production years

1994-1995

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

DistributorNew HollandReference

ManufacturerVersatileReference

Four-wheel Drive (4WD) tractorReference

Built in Winnigpeg, Manitoba, CanadaReference

Original price was $110,000 in 1995Reference

Four-wheel driveReference

Final drivesoutboard planetaryReference

Articulated power steeringReference

Hydraulic disc brakesReference

Cab standard with air-conditioning.Reference

Engine

Cummins 14.0L 6-cyl dieselReference

Engine223.7 kWReference

Cummins NTA855-AReference

turbocharged aftercooled dieselReference

6-cylinder 24-valveReference

liquid-cooled inlineReference

Displacement14.0 LReference

Bore/Stroke140 x 152 mmReference

Power223.7 kWReference

Rated RPM2100Reference

Idle RPM875-2100Reference

Operating RPM1700-2100Reference

Torque1403.5 NmReference

Torque RPM1400Reference

StarterelectricReference

Starter volts12Reference

Oil capacity37.0 LReference

Coolant capacity60.3 LReference

Transmission

12-speed partially synchronizedReference

12-speed full power shiftReference

TransmissionQuadra-SyncReference

Typepartially synchronizedReference

Gears12 forward and 4 reverseReference

Clutchhydraulic wet discReference

Oil capacity48.0 LReference

Four synchronized gears in three ranges, plus reverse range.Reference

TransmissionTwin DiscReference

Typefull power shiftReference

Gears12 forward and 2 reverseReference

Oil capacity47.3 LReference

PTO & Hydraulics

PTO (claimed)196.9 kWReference

Hydraulic system57.9 LReference

Typeclosed center load-sensingReference

Capacity57.9 LReference

Pressure172.4 barReference

Pump flow113.6 lpmReference

Steering flow113.6 lpmReference

Rear TypeIVNReference

Controlelectronic position controlReference

Rear lift (at 24"/610mm)5784 kgReference

Rear PTOindependentReference

Rear PTO Type1000 (1.75)Reference

Engine RPM1000@2100Reference

Capacities

Fuel927.3 LReference

Dimensions

Wheelbase338 cmReference

Weight10961 kgReference

Front tire20.8x38Reference

Rear tire20.8x38Reference

Ag front20.8x38Reference

Ag rear20.8x38Reference

Length674 cmReference

Height (cab)342 cmReference

Height (exhaust)367 cmReference

Shipping weight10961 kgReference

Max weight14742 kgReference

Ground clearance44 cmReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps130Reference

Batteries3Reference

Battery CCA950Reference

Battery volts12Reference

Battery Group31Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
