Tractor · 1996Unverified

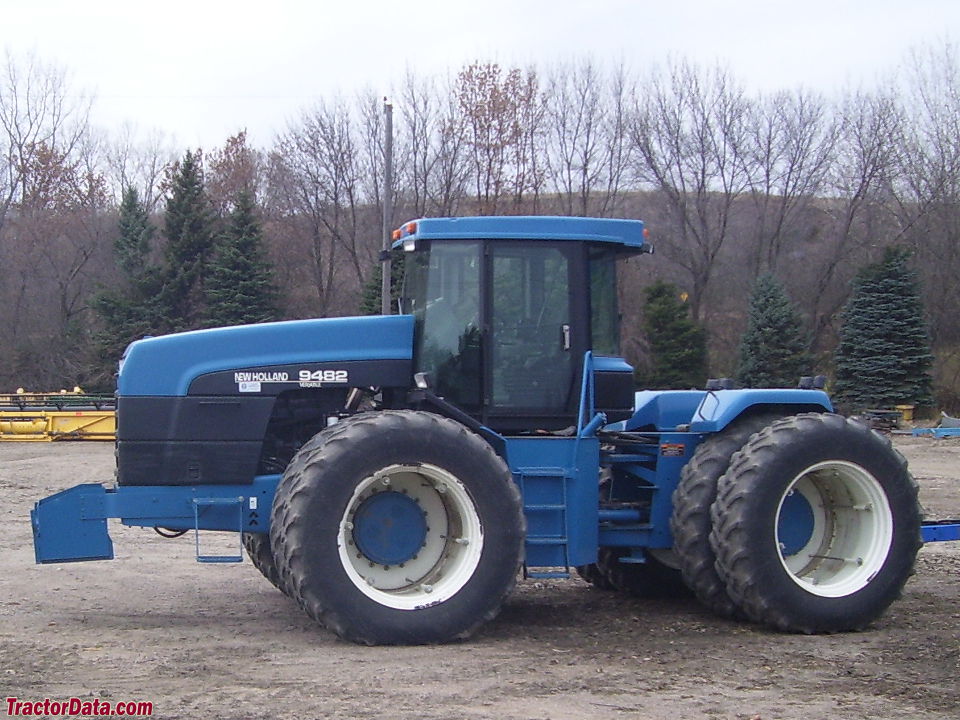

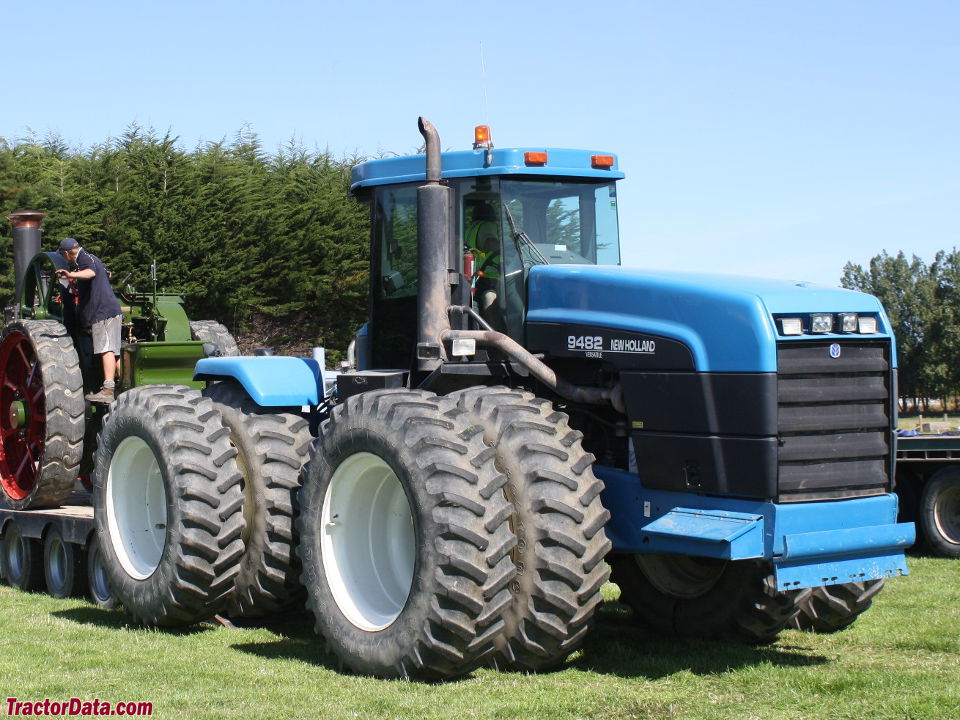

New Holland 9482
New Holland 9482 — Four-wheel Drive (4WD) tractor · 274 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
274 hp
Max power
211.7 kW
Weight
18844 to 30000 pounds
Hover a source tag to verify
Overview
DistributorNew HollandReference
ManufacturerVersatileReference
Four-wheel Drive (4WD) tractorReference
Built in Winnipeg, Manitoba, CanadaReference
Four-wheel driveReference
Steeringhydrostatic powerReference
Hydraulic dry disc brakesReference
Cab standard with air-conditioning.Reference
Engine
Cummins 10.8L 6-cyl dieselReference
Engine231.2 kWReference
Drawbar (claimed)178.2 kWReference
Drawbar (tested)178.3 kWReference
Cummins M11Reference
turbocharged aftercooled dieselReference
6-cylinderReference
liquid-cooled verticalReference
Displacement10.8 LReference
Bore/Stroke125 x 147 mmReference
Power231.2 kWReference
Air cleanerdual paper elementsReference
Compression16.1:1Reference
Rated RPM2100Reference
Idle RPM900-2460Reference
Torque1423.8 NmReference
Torque RPM1400Reference
Firing order1-5-3-6-2-4Reference
Starter volts12Reference
Coolant capacity57.9 LReference
Oil capacity36.7 LReference
Oil change250 hReference
Max power211.7 kWReference
Power at rated engine speed204.1 kWReference
Max power178.3 kWReference
Transmission
12-speed partially synchronizedReference
12-speed full power shiftReference
TransmissionQuadra-SyncReference
Typepartially synchronizedReference
Gears12 forward and 4 reverseReference
Clutch11-inch hydraulic wet discReference
Four speeds (1-4) in three ranges (L/M/H) plus reverse range. Speed changes are synchronized using the clutch. Tractor must be stopped to shift ranges. Depressing the clutch fully activates a transmission brake, it is recommended to depress it two-thirds when shifting gears.Reference
TransmissionPower ShiftReference
Typefull power shiftReference
Gears12 forward and 2 reverseReference
Clutch9-inch hydraulicReference
Power shift transmission operated with a single control lever. Lever is moved ahead for forward range and to the back for reverse range, the neutral-lock button must be pressed to move the lever into range. Pushing right up-shifts and left down-shifts. Transmission always begins in first gear. Pressing the clutch while in motion will cause the transmission to automatically down-shift to match ground speed.Reference
PTO & Hydraulics
PTO (claimed)204.3 kWReference
PTO (tested)211.7 kWReference
Hydraulic system117.3 LReference
Hydraulic system124.9 LReference
Typeclosed center load sensingReference
Capacity117.3 LReference
Capacity124.9 LReference
Pressure155.1 barReference
Valves1 to 4Reference
Pump flow170.3 lpmReference
SCV flow113.6 lpmReference
Steering flow102.2 lpmReference
Steering press.172.4 barReference
Rear TypeIVN/3Reference
Rear lift (at 24"/610mm)5896 kgReference
Rear PTOindependentReference
Clutchelectro-hydraulic wet discReference
Rear PTO Type1000 (1.75)Reference
Engine RPM1000@2100Reference
Capacities
Fuel927.3 LReference
Fuel870.6 LReference
Front hubs7.6 LReference
Front diff.26.9 LReference
Rear hubs7.6 LReference
Rear diff.26.9 LReference
Max capacity15422 kgReference
Dimensions
Wheelbase337 cmReference
Weight18844 to 30000 poundsReference
Front tire20.8R42Reference
Rear tire20.8R42Reference
Ag front20.8R42Reference
Ag rear20.8R42Reference
Length675 cmReference
Width381 cmReference
Height (cab)347 cmReference
Height (exhaust)372 cmReference
Shipping8547 kgReference
Operating13608 kgReference
9482 Serial Numbers
Location:Rear lower-left side of the tractor cab, just above platform.Reference
1996D103399Reference
1997D104389Reference
1998D106500Reference
1999D107868Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps130Reference
Charging volts12Reference
Batteries3Reference
Battery CCA625Reference
Battery volts12Reference
Battery GroupSAE31Reference
Test results
Diesel Quadra-Sync 4WDOctober 1998 - November 1998, Link: OCED Tractor Test 1815 fileReference
PTO performanceReference
Fuel use56.4 l/hourReference
Fuel use59.0 l/hourReference
Drawbar performanceReference
Fuel use57.2 l/hourReference
Gear 1M used for power test.Reference
Max pull15191 kgReference
Gear 1L used for pull test.Reference
Speeds
With 20.8R42 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
