Tractor · 2000Unverified

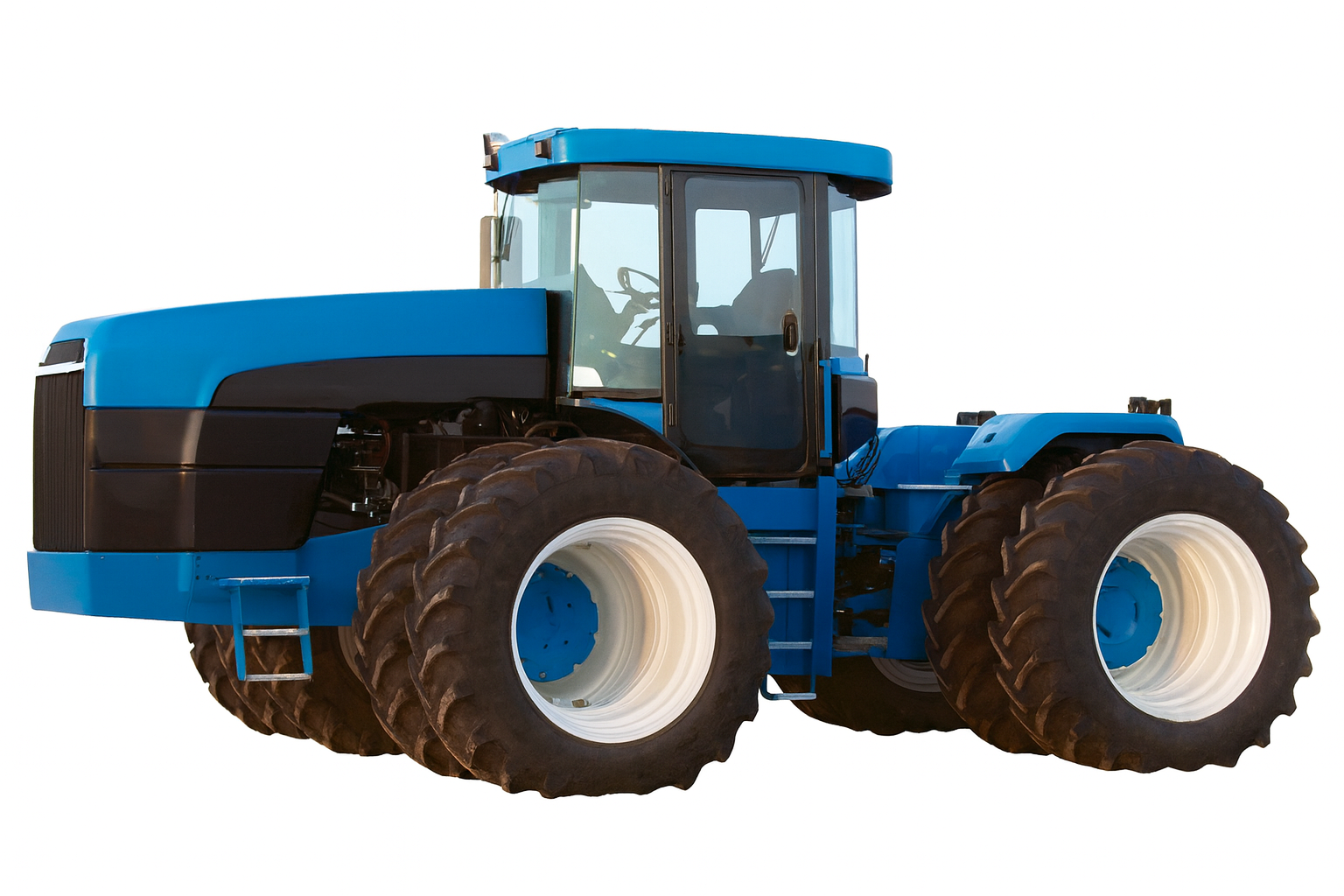

New Holland 9484
New Holland 9484 — 84 Series · 310 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
310 hp
Weight
8547 kg
Hover a source tag to verify
Overview
DistributorNew HollandReference
ManufacturerVersatileReference
Four-wheel Drive (4WD) tractorReference
Built in Winnipeg, Manitoba, CanadaReference
Four-wheel driveReference
Final drivesplanetaryReference
Articulated power steeringReference
Hydraulic disc brakesReference
Cab standard with air-conditioning.Reference
Engine
Cummins 10.8L 6-cyl dieselReference
Engine (gross)231.2 kWReference
Cummins M11Reference
turbocharged aftercooled dieselReference
6-cylinderReference
liquid-cooled inlineReference
Displacement10.8 LReference
Bore/Stroke125 x 147 mmReference
Power (gross)231.2 kWReference
Air cleanerdual paper elementsReference
Compression16.1:1Reference
Rated RPM2100Reference
Idle RPM850-2460Reference
Torque1423.8 NmReference
Torque RPM1300Reference
Firing order1-5-3-6-2-4Reference
Starter volts12Reference
Oil capacity34.7 LReference
Coolant capacity59.0 LReference
Transmission
12-speed partially synchronizedReference
12-speed full power shiftReference
TransmissionQuadrasyncReference
Typepartially synchronizedReference
Gears12 forward and 4 reverseReference
Clutchhydraulic wet discReference
Four synchronized gears in three ranges, plus reverse range. Gears may be shifted on the move, using the clutch. Tractor must be stopped, and clutch used, to shift range.Reference
Typefull power shiftReference
Gears12 forward and 2 reverseReference
Clutchelectro-hydraulic wet discReference
Capacities
Fuel870.6 LReference
PTO & Hydraulics
Hydraulic system75.7 LReference
Hydraulic system124.9 LReference
Typeclosed centerReference
Capacity75.7 LReference
Capacity124.9 LReference
Pressure155.1 barReference
Valves4Reference
Pump flow170.3 lpmReference
Steering flow102.2 lpmReference
Steering press.172.4 barReference
Rear TypeIVN/IIIReference
Rear lift (at 24"/610mm)5896 kgReference
DrawbarCat. 4Reference
Rear PTOindependentReference
Clutchelectro-hydraulic wet discReference
Rear PTO Type1000 (1.75)Reference
Engine RPM1000@2100Reference
Dimensions
Wheelbase337 cmReference
Weight8547 kgReference
Front tire20.8-38Reference
Rear tire20.8-38Reference
Ag front20.8-38Reference
Ag rear20.8-38Reference
Length675 cmReference
Width382 cmReference
Height (cab)342 cmReference
Height (exhaust)367 cmReference
Shipping weight8547 kgReference
Max weight15422 kgReference
9484 Serial Numbers
Location:Serial number plate mounted on the tractor cab's left, rear, corner.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps130Reference
Batteries3Reference
Battery CCA625Reference
Battery volts12Reference
Speeds
With 20.8-38 tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
