Tractor · 1996Unverified

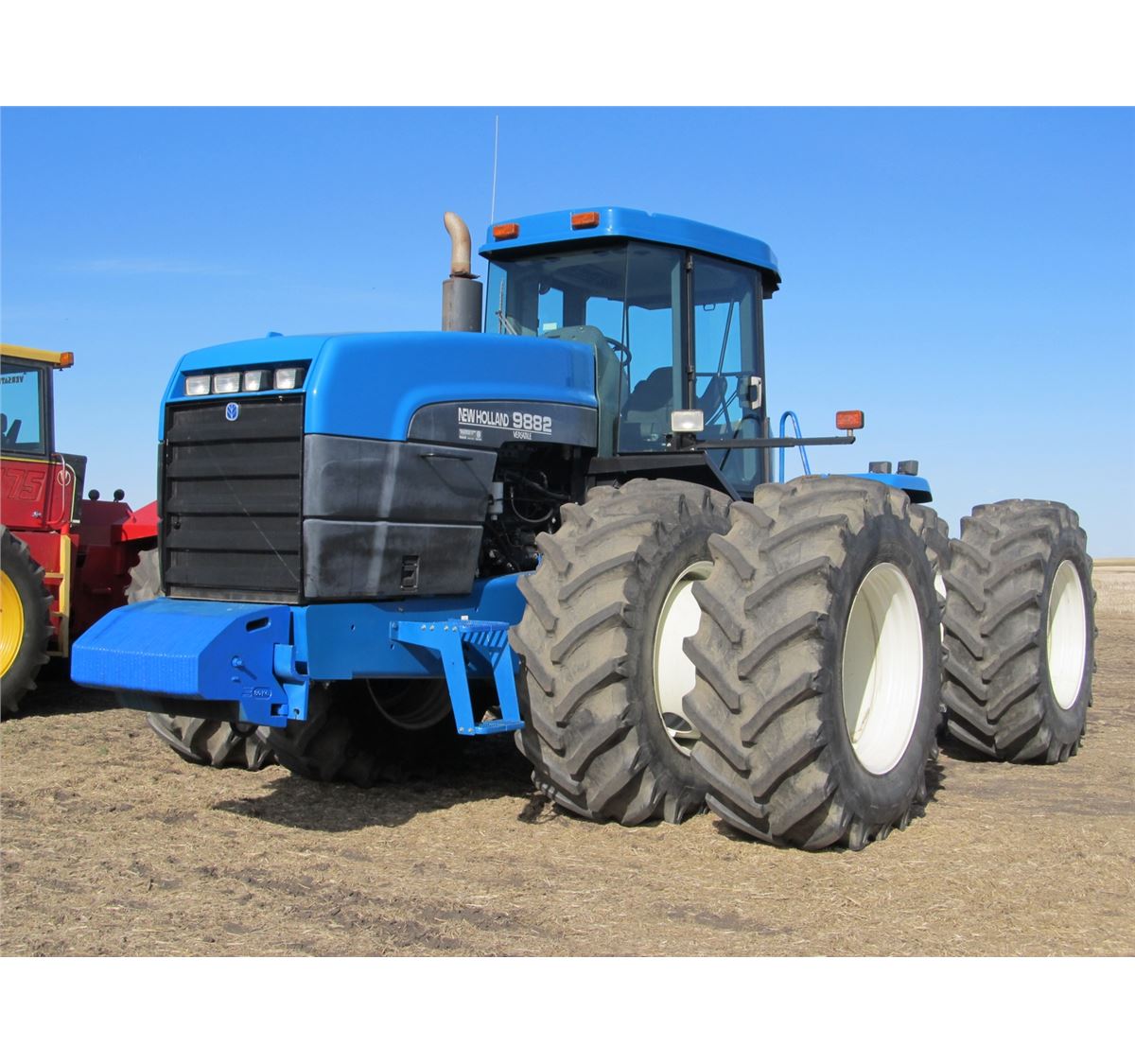

New Holland 9882
New Holland 9882 — Four-wheel Drive (4WD) tractor · 425 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
425 hp
Max power
258.3 kW
Weight
20230 to 31670 pounds
Hover a source tag to verify
Overview
DistributorNew HollandReference
ManufacturerVersatileReference
Four-wheel Drive (4WD) tractorReference
Built in Winnipeg, Manitoba, CanadaReference
Four-wheel driveReference
Articulated power steeringReference
Hydraulic dry disc brakesReference
Cab standard with air-conditioning.Reference
Engine
Cummins 14.0L 6-cyl dieselReference
Engine316.9 kWReference
Drawbar (claimed)252.0 kWReference
Drawbar (tested)258.3 kWReference
Cummins N14Reference
turbocharged aftercooled dieselReference
6-cylinderReference
liquid-cooled verticalReference
Displacement14.0 LReference
Bore/Stroke140 x 152 mmReference
Power316.9 kWReference
Air cleanerdual paper elementsReference
Compression16.5:1Reference
Rated RPM2100Reference
Idle RPM900-2400Reference
Torque1898.4 NmReference
Torque RPM1400Reference
Firing order1-5-3-6-2-4Reference
Starter volts12Reference
Coolant capacity60.2 LReference
Oil capacity38.6 LReference
Oil change250 hReference
Max power258.3 kWReference
Transmission
12-speed partially synchronizedReference
TransmissionQuadra-SyncReference
Typepartially synchronizedReference
Gears12 forward and 4 reverseReference
Clutch11-inch hydraulic wet discReference
Four speeds (1-4) in three ranges (L/M/H) plus reverse range. Speed changes are synchronized using the clutch. Tractor must be stopped to shift ranges. Depressing the clutch fully activates a transmission brake, it is recommended to depress it two-thirds when shifting gears.Reference
Capacities
Fuel870.6 LReference
Front hubs12.1 LReference
Front diff.26.9 LReference
Rear hubs12.1 LReference
Rear diff.26.9 LReference
Max capacity19958 kgReference
PTO & Hydraulics
Hydraulic system117.3 LReference
Hydraulic system124.9 LReference
Typeclosed center load sensingReference
Capacity117.3 LReference
Capacity124.9 LReference
Pressure155.1 barReference
Valves1 to 4Reference
Pump flow189.2 lpmReference
SCV flow113.6 lpmReference
Steering flow113.6 lpmReference
Steering press.172.4 barReference
Rear TypeIVN/3Reference
Rear lift (at 24"/610mm)5896 kgReference
Dimensions
Wheelbase337 cmReference
Weight20230 to 31670 poundsReference
Front tire710/70R38Reference
Rear tire710/70R38Reference
Ag front710/70R38Reference
Ag rear710/70R38Reference
Length675 cmReference
Width381 cmReference
Height (cab)347 cmReference
Height (exhaust)372 cmReference
Shipping9176 kgReference
Operating14365 kgReference
9882 Serial Numbers
Location:Rear lower-left side of the tractor cab, just above platform.Reference
1996D103584Reference
1997D104389Reference
1998D106500Reference
1999D107868Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps130Reference
Charging volts12Reference
Batteries3Reference
Battery CCA950Reference
Battery volts12Reference
Battery GroupSAE31Reference
Test results
Diesel 12-speed 4WDOctober 1996 - 1996, Link: OCED Tractor Test 1791 fileReference
Drawbar performanceReference
Fuel use81.8 l/hourReference
Gear 1M used for power test.Reference
Max pull19851 kgReference
Gear 1L used for pull test.Reference
Speeds
With 20.8R42 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
