Tractor · 2000Unverified

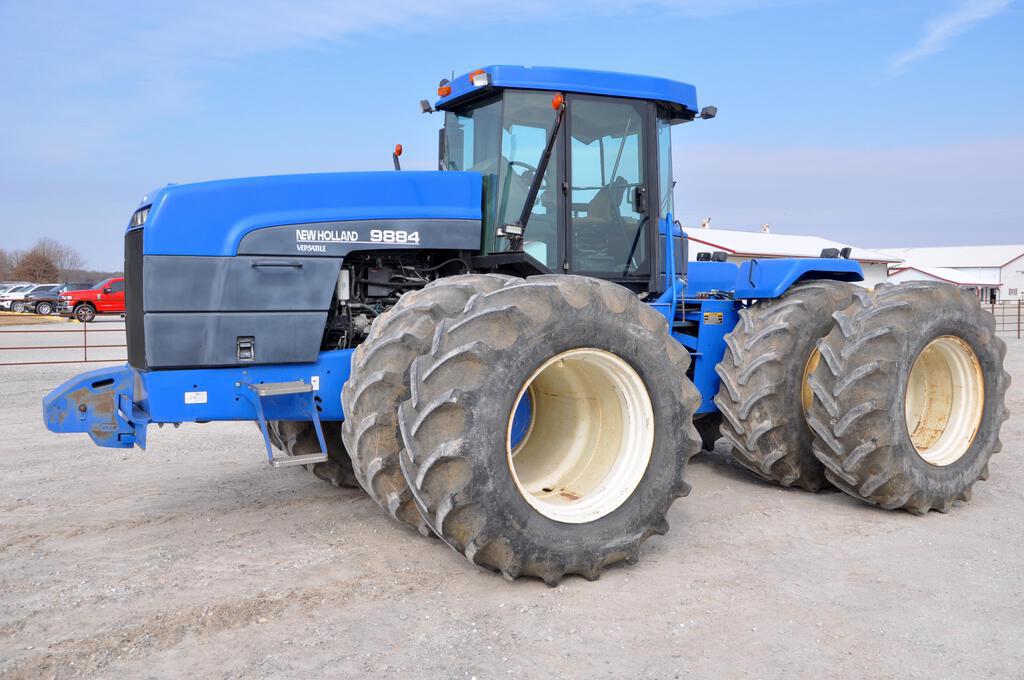

New Holland 9884
New Holland 9884 — 84 Series · 425 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
425 hp
Weight
9176 kg
Hover a source tag to verify
Overview
DistributorNew HollandReference
ManufacturerVersatileReference
Four-wheel Drive (4WD) tractorReference
Built in Winnipeg, Manitoba, CanadaReference
Four-wheel driveReference
Final drivesplanetaryReference
Articulated power steeringReference
Hydraulic disc brakesReference
Cab standard with air-conditioning.Reference
Engine
Cummins 14.0L 6-cyl dieselReference
Engine (gross)316.9 kWReference
Cummins N14Reference
turbocharged aftercooled dieselReference
6-cylinderReference
liquid-cooled inlineReference
Displacement14.0 LReference
Bore/Stroke140 x 152 mmReference
Power (gross)316.9 kWReference
Air cleanerdual paper elementsReference
Compression16.5:1Reference
Rated RPM2100Reference
Idle RPM825-2400Reference
Torque1898.4 NmReference
Torque RPM1400Reference
Firing order1-5-3-6-2-4Reference
Starter volts12Reference
Oil capacity38.7 LReference
Coolant capacity60.0 LReference
Transmission
12-speed partially synchronizedReference
TransmissionQuadrasyncReference
Typepartially synchronizedReference
Gears12 forward and 4 reverseReference
Clutchhydraulic wet discReference
Four synchronized gears in three ranges, plus reverse range. Gears may be shifted on the move, using the clutch. Tractor must be stopped, and clutch used, to shift range.Reference
Capacities
Fuel870.6 LReference
PTO & Hydraulics
Hydraulic system75.7 LReference
Hydraulic system124.9 LReference
Typeclosed centerReference
Capacity75.7 LReference
Capacity124.9 LReference
Pressure155.1 barReference
Valves4Reference
Pump flow189.2 lpmReference
SCV flow113.6 lpmReference
Steering flow102.2 lpmReference
Steering press.172.4 barReference
Rear TypeIVN/IIIReference
Rear lift (at 24"/610mm)5896 kgReference
DrawbarCat. 4Reference
Rear PTOindependentReference
Clutchelectro-hydraulic wet discReference
Rear PTO Type1000 (1.75)Reference
Engine RPM1000@2100Reference
Dimensions
Wheelbase337 cmReference
Weight9176 kgReference
Front tire20.8-42Reference
Rear tire20.8-42Reference
Ag front20.8-42Reference
Ag rear20.8-42Reference
Length675 cmReference
Width382 cmReference
Height (cab)349 cmReference
Height (exhaust)373 cmReference
Shipping weight9176 kgReference
Max weight19958 kgReference
9884 Serial Numbers
Location:Serial number plate mounted on the tractor cab's left, rear, corner.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps130Reference
Batteries3Reference
Battery CCA950Reference
Battery volts12Reference
Speeds
With 20.8-42 tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
