Backhoe Loader · 2008Unverified

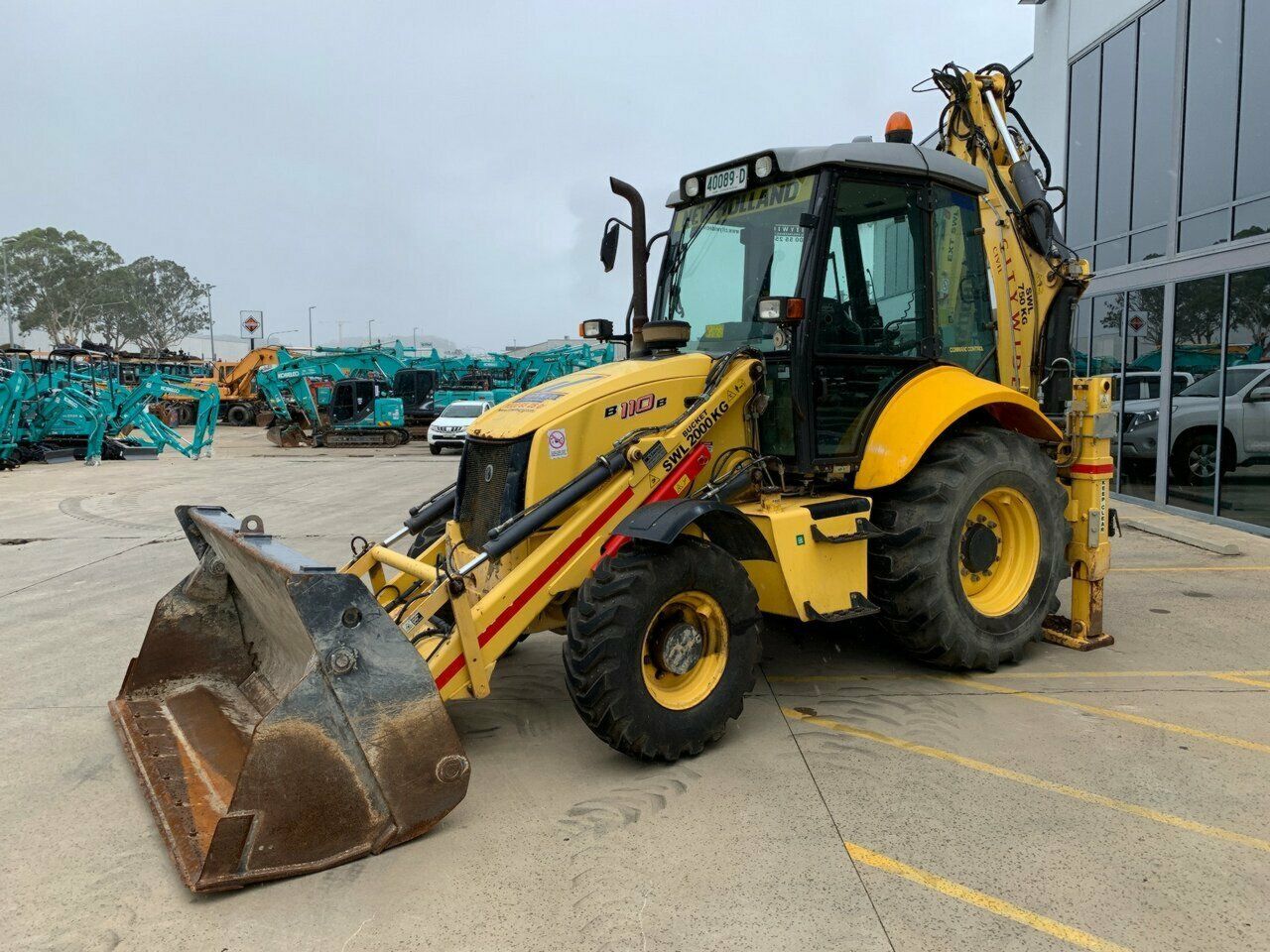

New Holland B110B
New Holland B110B — Backhoe loader tractor · 110 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
110 hp
Weight
15533 to 16316 pounds
Hover a source tag to verify
Overview
ManufacturerNew HollandReference
Backhoe loader tractorReference
Two- or four-wheel driveReference
Final drivesplanetaryReference
Power steeringReference
Hydraulic wet disc brakesReference
Four-post ROPS/FOPS. Cab optional with air-conditioning.Reference
Engine
FPT 4.5L 4-cyl dieselReference
Engine (gross)82.0 kWReference
Engine (net)80.5 kWReference
FPT 445TA/83Reference
turbocharged aftercooled dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.5 LReference
Bore/Stroke104 x 132 mmReference
EmissionsTier IIIReference
Power (net)80.5 kWReference
Power (gross)82.0 kWReference
Fuel systemelectronic high-pressure common railReference
Rated RPM2200Reference
Torque516.6 NmReference
Torque RPM1400Reference
StarterelectricReference
Starter volts12Reference
Oil capacity14.0 LReference
Oil change500 hReference
Coolant capacity24.0 LReference
Transmission
4-speed power shuttleReference
4-speed power shiftReference
TransmissionTurnerReference
Typepower shuttleReference
Gears4 forward and reverseReference
Fully-synchronized transmission with torque converter and power shuttle.Reference
Typepower shiftReference
Gears4 forward and 2 reverseReference
Capacities
Fuel134.4 LReference
PTO & Hydraulics
Hydraulic system117.3 LReference
Typeopen centerReference
Capacity117.3 LReference
Pressure210.0 barReference
Pump flow159.0 lpmReference
Dimensions
Wheelbase217 cmReference
Weight15533 to 16316 poundsReference
Front tire14-17.5Reference
Rear tire21L-24Reference
Lawn/turf front12-16.5Reference
Lawn/turf rear19.5L-24Reference
Industrial front14-17.5Reference
Industrial rear21L-24Reference
Industrial rear16.9-28Reference
Length701 cmReference
Width228 cmReference
Height (cab)287 cmReference
Height (backhoe)381 cmReference
2WD ROPS Weight7045 kgReference
4WD Cab Weight7400 kgReference
Ground clearance39 cmReference
Backhoe & Loader
Dump angle114 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps90Reference
Batteries1Reference
Batteries2Reference
Battery CCA600Reference
Battery CCA900Reference
Battery volts12Reference
Attachment overview
Front-end loaderReference
BackhoeReference
New Holland Backhoe
Backhoe typeNew Holland BackhoeReference
Transport height381 cmReference
2-Foot flat digging depth464 cmReference
8-Foot flat digging depth429 cmReference
Reach from pivot543 cmReference
Loading height383 cmReference
Bucket Rotation204°Reference
Swing Arc180°Reference
Bucket force5723 kgReference
Dipperstick force3869 kgReference
New Holland HED Backhoe
Backhoe typeNew Holland HED BackhoeReference
2-Foot flat digging depth (retracted stick)467 cmReference
2-Foot flat digging depth (extended stick)571 cmReference
8-Foot flat digging depth (retracted stick)429 cmReference
8-Foot flat digging depth (extended stick)538 cmReference
Reach from pivot (retracted stick)546 cmReference
Reach from pivot (extended stick)640 cmReference
Loading height (retracted stick)383 cmReference
Loading height (extended stick)449 cmReference
Bucket Rotation204°Reference
Swing Arc180°Reference
Bucket force (retracted stick)5723 kgReference
Bucket force (extended stick)5723 kgReference
Dipperstick force (retracted stick)3873 kgReference
Dipperstick force (extended stick)2749 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
