Backhoe Loader · 2008Unverified

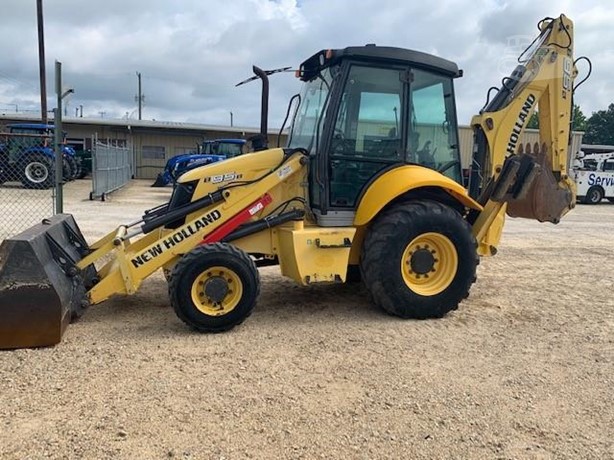

New Holland B95B TC
New Holland B95B TC — Backhoe loader tractor · 97 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
97 hp
Weight
17352 to 18135 pounds
Hover a source tag to verify
Overview
ManufacturerNew HollandReference
Backhoe loader tractorReference
Two- or four-wheel driveReference
Final drivesplanetaryReference
Power steeringReference
Hydraulic wet disc brakesReference
Four-post ROPS/FOPS. Cab optional with air-conditioning.Reference
Variants
B95BstandardReference
B95B TCTool CarrierReference
B95B LRLong ReachReference
Engine
FPT 4.5L 4-cyl dieselReference
Engine (gross)72.3 kWReference
Engine (net)67.9 kWReference
FPT 445TA/E3Reference
turbocharged dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.5 LReference
Bore/Stroke104 x 132 mmReference
EmissionsTier IIIReference
Power (net)67.9 kWReference
Power (gross)72.3 kWReference
Fuel systemelectronic high-pressure common railReference
Rated RPM2200Reference
Torque452.9 NmReference
Torque RPM1400Reference
StarterelectricReference
Starter volts12Reference
Oil capacity14.0 LReference
Oil change500 hReference
Coolant capacity24.0 LReference
Transmission
4-speed power shuttleReference
TransmissionTurnerReference
Typepower shuttleReference
Gears4 forward and reverseReference
Fully-synchronized transmission with torque converter and power shuttle.Reference
Capacities
Fuel134.4 LReference
PTO & Hydraulics
Hydraulic system117.3 LReference
Typeopen centerReference
Capacity117.3 LReference
Pressure210.0 barReference
Pump flow151.4 lpmReference
Dimensions
Wheelbase217 cmReference
Weight17352 to 18135 poundsReference
Front tire12-16.5Reference
Rear tire19.5L-24Reference
Industrial front12-16.5Reference
Industrial rear19.5L-24Reference
Length731 cmReference
Width226 cmReference
Height (cab)287 cmReference
Height (backhoe)381 cmReference
2WD ROPS Weight7870 kgReference
4WD Cab Weight8226 kgReference
Ground clearance39 cmReference
Backhoe & Loader
Dump angle114 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps90Reference
Batteries1Reference
Batteries2Reference
Battery CCA600Reference
Battery CCA900Reference
Battery volts12Reference
Attachment overview
Front-end loaderReference
BackhoeReference
New Holland Backhoe
Backhoe typeNew Holland BackhoeReference
Transport height381 cmReference
2-Foot flat digging depth436 cmReference
8-Foot flat digging depth396 cmReference
Reach from pivot518 cmReference
Loading height365 cmReference
Bucket Rotation204°Reference
Swing Arc180°Reference
Bucket force5711 kgReference
Dipperstick force3767 kgReference
New Holland HED Backhoe
Backhoe typeNew Holland HED BackhoeReference
2-Foot flat digging depth (retracted stick)452 cmReference
2-Foot flat digging depth (extended stick)543 cmReference
8-Foot flat digging depth (retracted stick)414 cmReference
8-Foot flat digging depth (extended stick)518 cmReference
Reach from pivot (retracted stick)530 cmReference
Reach from pivot (extended stick)665 cmReference
Loading height (retracted stick)375 cmReference
Loading height (extended stick)447 cmReference
Bucket Rotation204°Reference
Swing Arc180°Reference
Bucket force (retracted stick)6012 kgReference
Bucket force (extended stick)6012 kgReference
Dipperstick force (retracted stick)3706 kgReference
Dipperstick force (extended stick)2691 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
