Tractor · 2008Unverified

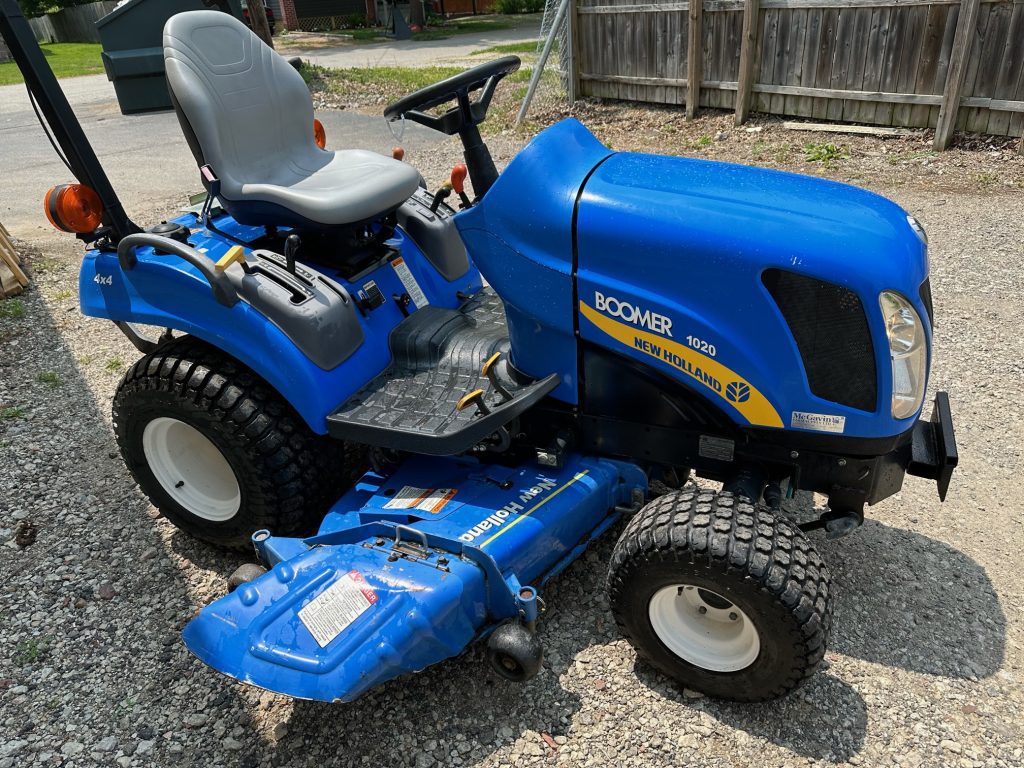

New Holland Boomer 1020

Name: New Holland Boomer 1020
Brand: New Holland

New Holland Boomer 1020 — Boomer 1000 Series · 20 hp. Reference specifications; pending source verification.

The New Holland Boomer 1020 is a compact tractor, boasting a rated output of 20 hp. It was manufactured from 2008 to 2011 and features a 3-cylinder diesel liquid-cooled engine that powers four-wheel drive through a hydrostatic transmission. The listed weight of the Boomer 1020 is 659 kg. It is designed to handle jobs of up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

20 hp

Max power

20 hp

Weight

659 kg

Catalogue coverage

Variants represented

Richest spec table

106 rows

Recorded power

20 hp

Recorded weight

659 kg

Transmissions

hydrostatic

Production years

2008-2011

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerNew Holland (a part of CNH)Reference

Sub-Compact Utility tractorReference

Original price was $10,560 in 2009Reference

Four-wheel driveReference

Power steeringReference

Mechanical wet disc brakesReference

Two-post folding ROPS. Canopy optional.Reference

Engine

Shibaura 1.0L 3-cyl dieselReference

Fuel tank26.9 LReference

Engine (gross)14.9 kWReference

Shibaura S753Reference

dieselReference

3-cylinderReference

liquid-cooled inlineReference

Displacement1.0 LReference

Bore/Stroke75 x 72 mmReference

Power (gross)14.9 kWReference

Pre-heatingglow plugsReference

Rated RPM3000Reference

StarterelectricReference

Starter volts12Reference

Oil capacity4.0 LReference

Fuel TypedieselReference

No of Cylinders3 cylinderReference

Rated engine speed3,000 RPMReference

Cooling systemliquid-cooledReference

Transmission

hydrostaticReference

TypehydrostaticReference

Gearsinfinite forward and reverse (2-range)Reference

Transmission TypeHSTReference

forward and reverse optionsHydrostatic - Infinite (2-range) F and Infinite (2-range) RReference

Wheel Drive4WDReference

PTO & Hydraulics

PTO (claimed)11.6 kWReference

Typeopen centerReference

Pressure127.5 barReference

Pump flow14.2 lpmReference

Total flow21.2 lpmReference

Steering flow7.0 lpmReference

Rear TypeIReference

Rear lift (at ends)716 kgReference

Rear lift (at 24"/610mm)317 kgReference

Rear PTOindependentReference

Rear PTO Type540 (1.375)Reference

Mid PTOindependentReference

Mid PTO Type2200Reference

Dimensions

Wheelbase139 cmReference

Weight659 kgReference

Weight317 kgReference

Industrial front18x8.5-8 4PRReference

Industrial rear26x12.00-12 4PRReference

Length245 cmReference

Width117 cmReference

Height (ROPS)183 cmReference

Ground clearance18 cmReference

Front tread92 cmReference

Rear tread86 cmReference

New Holland Boomer 1020 attachments

60" mid-mount mower deckReference

60" rear-mount mower deckReference

snowblowerReference

front-end loaderReference

backhoeReference

Electrical

Charging systemalternatorReference

Charging amps40Reference

Battery CCA325Reference

Battery volts12Reference

Attachment overview

60" mid-mount mower deckReference

60" rear-mount mower deckReference

SnowblowerReference

Front-end loaderReference

BackhoeReference

With a Category I three-point hitch and 540 rear PTO the Boomer 1020 can accept a variety of standard implement attachments. Factory-listed attachments include the rear-mounted 310GM finish mower and 48-inch 714GC rotary cutter. The 48BL box blade, 110GP post-hole digger, and 60SL rear blade were available for dirt work. Two rear tillers are factory-listed; the 105A-40" and 105A-52". Also available is the 47CO front-mounted rotary broom and 60LR landscape rake.Reference

New Holland 910GH Backhoe

Backhoe typeNew Holland 910GH BackhoeReference

Bucket width22 cmReference

Bucket width30 cmReference

Bucket width40 cmReference

2-Foot flat digging depth184 cmReference

Reach from pivot256 cmReference

Loading height149 cmReference

Bucket force1185 kgReference

Dipperstick force689 kgReference

General

Make & ModelNew HollandReference

Rollover protective structureFoldable ROPS. Canopy optional.Reference

Capacities

Capacity58.2 ciReference

Crankcase oil volume4.2 qtsReference

Power

Max Power20 hpReference

PTO

PTO Power15.5 hpReference

Rear PTO PowerAvailableReference

Rear PTO RPM540 RPMReference

Mid PTO RPM2,200 RPMReference

Steering & brakes

Brakesmechanical wet discReference

Steering typePowerReference

Hydraulics

Pump Rated Output (total)5.6 gpmReference

Hydraulics TypeOpen CenterReference

Maximum operating pressure1,849 psiReference

Steering & Implements flow1.85 gpm (3.75 gpm)Reference

Rear Hitch category (SAE designation)Category IReference

Rear Hitch maximum lift capacity716.7 kgReference

Dimensions & weight

Height Over ROPS183.9 cmReference

Overall Length245.4 cmReference

Overall Width117.9 cmReference

Overall weight660 kgReference

Wheels & tyres

Rear Wheel Type26x12.00-12 4PRReference

Rear wheel tread range86.1 cmReference

Front Wheel Type18x8.5-8 4PRReference

Front Wheel tread range92.5 cmReference

Operator station

Cab AvailabilityAvailableReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
