Tractor · 2008Unverified

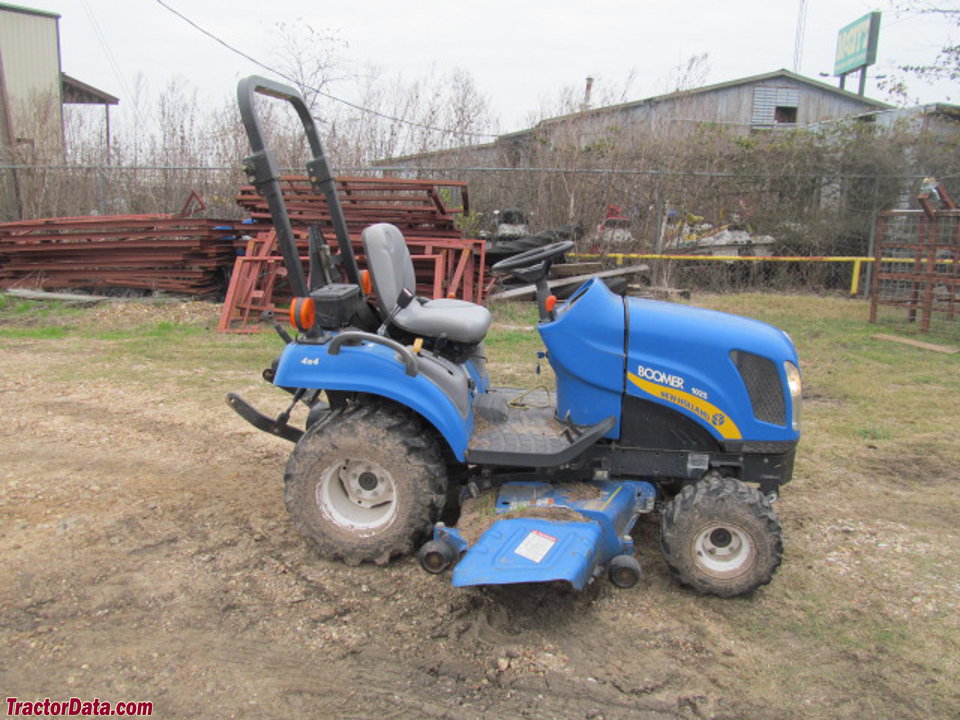

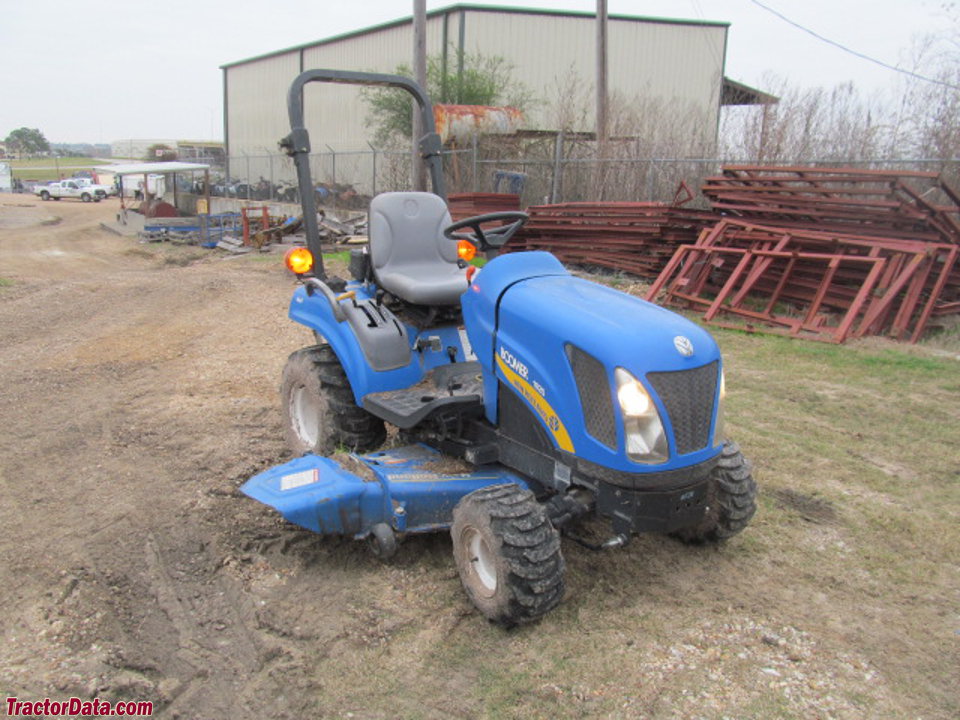

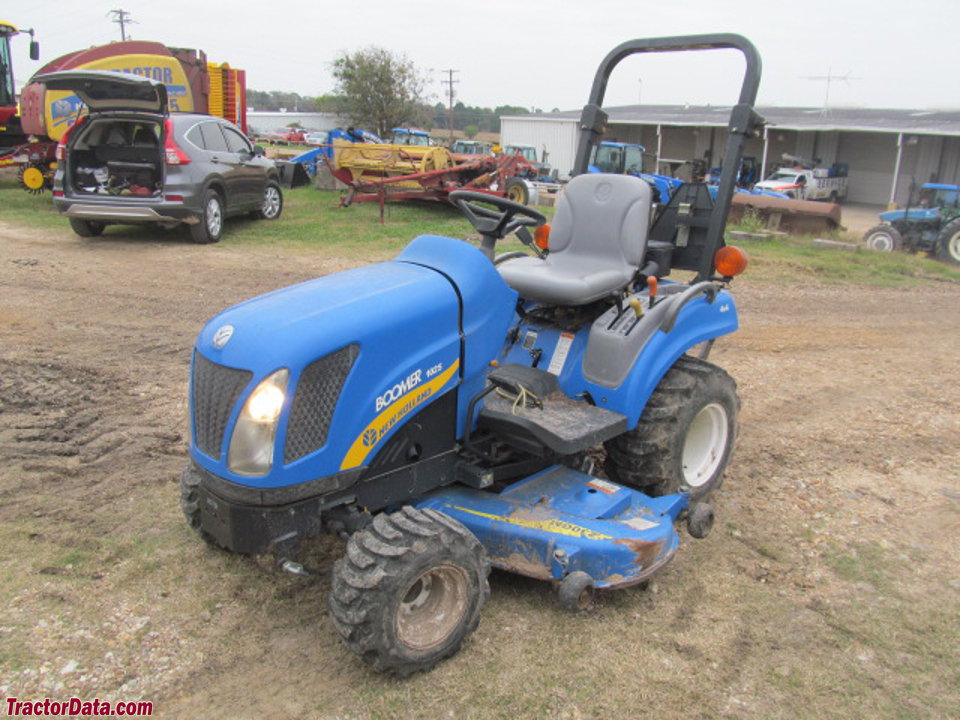

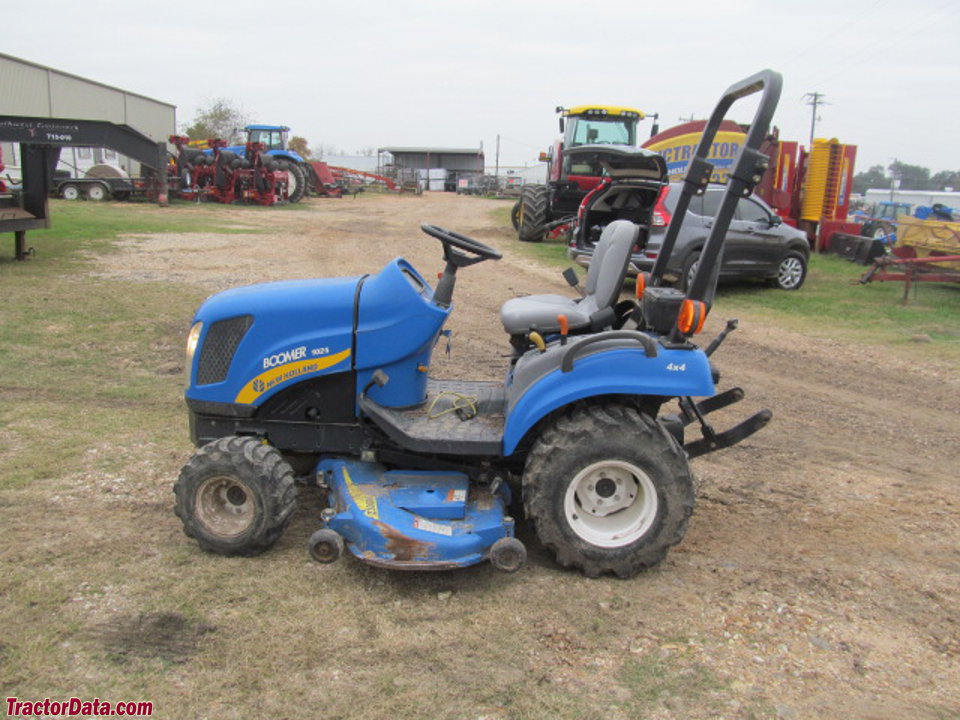

New Holland Boomer 1025
New Holland Boomer 1025 — Boomer 1000 Series · 26 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
26 hp
Weight
659 kg
Hover a source tag to verify
Overview
ManufacturerNew Holland (a part of CNH)Reference
Sub-Compact Utility tractorReference
Original price was $11,286 in 2009Reference
Four-wheel driveReference
Power steeringReference
Mechanical wet disc brakesReference
Two-post folding ROPS. Canopy optional.Reference
Engine
Shibaura 1.1L 3-cyl dieselReference
Fuel tank26.9 LReference
Engine (gross)19.4 kWReference
Shibaura S773LReference
dieselReference
3-cylinderReference
liquid-cooled inlineReference
Displacement1.1 LReference
Bore/Stroke77 x 81 mmReference
Power (gross)19.4 kWReference
Pre-heatingglow plugsReference
Rated RPM3000Reference
StarterelectricReference
Starter volts12Reference
Oil capacity4.0 LReference
Transmission
hydrostaticReference
TypehydrostaticReference
Gearsinfinite forward and reverse (2-range)Reference
PTO & Hydraulics
PTO (claimed)14.7 kWReference
Typeopen centerReference
Pressure127.5 barReference
Pump flow14.2 lpmReference
Total flow21.2 lpmReference
Steering flow7.0 lpmReference
Rear TypeIReference
Rear lift (at ends)716 kgReference
Rear lift (at 24"/610mm)317 kgReference
Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Mid PTOindependentReference
Mid PTO Type2200Reference
Dimensions
Wheelbase139 cmReference
Weight659 kgReference
Weight317 kgReference
Industrial front18x8.5-8 4PRReference
Industrial rear26x12.00-12 4PRReference
Length245 cmReference
Width117 cmReference
Height (ROPS)183 cmReference
Ground clearance18 cmReference
Front tread92 cmReference
Rear tread86 cmReference
New Holland Boomer 1025 attachments
60" mid-mount mower deckReference
60" rear-mount mower deckReference
snowblowerReference
front-end loaderReference
backhoeReference
Electrical
Charging systemalternatorReference
Charging amps40Reference
Battery CCA325Reference
Battery volts12Reference
Attachment overview
60" mid-mount mower deckReference
60" rear-mount mower deckReference
SnowblowerReference
Front-end loaderReference
BackhoeReference
In addition to the 60-inch finish mowers, New Holland listed the Boomer 1025 as compatible with the 48-inch 714GC rotary cutter. Three regular blades were fitted, the 54CB or 60CB front-mount plus the 60SL rear-mount, along with the 48BL box blade. The 105A-40" or 105A-52" rear-mounted tillers can be fitted for soil preparation. Other factory-listed Boomer 1025 attachments include the 110GP post-hole digger, 60LR landscape rake, and 47CO rotary broom.Reference
New Holland 910GH Backhoe
Backhoe typeNew Holland 910GH BackhoeReference
Bucket width22 cmReference
Bucket width30 cmReference
Bucket width40 cmReference
2-Foot flat digging depth184 cmReference
Reach from pivot256 cmReference
Loading height149 cmReference
Bucket force1185 kgReference
Dipperstick force689 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
