Tractor · 2008Unverified

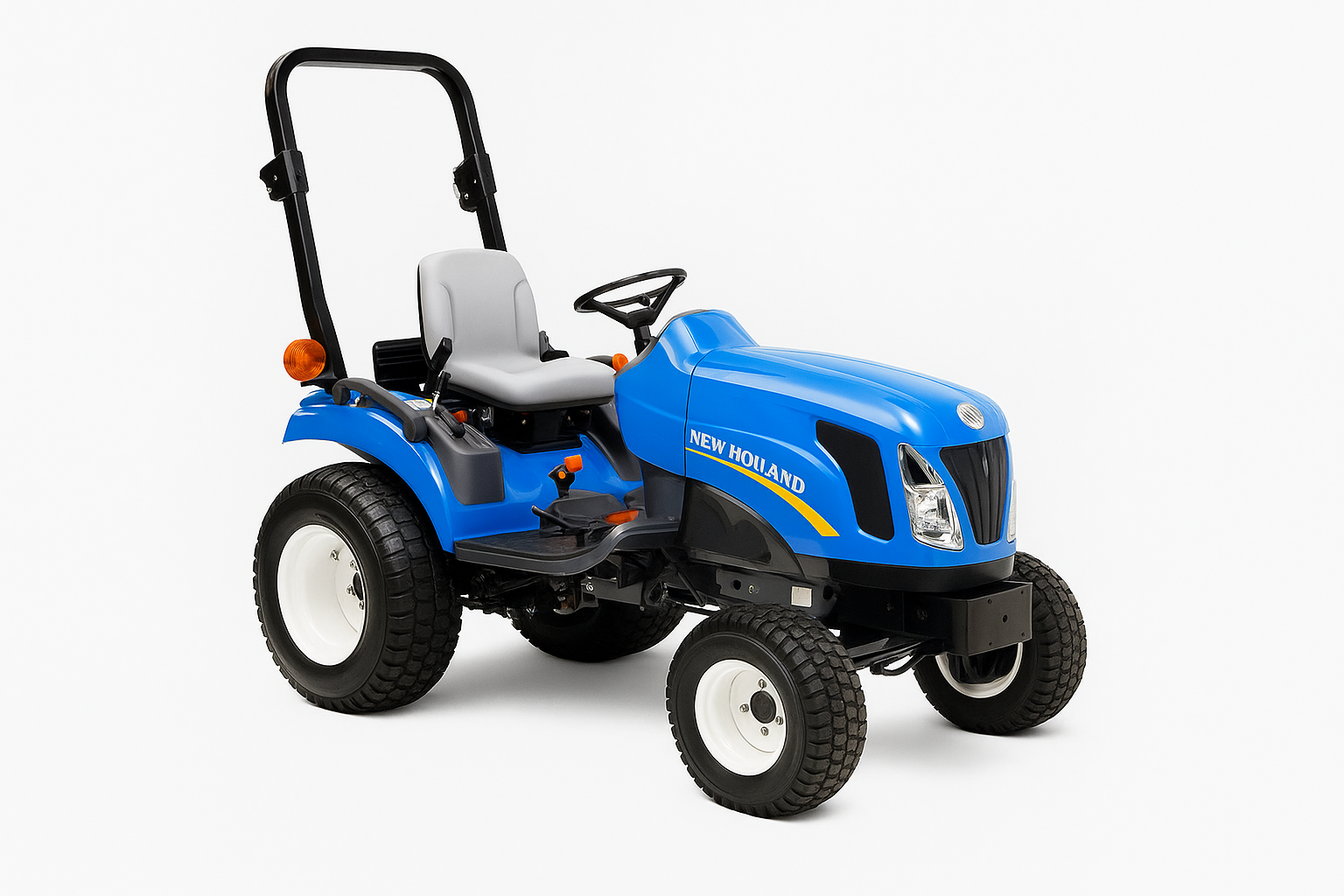

New Holland Boomer 1030
New Holland Boomer 1030 — Boomer 1000 Series · 28 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
28 hp
Weight
676 kg
Hover a source tag to verify
Overview
ManufacturerNew Holland (a part of CNH)Reference
Sub-Compact Utility tractorReference
Original price was $12,842 in 2009Reference
Four-wheel driveReference
Power steeringReference
Mechanical wet disc brakesReference
Two-post folding ROPS. Canopy optional.Reference
Engine
Shibaura 1.1L 3-cyl dieselReference
Fuel tank26.9 LReference
Engine (gross)20.9 kWReference
Shibaura S773LReference
dieselReference
3-cylinderReference
liquid-cooled inlineReference
Displacement1.1 LReference
Bore/Stroke77 x 81 mmReference
Power (gross)20.9 kWReference
Pre-heatingglow plugsReference
Rated RPM3100Reference
StarterelectricReference
Starter volts12Reference
Oil capacity4.0 LReference
Transmission
hydrostaticReference
TypehydrostaticReference
Gearsinfinite forward and reverse (2-range)Reference
PTO & Hydraulics
PTO (claimed)16.2 kWReference
Typeopen centerReference
Pressure127.5 barReference
Pump flow17.6 lpmReference
Total flow24.6 lpmReference
Steering flow7.0 lpmReference
Rear TypeIReference
Rear lift (at ends)716 kgReference
Rear lift (at 24"/610mm)453 kgReference
Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Mid PTOindependentReference
Mid PTO Type2200Reference
Dimensions
Wheelbase146 cmReference
Weight676 kgReference
Weight317 kgReference
Industrial front20x10.0-10 4PRReference
Industrial rear29x12.5-15 4PRReference
Length250 cmReference
Width132 cmReference
Height (ROPS)193 cmReference
Ground clearance19 cmReference
Front tread84 cmReference
Rear tread89 cmReference
New Holland Boomer 1030 attachments
60" mid-mount mower deckReference
60" rear-mount mower deckReference
snowblowerReference
front-end loaderReference
backhoeReference
Electrical
Charging systemalternatorReference
Charging amps40Reference
Battery CCA325Reference
Battery volts12Reference
Attachment overview
60" mid-mount mower deckReference
60" rear-mount mower deckReference
SnowblowerReference
Front-end loaderReference
BackhoeReference
The New Holland Boomer 1030 was factory-fitted for the 230GM mid-mount finish mower, 310GM rear-mount finish mower, and the 714GC (48-inch) rear-mount rotary cutter. Tillers were available in 40 and 52 inch widths (model 105A). Front-mounted 1030 attachments include the 60CB blade, 836GS snow blower, and 526GR rotary broom.Reference
New Holland 910GH Backhoe
Backhoe typeNew Holland 910GH BackhoeReference
Bucket width22 cmReference
Bucket width30 cmReference
Bucket width40 cmReference
2-Foot flat digging depth184 cmReference
Reach from pivot256 cmReference
Loading height149 cmReference
Bucket force1185 kgReference
Dipperstick force689 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
