Tractor · 2012Unverified

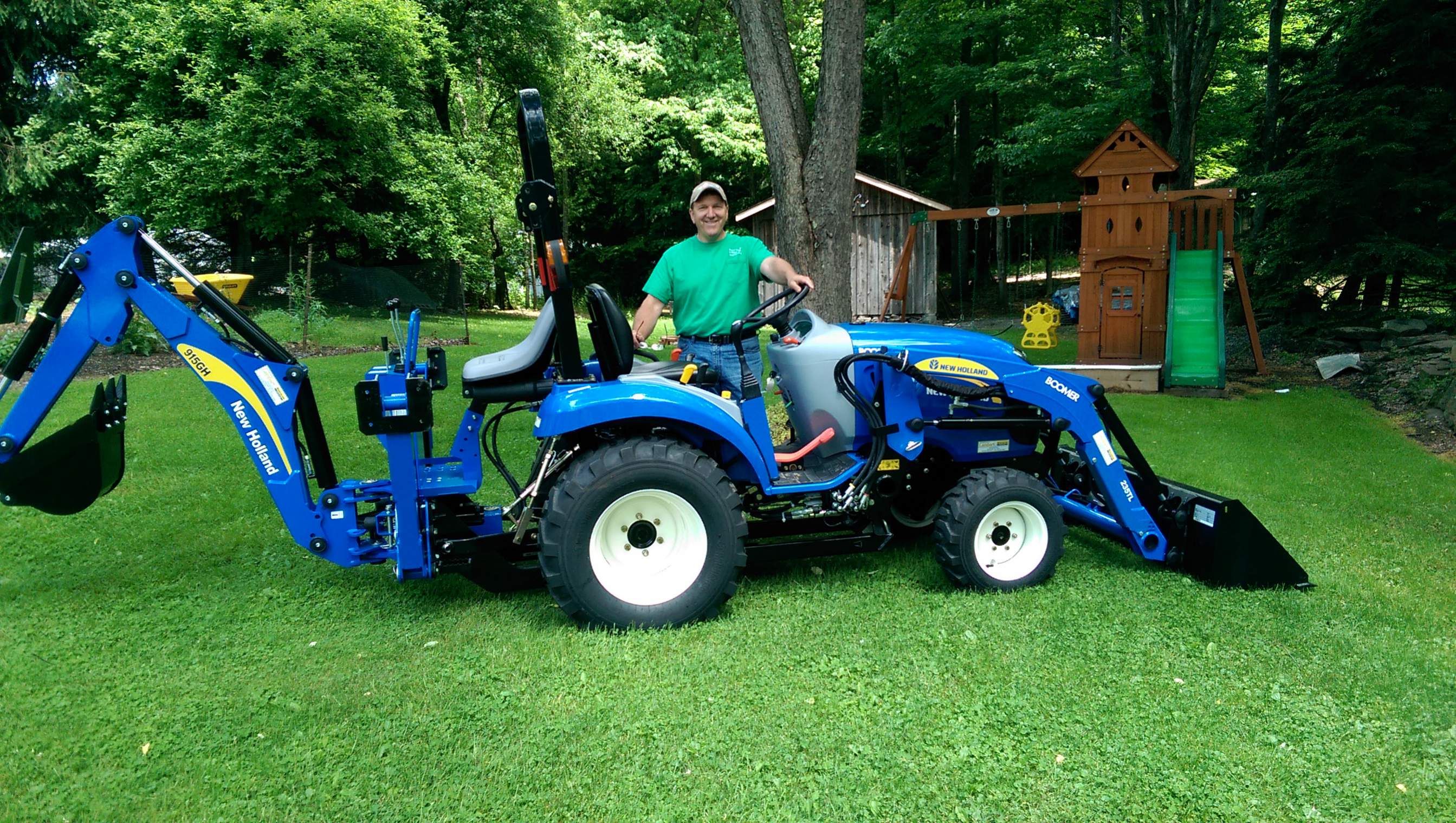

New Holland Boomer 20
New Holland Boomer 20 — Boomer Series · 23 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
23 hp
Weight
772 kg
Hover a source tag to verify
Overview
ManufacturerNew HollandReference
Sub-Compact Utility tractorReference
Four-wheel driveReference
Differential lockmechanical rearReference
Differential locklimited-slip front differentialReference
Steeringhydrostatic powerReference
Mechanical wet disc brakesReference
Two-post foldable ROPS.Reference
Engine
Mitsubishi 1.1L 3-cyl dieselReference
Fuel tank25.0 LReference
Engine (gross)17.2 kWReference
Mitsubishi S3LReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.1 LReference
Bore/Stroke78 x 78 mmReference
EmissionsInterim Tier 4Reference
Power (gross)17.2 kWReference
Fuel systemmechanical indirect injectionReference
Air cleanerSingle element, dry typeReference
Pre-heatingglow plugsReference
Rated RPM2700Reference
StarterelectricReference
Starter volts12Reference
Transmission
hydrostaticReference
TypehydrostaticReference
Gearsinfinite forward and reverse (2-range)Reference
Two-range hydrostatic transmission with treddle foot pedal and cruise control.Reference
PTO & Hydraulics
PTO (claimed)12.3 kWReference
TypeOpen center, fixed displacement gear pumpReference
Rear valves1 (optional)Reference
Pump flow22.7 lpmReference
Total flow32.2 lpmReference
Steering flow9.5 lpmReference
Rear TypeIReference
Controlmechanical position controlReference
Rear lift (at ends)650 kgReference
Rear lift (at 24"/610mm)479 kgReference
Rear Armsfixed link endsReference
Drawbar1-position fixedReference
Rear PTOindependentReference
Clutchelectro-hydraulicReference
Rear PTO Type540Reference
Mid PTOindependentReference
Mid PTO Type2000Reference
Dimensions
Wheelbase149 cmReference
Weight772 kgReference
Front tire6-12Reference
Rear tire9.5-16Reference
Standard tires (ag)Front: 6-12. Rear: 9.5-16Reference
Length263 cmReference
Width111 cmReference
Height (ROPS)217 cmReference
Shipping weight772 kgReference
New Holland Boomer 20 attachments
front-end loaderReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps50Reference
Charging volts12Reference
Battery CCA560Reference
Battery volts12Reference
Battery AH45Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
