Tractor · 2008Unverified

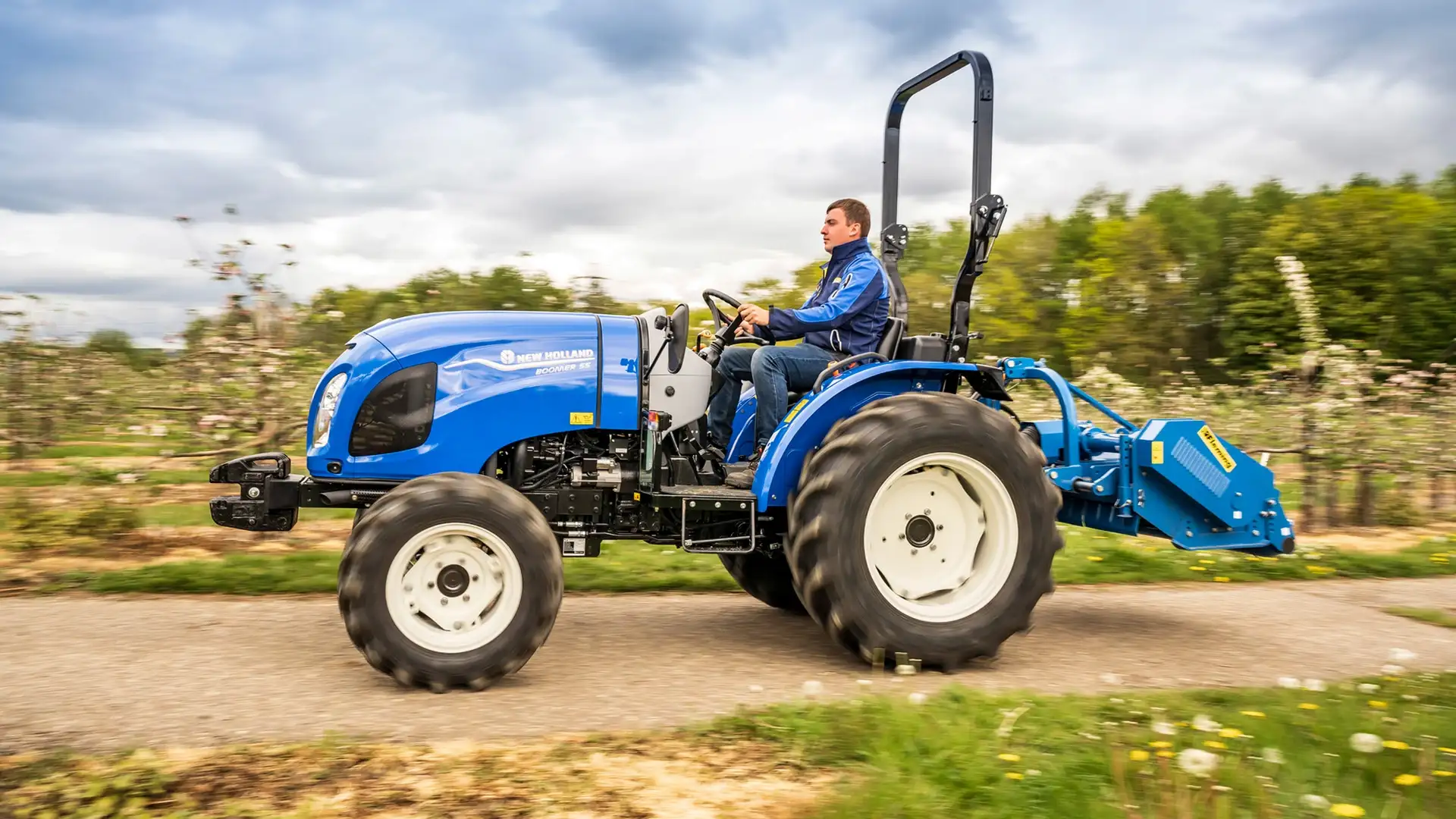

New Holland Boomer 2030

Name: New Holland Boomer 2030
Brand: New Holland

New Holland Boomer 2030 — Boomer 2000 Series · 31 hp. Reference specifications; pending source verification.

The New Holland Boomer 2030 is a tractor with a rated output of 31 hp — making it one of the more compact options in its class. It was produced from 2008 to 2010. It is powered by a 3-cylinder diesel liquid-cooled engine, driving through four-wheel drive with a hydrostatic transmission. Listed weight is 1181 kg, and it is aimed at jobs of around up to 200 ac. Available dimensions and performance figures follow in both unit systems.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

31 hp

Max power

31 hp

Weight

1181 kg

Catalogue coverage

Variants represented

Richest spec table

133 rows

Recorded power

31 hp

Recorded weight

1181 kg

Transmissions

hydrostatic

Production years

2008-2010

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerNew HollandReference

Compact Utility tractorReference

Original price was $18,808 in 2009Reference

Four-wheel driveReference

Differential lockmechanical rearReference

Power steeringReference

Mechanical wet disc brakesReference

Two-post folding ROPS. Canopy optional.Reference

Engine

Shibaura 1.5L 3-cyl dieselReference

Fuel tank27.6 LReference

Engine (gross)23.1 kWReference

Shibaura N843Reference

dieselReference

3-cylinderReference

liquid-cooledReference

Displacement1.5 LReference

Bore/Stroke84 x 90 mmReference

Power (gross)23.1 kWReference

Pre-heatingglow plugsReference

Rated RPM2600Reference

StarterelectricReference

Starter volts12Reference

Oil capacity4.5 LReference

Fuel TypedieselReference

No of Cylinders3 cylinderReference

Rated engine speed2,600 RPMReference

Cooling systemliquid-cooledReference

Transmission

hydrostaticReference

9-speed gearReference

TypehydrostaticReference

Gearsinfinite forward and reverse (3-range)Reference

TypegearReference

Gears9 forward and 3 reverseReference

Transmission TypeHSTReference

Wheel Drive4WDReference

PTO & Hydraulics

PTO (claimed)19.8 kWReference

PTO (claimed)18.6 kWReference

Typeopen centerReference

Pressure147.1 barReference

Pump flow27.3 lpmReference

Total flow46.6 lpmReference

Steering flow19.3 lpmReference

Rear TypeIReference

Rear lift (at ends)873 kgReference

Rear lift (at 24"/610mm)741 kgReference

Rear PTOindependentReference

Rear PTO Type540 (1.375)Reference

Mid PTOindependentReference

Mid PTO Type2200Reference

Dimensions

Wheelbase160 cmReference

Wheelbase17 cmReference

Weight1181 kgReference

Front tire7-14Reference

Rear tire11.2-24Reference

Weight396 kgReference

Weight444 kgReference

Ag front7-14 6PRReference

Ag rear11.2-24 4PRReference

Length285 cmReference

Length292 cmReference

Width157 cmReference

Height (ROPS)215 cmReference

Ground clearance28 cmReference

Ground clearance17 cmReference

Front tread109 to 118 cmReference

Rear tread108 to 121 cmReference

New Holland Boomer 2030 attachments

60" mid-mount mower deckReference

72" mid-mount mower deckReference

front-end loaderReference

backhoeReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps40Reference

Battery CCA325Reference

Battery volts12Reference

Total cold cranking amps325 CCAReference

Attachment overview

60" mid-mount mower deckReference

72" mid-mount mower deckReference

Front-end loaderReference

BackhoeReference

New Holland lists three mid-mount mowers for the Boomer 2030: 914A-60" side discharge, 914A-72" side discharge, and the 914A-72" rear discharge. Two rear-mounted finish mowers are matched (310GM and 320GM) along with four rotary cutters (736GC, 737GC, 716GC, and 717GC). The 736GC and 717GC are 60-inch while the 717GC and 737GC are 72-inch. Front-mounted attachments include the 72CB blade, 63CSH snowblower, and two rotary brooms (60CO and 70CO).Reference

New Holland 920GH Backhoe

Backhoe typeNew Holland 920GH BackhoeReference

Bucket width22 cmReference

Bucket width30 cmReference

Bucket width40 cmReference

Bucket width45 cmReference

Bucket width60 cmReference

Bucket width91 cmReference

2-Foot flat digging depth228 cmReference

Reach from pivot312 cmReference

Loading height177 cmReference

Bucket force1263 kgReference

Dipperstick force916 kgReference

New Holland 930GH Backhoe

Backhoe typeNew Holland 930GH BackhoeReference

Bucket width22 cmReference

Bucket width30 cmReference

Bucket width40 cmReference

Bucket width45 cmReference

Bucket width60 cmReference

Bucket width91 cmReference

2-Foot flat digging depth259 cmReference

Reach from pivot340 cmReference

Loading height203 cmReference

Bucket force1859 kgReference

Dipperstick force966 kgReference

General

Make & ModelNew HollandReference

Cruise controlAvailableReference

SCV controlJoystickReference

Rollover protective structureFoldable ROPS. Canopy optional.Reference

Capacities

Capacity91.3 ciReference

Crankcase oil volume4.8 qtsReference

Power

Max Power31 hpReference

PTO

PTO Power26.5 hpReference

Rear PTO PowerAvailableReference

Rear PTO RPM540 RPMReference

Mid PTO RPM2,200 RPMReference

Steering & brakes

Brakesmechanical wet discReference

Steering typePowerReference

Hydraulics

Pump Rated Output (total)12.3 gpmReference

Hydraulics TypeOpen CenterReference

Maximum operating pressure2,133 psiReference

Steering & Implements flow5.1 gpm (7.2 gpm)Reference

Rear Hitch category (SAE designation)Category IReference

Rear Hitch maximum lift capacity873.2 kgReference

Dimensions & weight

Height Over ROPS215.6 cmReference

Overall Length292.9 cmReference

Overall Width157.5 cmReference

Overall weight1,181.6 kgReference

Wheels & tyres

Rear Wheel Type11.2-24 4PRReference

Rear wheel tread range42.8 to 47.9 inchesReference

Front Wheel Type7-14 6PRReference

Front Wheel tread range43.3 to 46.7 inchesReference

Operator station

Cab AvailabilityAvailableReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
