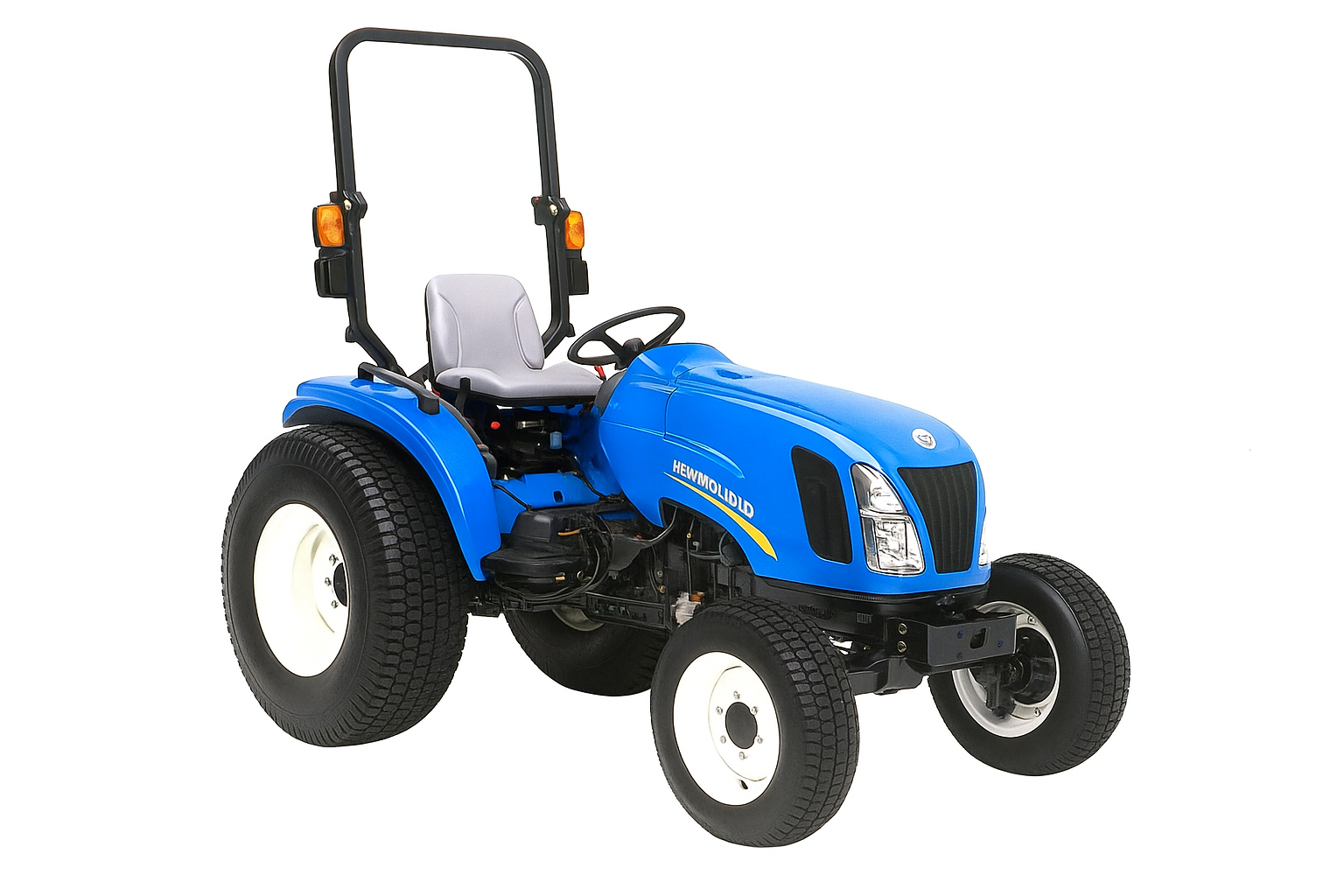

New Holland Boomer 2035

Name: New Holland Boomer 2035
Brand: New Holland

New Holland Boomer 2035 — Boomer 2000 Series · 35 hp. Reference specifications; pending source verification.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

35 hp

Weight

1188 kg

Hover a source tag to verify

Overview

ManufacturerNew HollandReference

Compact Utility tractorReference

Original price was $19,508 in 2009Reference

Four-wheel driveReference

Differential lockmechanical rearReference

Power steeringReference

Mechanical wet disc brakesReference

Two-post folding ROPS. Canopy optional.Reference

Engine

Shibaura 1.7L 3-cyl dieselReference

Fuel tank27.6 LReference

Engine (gross)26.1 kWReference

Shibaura N843LReference

dieselReference

3-cylinderReference

liquid-cooledReference

Displacement1.7 LReference

Bore/Stroke84 x 100 mmReference

Power (gross)26.1 kWReference

Pre-heatingglow plugsReference

Rated RPM2600Reference

StarterelectricReference

Starter volts12Reference

Oil capacity4.5 LReference

Transmission

hydrostaticReference

TypehydrostaticReference

Gearsinfinite forward and reverse (3-range)Reference

PTO & Hydraulics

PTO (claimed)21.6 kWReference

Typeopen centerReference

Pressure147.1 barReference

Pump flow27.3 lpmReference

Total flow46.6 lpmReference

Steering flow19.3 lpmReference

Rear TypeIReference

Rear lift (at ends)873 kgReference

Rear lift (at 24"/610mm)741 kgReference

Rear PTOindependentReference

Rear PTO Type540 (1.375)Reference

Mid PTOindependentReference

Mid PTO Type2200Reference

Dimensions

Wheelbase160 cmReference

Wheelbase17 cmReference

Weight1188 kgReference

Front tire7-14Reference

Rear tire11.2-24Reference

Weight396 kgReference

Weight444 kgReference

Ag front7-14 6PRReference

Ag rear11.2-24 4PRReference

Length285 cmReference

Length292 cmReference

Width157 cmReference

Height (ROPS)215 cmReference

Ground clearance28 cmReference

Ground clearance17 cmReference

Front tread109 to 118 cmReference

Rear tread108 to 121 cmReference

New Holland Boomer 2035 attachments

60" mid-mount mower deckReference

72" mid-mount mower deckReference

front-end loaderReference

backhoeReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps40Reference

Battery CCA325Reference

Battery volts12Reference

Attachment overview

60" mid-mount mower deckReference

72" mid-mount mower deckReference

Front-end loaderReference

BackhoeReference

Front-mounted for the Boomer 2035 attachments include the 72CB blade, 63CSH snowblower, and two rotary brooms (60CO and 70CO). New Holland lists three mid-mount mowers for the 2035: 914A-60" side discharge, 914A-72" side discharge, and the 914A-72" rear discharge. Two rear-mounted finish mowers are matched (310GM and 320GM) along with four rotary cutters (736GC, 737GC, 716GC, and 717GC). The 736GC and 717GC are 60-inch while the 717GC and 737GC are 72-inch. The 105A rear-mount tiller is compatible in three sizes (52, 60, and 72 inch).Reference

New Holland 920GH Backhoe

Backhoe typeNew Holland 920GH BackhoeReference

Bucket width22 cmReference

Bucket width30 cmReference

Bucket width40 cmReference

Bucket width45 cmReference

Bucket width60 cmReference

Bucket width91 cmReference

2-Foot flat digging depth228 cmReference

Reach from pivot312 cmReference

Loading height177 cmReference

Bucket force1263 kgReference

Dipperstick force916 kgReference

New Holland 930GH Backhoe

Backhoe typeNew Holland 930GH BackhoeReference
