Tractor · 2014Unverified

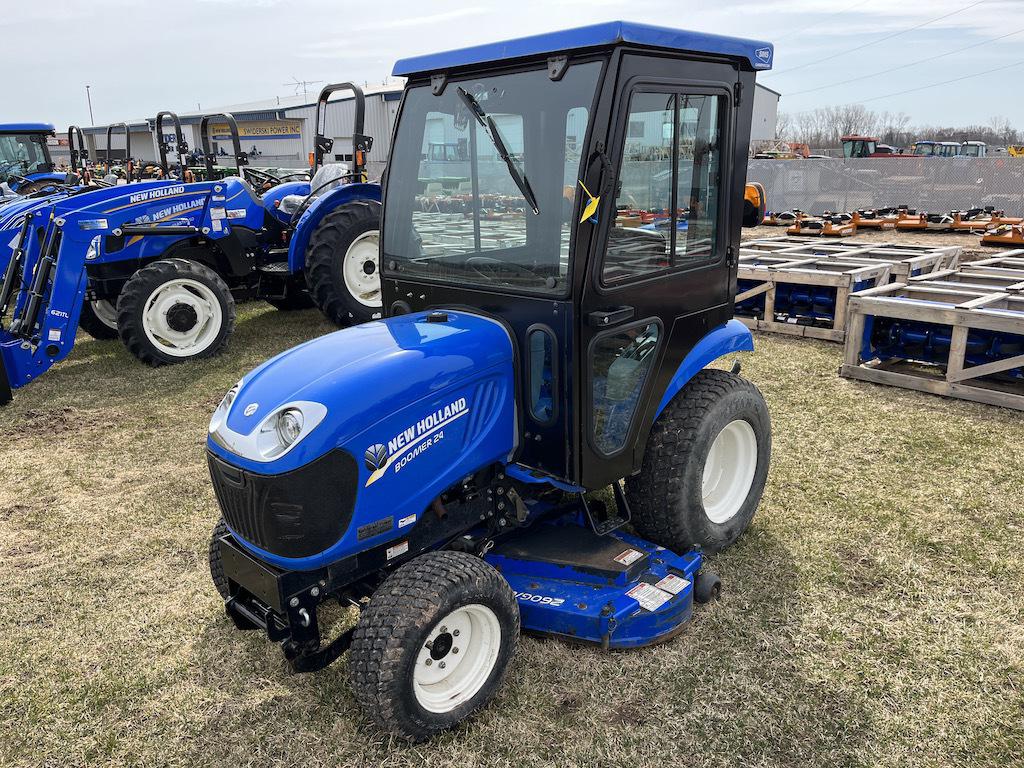

New Holland Boomer 24
New Holland Boomer 24 — Boomer Series · 24 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
24 hp
Weight
830 kg
Hover a source tag to verify
Overview
DistributorNew Holland (a part of CNH)Reference
ManufacturerLSReference
Sub-Compact Utility tractorReference
Original price was $14,418 in 2014Reference
Four-wheel driveReference
Differential lockmechanical rearReference
Power steeringReference
Mechanical wet disc brakesReference
Two-post folding ROPS.Reference
Engine
Mitsubishi 1.3L 3-cyl dieselReference
Fuel tank25.0 LReference
Engine (gross)17.9 kWReference
Mitsubishi S3L2Reference
dieselReference
3-cylinderReference
liquid-cooled inlineReference
Displacement1.3 LReference
Bore/Stroke78 x 92 mmReference
EmissionsTier IVReference
Power (gross)17.9 kWReference
Air cleanerdry elementReference
Pre-heatingglow plugsReference
Rated RPM2700Reference
StarterelectricReference
Starter volts12Reference
Transmission
hydrostaticReference
TypehydrostaticReference
Gearsinfinite forward and reverse (2-range)Reference
PTO & Hydraulics
PTO (claimed)12.5 kWReference
Typeopen centerReference
Rear valves1Reference
Mid valves2Reference
Pump flow25.4 lpmReference
Total flow36.3 lpmReference
Steering flow11.0 lpmReference
Rear TypeIReference
Rear lift (at ends)650 kgReference
Rear Armsfixed link endsReference
Rear PTOindependentReference
Clutchelectro-hydraulicReference
Rear PTO Type540 (1.375)Reference
Mid PTOindependentReference
Mid PTO Type2000Reference
Dimensions
Wheelbase149 cmReference
Weight830 kgReference
Weight244 kgReference
Weight483 kgReference
Lawn/turf front23x8.50-12Reference
Lawn/turf rear33x12-16.5Reference
Industrial front23x8.50-12Reference
Industrial rear12-16.5Reference
Length263 cmReference
Width111 cmReference
Height (ROPS)217 cmReference
Shipping weight830 kgReference
Flange rear axleReference
Front tread91 cmReference
Rear tread96 cmReference
New Holland Boomer 24 attachments
60" mid-mount mower deckReference
snowblowerReference
bladeReference
front-end loaderReference
backhoeReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps50Reference
Battery CCA560Reference
Battery volts12Reference
Battery AH45Reference
Attachment overview
60" mid-mount mower deckReference
SnowblowerReference
BladeReference
Front-end loaderReference
BackhoeReference
60" Mower deck
Typemid-mount New Holland 260GMSReference
Type3-bladeReference
Cutting width152 cmReference
Overall width187 cmReference
Cut height4 to 11 cmReference
New Holland 915GBH Backhoe
Backhoe typeNew Holland 915GBH BackhoeReference
Transport height177 cmReference
Bucket width25 cmReference
Bucket width30 cmReference
Bucket width40 cmReference
Digging depth203 cmReference
Reach from pivot274 cmReference
Loading height167 cmReference
Bucket Rotation178°Reference
Swing Arc150°Reference
Bucket force1124 kgReference
Dipperstick force793 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
