Tractor · 2011Unverified

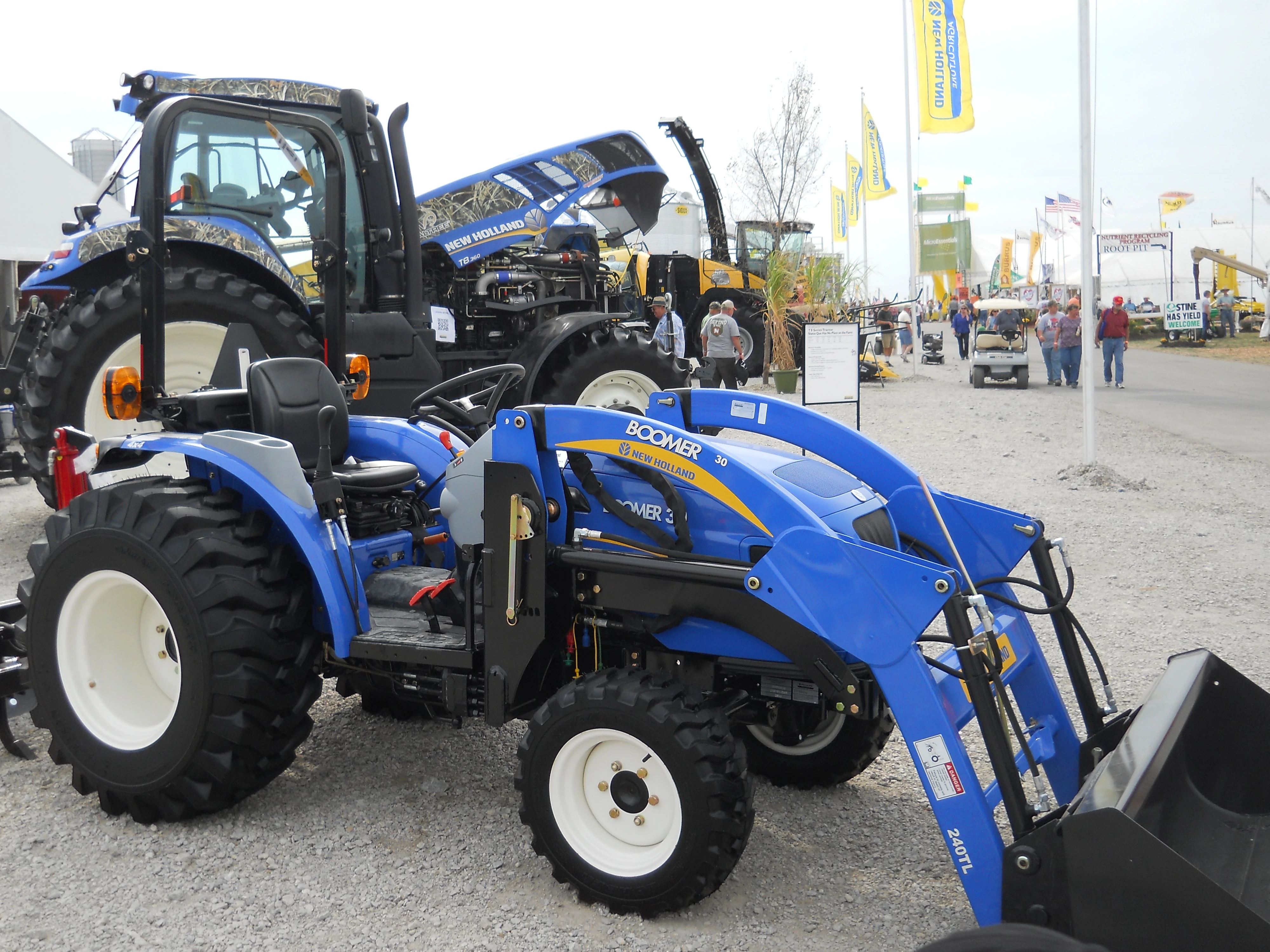

New Holland Boomer 30
New Holland Boomer 30 — Boomer Series · 28 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
28 hp
Weight
1321 kg
Hover a source tag to verify
Overview
ManufacturerNew HollandReference
Compact Utility tractorReference
Original price was $13,837 in 2010Reference
Four-wheel driveReference
Differential lockmechanical rearReference
Power steeringReference
Differential mechanical wet disc brakesReference
Two-post folding ROPS.Reference
Engine
Mitsubishi 1.5L 4-cyl dieselReference
Fuel tank32.9 LReference
Engine (gross)20.9 kWReference
Mitsubishi S4LReference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement1.5 LReference
EmissionsTier 3Reference
Power (gross)20.9 kWReference
Air cleanerdual dry elementReference
Pre-heatingglow plugsReference
Rated RPM2600Reference
StarterelectricReference
Starter volts12Reference
Transmission
12-speed synchronized shuttleReference
hydrostaticReference
Typesynchronized shuttleReference
Gears12 forward and reverseReference
Clutchdry 9.4-inch organic plateReference
TypehydrostaticReference
Gearsinfinite forward and reverse (3-range)Reference
PTO & Hydraulics
Gear PTO (claimed)17.8 kWReference
Hydro PTO (claimed)16.8 kWReference
Typeopen centerReference
Rear valves1Reference
Mid valves2Reference
Pump flow31.0 lpmReference
Total flow46.6 lpmReference
Steering flow15.5 lpmReference
Rear TypeIReference
Rear lift (at ends)819 kgReference
Rear PTOindependentReference
Clutchelectro-hydraulicReference
Rear PTO Type540 (1.375)Reference
Mid PTOindependentReference
Mid PTO Type2000Reference
Dimensions
Wheelbase167 cmReference
Weight1321 kgReference
Front tire7-14Reference
Rear tire11.2-24Reference
Weight256 kgReference
Ag front7-14Reference
Ag rear11.2-24Reference
Lawn/turf front25x8.50-14Reference
Lawn/turf rear41x14.00-20Reference
Industrial front25x8.50-14Reference
Industrial rear43x16.00-14Reference
Length231 cmReference
Width162 cmReference
Shipping weight1321 kgReference
Flange rear axleReference
Front tread115 cmReference
Rear tread128 cmReference
New Holland Boomer 30 attachments
66" mid-mount mower deckReference
front-end loaderReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps50Reference
Charging volts12Reference
Battery CCA660Reference
Battery volts12Reference
Battery AH80Reference
Attachment overview
66" mid-mount mower deckReference
Front-end loaderReference
66" Mower deck
Typemid-mount New Holland 266GMSReference
Type3-blade with hydraulic liftReference
Cutting width167 cmReference
Overall width200 cmReference
Cut height2 to 10 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
