Tractor · 2008Unverified

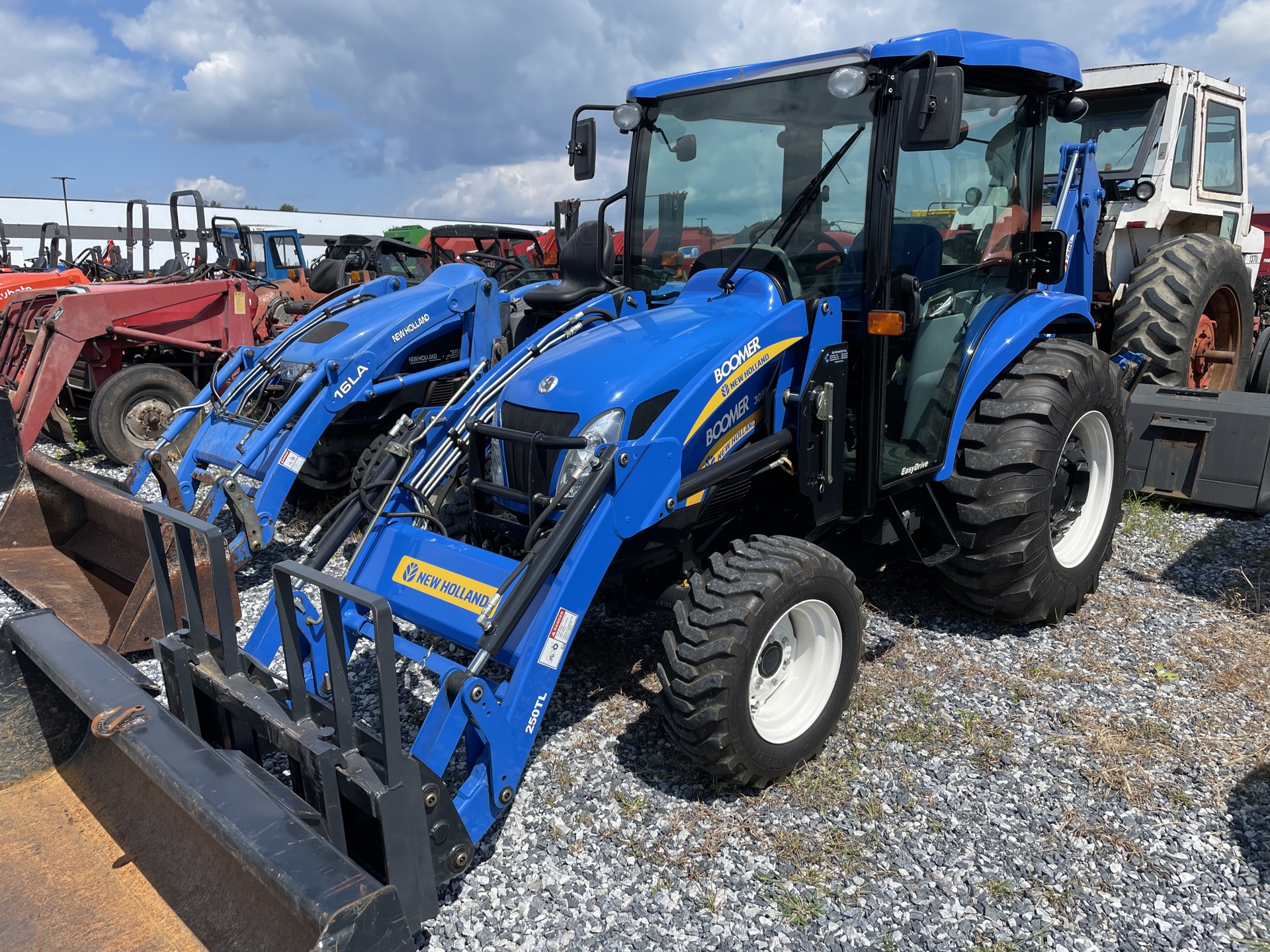

New Holland Boomer 3050

Name: New Holland Boomer 3050
Brand: New Holland

New Holland Boomer 3050 — Model year 2008-20122013-2016 · 50 hp. Reference specifications; pending source verification.

The New Holland Boomer 3050 is a tractor model with a rating of approximately 50 hp, positioning it at the lower end of its class. Produced from 2008 to 2016, the Boomer 3050 is equipped with a 4-cylinder diesel liquid-cooled engine, paired with four-wheel drive and a continuously variable transmission. Its listed operating weight is 1586 kg, suitable for operations up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

50 hp

Max power

50 hp

Weight

1586 kg

Catalogue coverage

Variants represented

Richest spec table

124 rows

Recorded power

50 hp

Recorded weight

1586 kg

Transmissions

12-speed

Production years

2008-2016

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerNew HollandReference

Compact Utility tractorReference

Original price was $23,623 in 2009Reference

Four-wheel driveReference

Steeringhydrostatic powerReference

Mechanical wet disc brakesReference

Foldable ROPS. Canopy optional.Reference

Engine

Shibaura 2.2L 4-cyl dieselReference

Fuel tank49.2 LReference

Engine (gross)37.3 kWReference

Shibaura N844LReference

dieselReference

4-cylinderReference

liquid-cooled inlineReference

Displacement2.2 LReference

Bore/Stroke84 x 100 mmReference

EmissionsTier IIIReference

Power (gross)37.3 kWReference

Pre-heatingglow plugsReference

Rated RPM2800Reference

StarterelectricReference

Starter volts12Reference

Oil capacity6.1 LReference

Fuel TypedieselReference

No of Cylinders4 cylinderReference

Rated engine speed2,800 RPMReference

Emissions complianceTier IIIReference

Bore and stroke3.31x3.54 inchesReference

Cooling systemliquid-cooledReference

Transmission

12-speedReference

continuously variable transmissionReference

TransmissionSynchronized Shuttle ShiftReference

Gears12 forward and reverseReference

TransmissionEasyDrive CVTReference

Typecontinuously variable transmissionReference

Gearsinfinite forward and reverseReference

Transmission TypeCVTReference

Wheel Drive4WDReference

Rear Axle Drive Typeinboard planetaryReference

PTO & Hydraulics

PTO (claimed)32.1 kWReference

Typeopen centerReference

Pressure172.4 barReference

Pump flow37.1 lpmReference

Total flow56.4 lpmReference

Steering flow19.3 lpmReference

Rear TypeIReference

Rear lift (at ends)1485 kgReference

Rear lift (at 24"/610mm)1056 kgReference

Rear PTOindependentReference

Rear PTO Type540Reference

Dimensions

Wheelbase186 cmReference

Weight1586 kgReference

Front tire8-16Reference

Rear tire9-24Reference

Weight396 kgReference

Weight444 kgReference

Standard tires (ag)Front: 8-16. Rear: 9-24Reference

Length309 cmReference

Width173 cmReference

Height (ROPS)247 cmReference

Ground clearance35 cmReference

Front tread117 cmReference

Rear tread120 to 171 cmReference

New Holland Boomer 3050 attachments

front-end loaderReference

backhoeReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps40Reference

Battery CCA600Reference

Battery volts12Reference

Total cold cranking amps600 CCAReference

Attachment overview

Front-end loaderReference

BackhoeReference

New Holland 920GH Backhoe

Backhoe typeNew Holland 920GH BackhoeReference

Bucket width22 cmReference

Bucket width30 cmReference

Bucket width40 cmReference

Bucket width45 cmReference

Bucket width60 cmReference

Bucket width91 cmReference

2-Foot flat digging depth228 cmReference

Reach from pivot312 cmReference

Loading height177 cmReference

Bucket force1263 kgReference

Dipperstick force916 kgReference

New Holland 930GH Backhoe

Backhoe typeNew Holland 930GH BackhoeReference

Bucket width22 cmReference

Bucket width30 cmReference

Bucket width40 cmReference

Bucket width45 cmReference

Bucket width60 cmReference

Bucket width91 cmReference

2-Foot flat digging depth259 cmReference

Reach from pivot340 cmReference

Loading height203 cmReference

Bucket force1859 kgReference

Dipperstick force966 kgReference

General

Make & ModelNew HollandReference

Rear Axle TypeFlangeReference

Capacities

Capacity135.2 ciReference

Crankcase oil volume6.4 qtsReference

Power

Max Power50 hpReference

PTO

PTO Power40 hpReference

Rear PTO PowerAvailableReference

Rear PTO RPM540Reference

Mid PTO RPM2,000 RPMReference

Steering & brakes

BrakesWet disc brakesReference

Steering typePower steeringReference

Hydraulics

Pump Rated Output (total)14.9 gpmReference

Hydraulics Typeopen centerReference

Maximum operating pressure2,500 psiReference

Steering & Implements flow5.4 gpm (9.8 gpm)Reference

Rear Hitch category (SAE designation)Category IReference

Rear Hitch maximum lift capacity1,606.2 kgReference

Rear Hitch Sensing Typetop link draft sensingReference

Dimensions & weight

Height Over Cab229.4 cmReference

Overall Height247.4 cmReference

Overall Length309.9 cmReference

Overall Width173.5 cmReference

Overall weight1,972.7 kgReference

Wheels & tyres

Rear Wheel Type14.9x24Reference

Front Wheel Type8.0x16Reference

Front Wheel tread range117.9 cmReference

Operator station

Cab AvailabilityAvailableReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
