Tractor · 2014Unverified

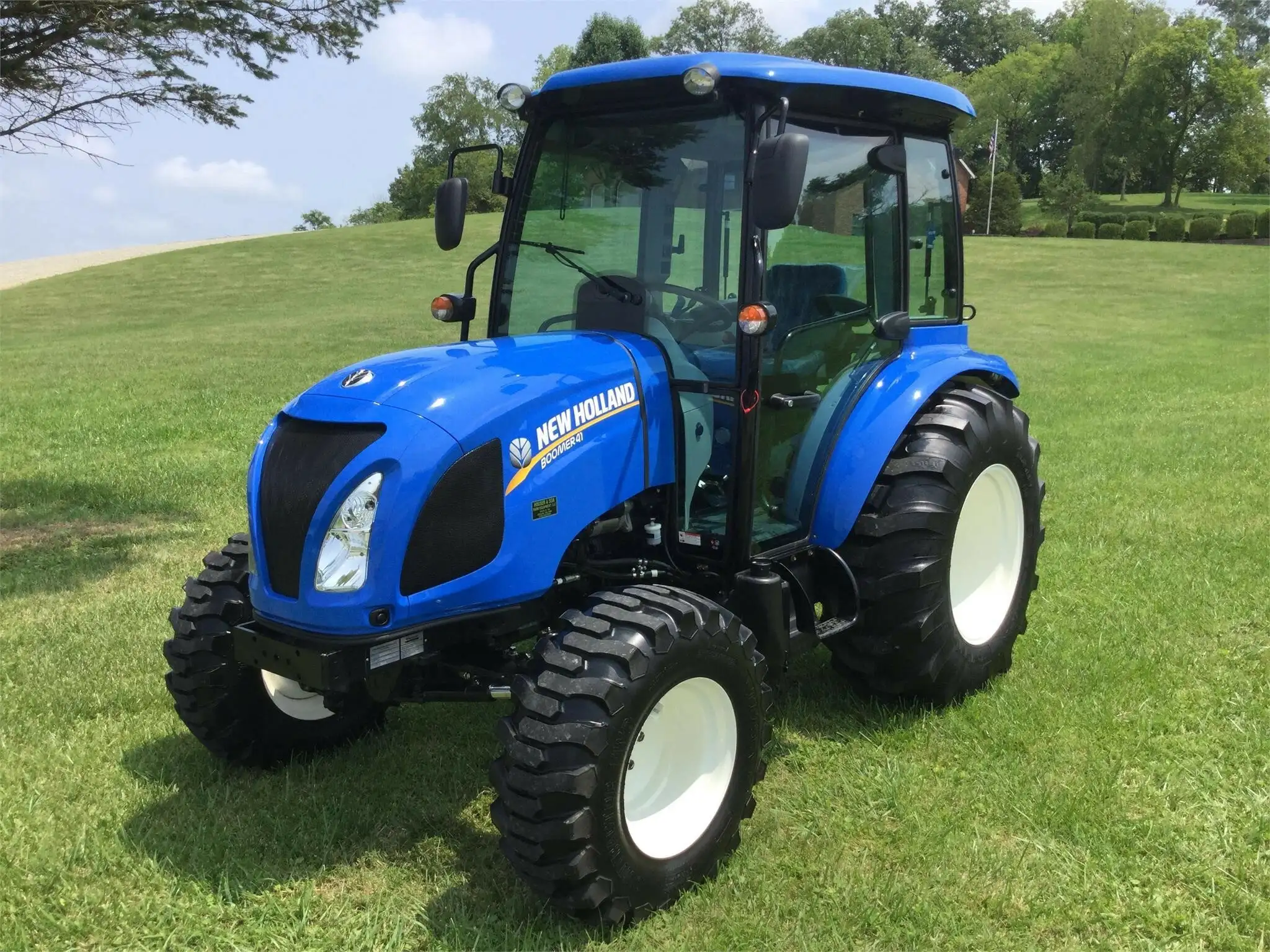

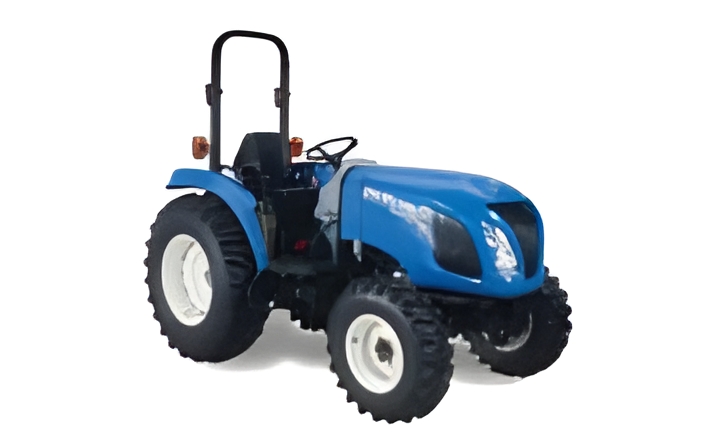

New Holland Boomer 37

Name: New Holland Boomer 37
Brand: New Holland

New Holland Boomer 37 — Boomer Series · 36 hp. Reference specifications; pending source verification.

The New Holland Boomer 37 is a compact tractor with a rated output of 36 hp. It was manufactured from 2014 to 2016 and features a 3-cylinder turbocharged diesel liquid-cooled engine. The tractor has a four-wheel drive system with a hydrostatic transmission, and its listed weight is between 2804 and 2870 pounds. Its intended application is for tasks covering up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

36 hp

Max power

36.2 hp

Weight

2804 to 2870 pounds

Catalogue coverage

Variants represented

Richest spec table

119 rows

Recorded power

36 hp

Transmissions

hydrostatic

Production years

2014-2016

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerNew HollandReference

Compact Utility tractorReference

Original price was $22,042 in 2014Reference

Four-wheel driveReference

Differential lockmechanical rearReference

Power steeringReference

Wet discs brakesReference

Two-post folding ROPS. Cab optional with air-conditioning.Reference

Engine

Shibaura 1.5L 3-cyl dieselReference

Fuel tank39.7 LReference

Engine (gross)27.0 kWReference

Shibaura N843TReference

turbocharged dieselReference

3-cylinderReference

liquid-cooledReference

Displacement1.5 LReference

Bore/Stroke84 x 90 mmReference

EmissionsTier IVReference

Emission controlexhaust gas recirculation, diesel particulate filter, and diesel oxidation catalstReference

Power (gross)27.0 kWReference

Fuel systemindirect injectionReference

Air cleanerdry elementReference

Pre-heatingglow plugsReference

Rated RPM2600Reference

StarterelectricReference

Starter volts12Reference

Fuel TypeDieselReference

No of Cylinders3 cylinderReference

Rated engine speed2,600 RPMReference

Bore and stroke3.307x3.543 inchesReference

Cooling systemliquid-cooledReference

Transmission

hydrostaticReference

12-speed partially synchronized with mechanical shuttleReference

Gear Shipping weight1271 kgReference

TypehydrostaticReference

Gearsinfinite forward and reverse (3-range)Reference

Transmissionsynchronized shuttle shiftReference

Typepartially synchronized with mechanical shuttleReference

Gears12 forward and reverseReference

Four synchronized gears in three non-synchronized ranges. Synchronized mechanical shuttle.Reference

Transmission TypeOption 1: E-HST\\nOption 2: HSTReference

Wheel Drive4WDReference

PTO & Hydraulics

Gear PTO (claimed)23.2 kWReference

Hydro PTO (claimed)21.8 kWReference

Typeopen centerReference

Valves1 or 2Reference

Pump flow31.0 lpmReference

Gear Steering flow15.9 lpmReference

Hydro Steering flow20.1 lpmReference

Rear TypeIReference

Controlposition controlReference

Rear lift (at ends)820 kgReference

Rear lift (at 24"/610mm)610 kgReference

Rear Armsadjustable draft link endsReference

Rear PTOindependentReference

Clutchelectro-hydraulicReference

Rear PTO Type540 (1.375)Reference

Mid PTOindependentReference

Mid PTO Type2000Reference

Dimensions

Wheelbase167 cmReference

Weight2804 to 2870 poundsReference

Front tire7-14Reference

Rear tire11.2-24Reference

Weight196 kgReference

Standard tires (ag)Front: 7-14. Rear: 11.2-24Reference

Lawn/turf front25x8.50-14Reference

Lawn/turf rear41x14.00-20Reference

Industrial front25x8.50-14Reference

Industrial rear43x16.00-20Reference

Length302 cmReference

Width168 cmReference

Height (ROPS)235 cmReference

Hydro Shipping weight1301 kgReference

Flange rear axleReference

Front tread115 cmReference

Rear tread118 cmReference

New Holland Boomer 37 attachments

66" mid-mount mower deckReference

snowblowerReference

bladeReference

front-end loaderReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps85Reference

Battery CCA660Reference

Battery volts12Reference

Battery AH80Reference

Attachment overview

66" mid-mount mower deckReference

SnowblowerReference

BladeReference

Front-end loaderReference

66" Mower deck

Typemid-mount New Holland 366GMSReference

Type3-blade with hydraulic liftReference

Cutting width167 cmReference

Overall width200 cmReference

Cut height2 to 10 cmReference

General

Make & ModelNew HollandReference

Cruise controlAvailableReference

Rear Axle TypeFlangeReference

Rollover protective structureTwo-post foldable ROPSReference

Capacities

Capacity91.3 ciReference

Power

Max Power36.2 hpReference

PTO

PTO Power31.1 hpReference

Rear PTO PowerAvailableReference

Rear PTO RPM540 RPMReference

Mid PTO RPM2,000 RPMReference

Steering & brakes

Brakeswet discsReference

Steering typeHydrostatic PowerReference

Hydraulics

Hydraulics TypeOpen CenterReference

Remote Valves1 or 2 ValvesReference

Steering & Implements flow5.3 gpm (8.2 gpm)Reference

Rear Hitch category (SAE designation)Category IReference

Rear Hitch maximum lift capacity820.1 kgReference

Rear Hitch Sensing Typeposition controlReference

Dimensions & weight

Height Over ROPS235.5 cmReference

Overall Length302.3 cmReference

Overall weight1,301.8 kgReference

Wheels & tyres

Rear Wheel Type11.2x24Reference

Front Wheel Type7x14.Reference

Operator station

Cab AvailabilityAvailableReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
