Tractor · 2011Unverified

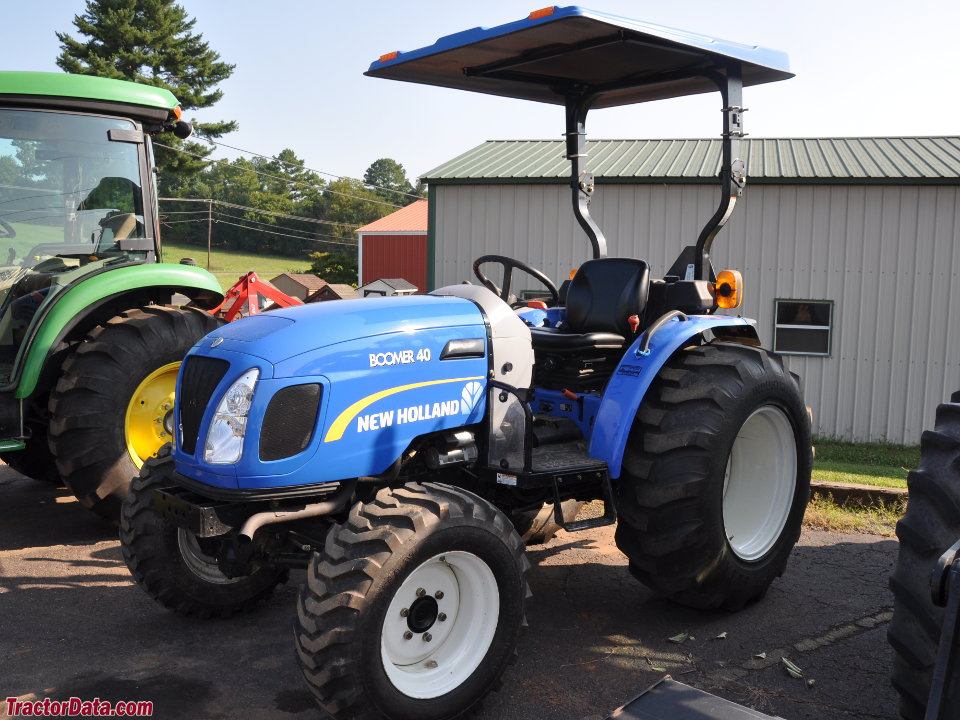

New Holland Boomer 40

Name: New Holland Boomer 40
Brand: New Holland

New Holland Boomer 40 — Boomer Series · 41 hp. Reference specifications; pending source verification.

The New Holland Boomer 40 is a tractor with a rated engine power of approximately 41 hp, positioning it within the lighter end of its class. Manufactured from 2011 to 2013, the Boomer 40 features a 4-cylinder diesel liquid-cooled engine and four-wheel drive with a hydrostatic transmission. It has an operating weight of 1609 kg and is suitable for operations covering up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

41 hp

Max power

40 hp

Weight

1609 kg

Catalogue coverage

Variants represented

Richest spec table

106 rows

Recorded power

41 hp

Recorded weight

1609 kg

Transmissions

16-speed synchronized shuttle

Production years

2011-2013

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerNew HollandReference

Compact Utility tractorReference

Original price was $19,242 in 2010Reference

Four-wheel driveReference

Differential lockmechanical rearReference

Power steeringReference

Differential mechanical wet disc brakesReference

Two-post folding ROPS.Reference

Engine

Mitsubishi 2.5L 4-cyl dieselReference

Fuel tank36.0 LReference

Engine (gross)30.6 kWReference

Mitsubishi S4Q2Reference

dieselReference

4-cylinderReference

liquid-cooledReference

Displacement2.5 LReference

EmissionsTier 3Reference

Power (gross)30.6 kWReference

Air cleanerdual dry elementReference

Pre-heatingglow plugsReference

Rated RPM2600Reference

StarterelectricReference

Starter volts12Reference

Fuel TypeDieselReference

No of Cylinders3Reference

Rated engine speed2,600 rpmReference

Emissions complianceT4B FinalReference

AspirationTurboReference

Transmission

16-speed synchronized shuttleReference

hydrostaticReference

Typesynchronized shuttleReference

Gears16 forward and reverseReference

Clutchdry 11-inch organic plateReference

TypehydrostaticReference

Gearsinfinite forward and reverse (3-range)Reference

Transmission TypeGearReference

Wheel Drive4WDReference

PTO & Hydraulics

Gear PTO (claimed)25.6 kWReference

Hydro PTO (claimed)24.5 kWReference

Typeopen centerReference

Rear valves1Reference

Mid valves2Reference

Pump flow31.0 lpmReference

Gear Total flow46.6 lpmReference

Hydro Total flow51.9 lpmReference

Gear Steering flow15.5 lpmReference

Hydro Steering flow20.8 lpmReference

Rear TypeIReference

Rear lift (at ends)1250 kgReference

Rear PTOindependentReference

Clutchelectro-hydraulicReference

Rear PTO Type540 (1.375)Reference

Mid PTOindependentReference

Mid PTO Type2000Reference

Dimensions

Wheelbase175 cmReference

Weight1609 kgReference

Front tire9.5-16Reference

Rear tire13.6-24Reference

Weight268 kgReference

Ag front9.5-16Reference

Ag rear13.6-24Reference

Lawn/turf front29x12.50-15Reference

Lawn/turf rear41x14.00-20Reference

Industrial front10-16.5Reference

Industrial rear43x16.00-24Reference

Length307 cmReference

Width162 cmReference

Shipping weight1609 kgReference

Flange rear axleReference

Front tread131 cmReference

Rear tread113 cmReference

New Holland Boomer 40 attachments

72" mid-mount mower deckReference

front-end loaderReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps50Reference

Charging volts12Reference

Battery CCA660Reference

Battery volts12Reference

Battery AH80Reference

Alternator size70 ampsReference

Questions

I want to lift round hay bail and by tractor just won't lift. I am looking at upgrading to a 40 HP New Holland Boomer 40 which I am being told has a 1900 lb lifting capacity. Can you provide your opinion on whether this tractor would have what I need to lift a 4 X 5 hay bale. Probably. The 250 TL loader on the Boomer 40 was advertised with a 1,940 pound lift capacity, but that is at the pin: the point where the forks/bucket attach to the loader. The center of the bale is going to be at least two feet further out which reduces the lift capacity. The lift capacity at 500mm (about 20 inches) from the pins is 1,370 pounds. Hay bales can vary in weight by hundred of pounds for a particular size, but the extension services gives an estimate of 700 to 1,000 pounds for a 4x5 round bale.Reference

Attachment overview

72" mid-mount mower deckReference

Front-end loaderReference

72" Mower deck

Typemid-mount New Holland 272GMSReference

Type3-blade with hydraulic liftReference

Cutting width182 cmReference

Overall width215 cmReference

Cut height2 to 10 cmReference

Power

Max Power40 hpReference

PTO

PTO Power34.4 hpReference

Rear PTO PowerAvailableReference

Rear PTO ControlIndependent Electro-Hydraulic EngagementReference

Rear PTO RPM540 rpmReference

General

Cruise controlStandard HSTReference

Steering & brakes

BrakesWet, Multi-DiscReference

Steering typePower SteeringReference

Hydraulics

Pump Rated Output (total)46.9 l/minReference

Remote Valves1Reference

Steering & Implements flow4.2 gpm (8.2 gpm)Reference

Rear Hitch category (SAE designation)3-Point Hitch | Category IReference

Rear Hitch maximum lift capacity820.1 kgReference

Dimensions & weight

Height Over Cab235.5 cmReference

Height Over ROPS235.5 cmReference

Overall Length302.3 cmReference

Overall weight1,271.9 kgReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
