Tractor · 2014Unverified

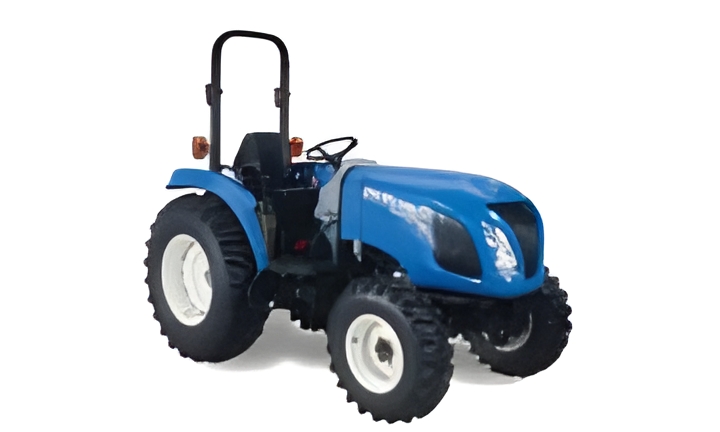

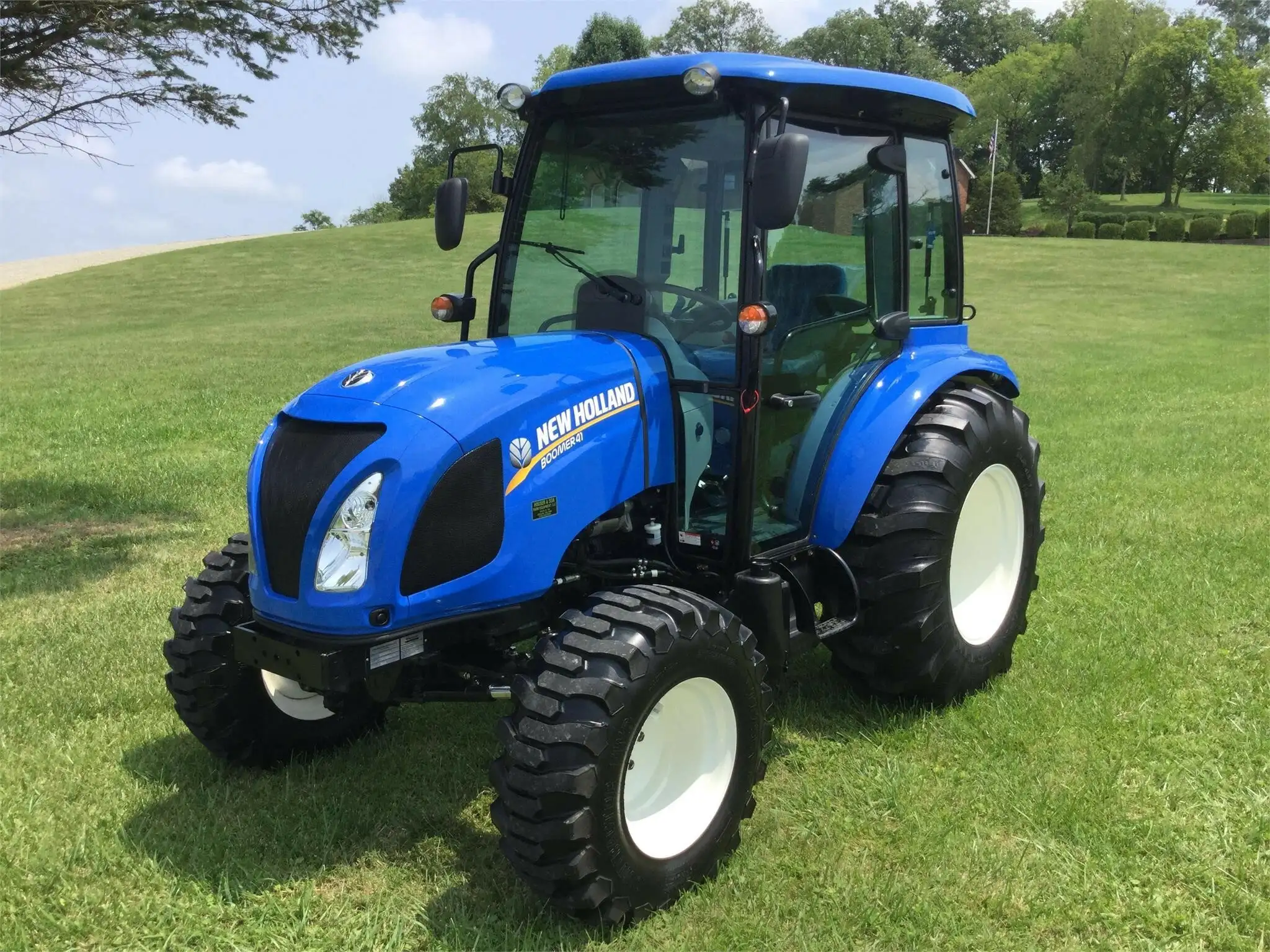

New Holland Boomer 41

Name: New Holland Boomer 41
Brand: New Holland

New Holland Boomer 41 — Boomer Series · 40 hp. Reference specifications; pending source verification.

The New Holland Boomer 41 is a tractor with a rated power output of 40 hp, categorising it at the lighter end of its class. It was manufactured from 2014 to 2016, and is equipped with a 4-cylinder diesel liquid-cooled engine paired with four-wheel drive and a hydrostatic transmission. The tractor has an operating weight of 3424 to 3490 pounds, and is suitable for operations on areas of up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

40 hp

Max power

40.2 hp

Weight

3424 to 3490 pounds

Catalogue coverage

Variants represented

Richest spec table

119 rows

Recorded power

40 hp

Recorded weight

268 kg

Transmissions

hydrostatic

Production years

2014-2016

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerNew HollandReference

Compact Utility tractorReference

Original price was $24,978 in 2014Reference

Four-wheel driveReference

Differential lockmechanical rearReference

Power steeringReference

Wet discs brakesReference

Two-post folding ROPS. Cab optional with air-conditioning.Reference

Engine

Shibaura 2.2L 4-cyl dieselReference

Fuel tank39.7 LReference

Engine (gross)30.0 kWReference

Shibaura N844LReference

dieselReference

4-cylinderReference

liquid-cooledReference

Displacement2.2 LReference

Bore/Stroke84 x 100 mmReference

EmissionsTier IVReference

Emission controlexhaust gas recirculation, diesel particulate filter, and diesel oxidation catalstReference

Power (gross)30.0 kWReference

Fuel systemindirect injectionReference

Air cleanerdry elementReference

Pre-heatingglow plugsReference

Rated RPM2600Reference

StarterelectricReference

Starter volts12Reference

Fuel TypeDieselReference

No of Cylinders4 cylinderReference

Rated engine speed2,600 RPMReference

Bore and stroke3.307x3.937 inchesReference

Cooling systemliquid-cooledReference

Transmission

hydrostaticReference

16-speed partially synchronized with mechanical shuttleReference

Gear Shipping weight1553 kgReference

TypehydrostaticReference

Gearsinfinite forward and reverse (3-range)Reference

Transmissionsynchronized shuttle shiftReference

Typepartially synchronized with mechanical shuttleReference

Gears16 forward and reverseReference

Four synchronized gears in four non-synchronized ranges. Synchronized mechanical shuttle.Reference

Transmission TypeOption 1: E-HST\\nOption 2: HSTReference

Wheel Drive4WDReference

PTO & Hydraulics

Gear PTO (claimed)23.6 kWReference

Hydro PTO (claimed)22.2 kWReference

Typeopen centerReference

Rear valves2Reference

Mid valves2Reference

Pump flow31.0 lpmReference

Gear Steering flow15.9 lpmReference

Hydro Steering flow20.1 lpmReference

Rear TypeIReference

Controlposition controlReference

Rear lift (at ends)1250 kgReference

Rear lift (at 24"/610mm)959 kgReference

Rear Armsadjustable draft link endsReference

Rear PTOindependentReference

Clutchelectro-hydraulicReference

Rear PTO Type540 (1.375)Reference

Mid PTOindependentReference

Mid PTO Type2000Reference

Dimensions

Wheelbase185 cmReference

Weight3424 to 3490 poundsReference

Front tire9.5-16Reference

Rear tire13.6-24Reference

Weight268 kgReference

Standard tires (ag)Front: 9.5-16. Rear: 13.6-24Reference

Lawn/turf front28x8.50-15Reference

Lawn/turf rear41x14.00-20Reference

Industrial front12-16.5Reference

Industrial rear17.5L-24Reference

Length325 cmReference

Width175 cmReference

Height (ROPS)246 cmReference

Hydro Shipping weight1583 kgReference

Flange rear axleReference

Front tread131 cmReference

Rear tread121 cmReference

New Holland Boomer 41 attachments

72" mid-mount mower deckReference

snowblowerReference

bladeReference

front-end loaderReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps85Reference

Battery CCA660Reference

Battery volts12Reference

Battery AH80Reference

Attachment overview

72" mid-mount mower deckReference

SnowblowerReference

BladeReference

Front-end loaderReference

72" Mower deck

Typemid-mount New Holland 372GMSReference

Type3-blade with hydraulic liftReference

Cutting width182 cmReference

Overall width215 cmReference

Cut height2 to 10 cmReference

General

Make & ModelNew HollandReference

Cruise controlAvailableReference

Rear Axle TypeFlangeReference

Rollover protective structureTwo-post foldable ROPSReference

Capacities

Capacity135.2 ciReference

Power

Max Power40.2 hpReference

PTO

PTO Power31.6 hpReference

Rear PTO PowerAvailableReference

Rear PTO RPM540 RPMReference

Mid PTO RPM2,000 RPMReference

Hydraulics

Hydraulics TypeOpen CenterReference

Remote Valves1 or 2 ValvesReference

Steering & Implements flow5.3 gpm (8.2 gpm)Reference

Rear Hitch category (SAE designation)Category IReference

Rear Hitch maximum lift capacity1,250.1 kgReference

Rear Hitch Sensing Typeposition controlReference

Dimensions & weight

Height Over ROPS246.6 cmReference

Overall Length325.4 cmReference

Overall weight3,490Reference

Wheels & tyres

Rear Wheel Type13.6-24Reference

Front Wheel Type9.5-16.Reference

Operator station

Cab AvailabilityAvailableReference

Steering & brakes

Steering typeHydrostatic PowerReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
