Tractor · 2015Unverified

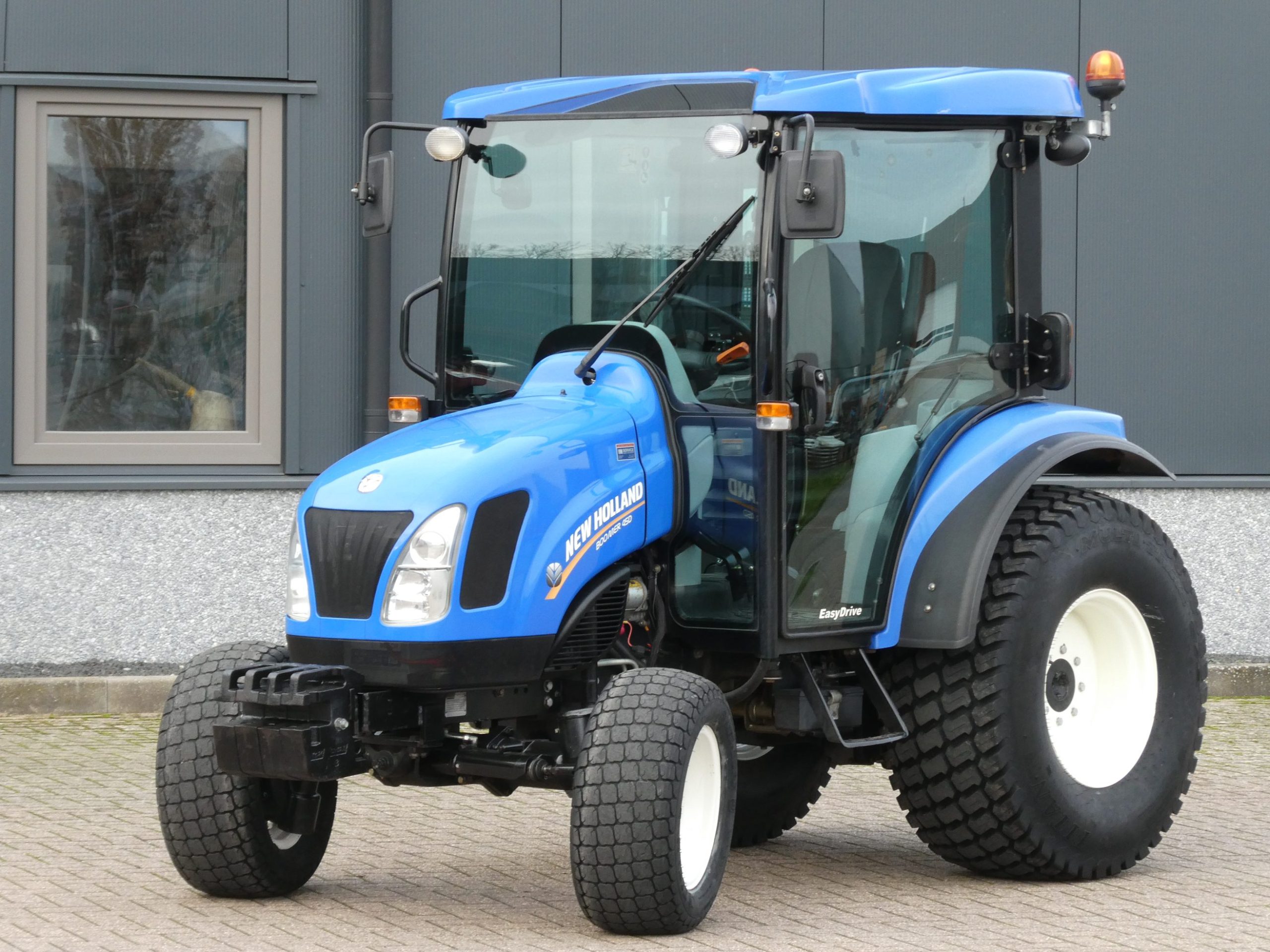

New Holland Boomer 45D
New Holland Boomer 45D — Boomer Series · 36 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
36 hp
Weight
1876 kg
Hover a source tag to verify
Overview
ManufacturerNew Holland (a part of CNH)Reference
Compact Utility tractorReference
Original price was $39,291 in 2017Reference
Four-wheel driveReference
Final drivesinboard planetaryReference
Power steeringReference
Wet disc brakesReference
Cab standard.Reference
Engine
Shibaura 2.2L 4-cyl dieselReference
Fuel tank49.2 LReference
Engine33.6 kWReference
Shibaura N844KReference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement2.2 LReference
Bore/Stroke84 x 100 mmReference
EmissionsTier IIIReference
Power33.6 kWReference
Fuel systemmechanical indirect injectionReference
Rated RPM2600Reference
StarterelectricReference
Starter volts12Reference
Transmission
chain-drive variatorReference
TransmissionEasyDrive CVTReference
Typechain-drive variatorReference
Gearsinfinite forward and reverseReference
PTO & Hydraulics
PTO (claimed)26.8 kWReference
Typeopen centerReference
Pump flow37.1 lpmReference
Rear TypeIReference
Controltop-link draft sensingReference
Rear lift (at ends)1606 kgReference
Rear lift (at 24"/610mm)1270 kgReference
Rear Armstelescoping draft linksReference
Rear PTOindependentReference
Clutchelectro-hydraulicReference
Rear PTO Type540 (1.375)Reference
Dimensions
Wheelbase186 cmReference
Weight1876 kgReference
Front tire8-16Reference
Rear tire14.9-24Reference
Standard tires (ag)Front: 8-16. Rear: 14.9-24Reference
Lawn/turf front27x10.50-15Reference
Lawn/turf rear44x18-20Reference
Lawn/turf front27/12LLx15Reference
Lawn/turf rear22.5LLx16.1Reference
Industrial front10-16.5Reference
Industrial rear17.5Lx24Reference
Length309 cmReference
Width173 cmReference
Height (cab)229 cmReference
Flange rear axleReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps55Reference
Charging amps75Reference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
