Tractor · 2015Unverified

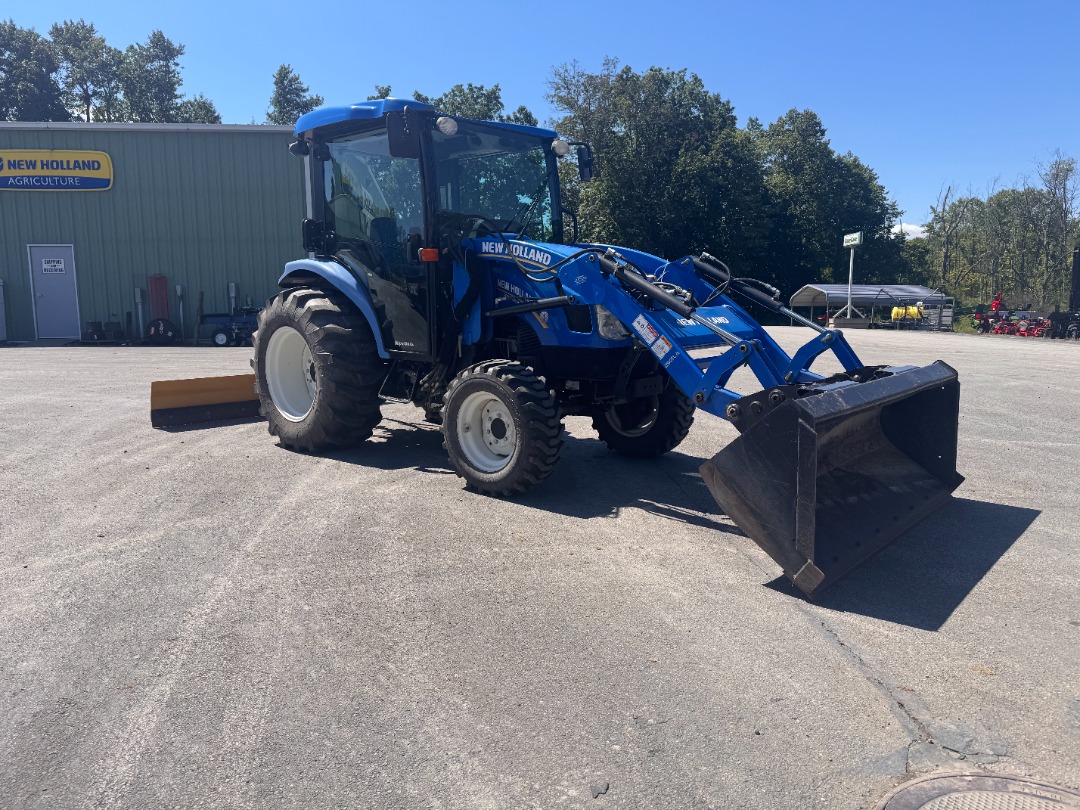

New Holland Boomer 46D

Name: New Holland Boomer 46D
Brand: New Holland

New Holland Boomer 46D — Boomer Series · 34 hp. Reference specifications; pending source verification.

The New Holland Boomer 46D is a tractor with a power rating of approximately 34 hp, situated at the lighter end of its class. It was produced in 2015 and features a 3-cylinder turbocharged diesel liquid-cooled engine, paired with four-wheel drive and a continuously variable transmission. The tractor has an operating weight of 4190 to 4940 pounds. It is suitable for operations covering up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

34 hp

Weight

4190 to 4940 pounds

Catalogue coverage

Variants represented

Richest spec table

67 rows

Recorded power

34 hp

Recorded weight

1900 kg

Transmissions

EasyDrive CVT

Production years

2015-2015

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerNew Holland (a part of CNH)Reference

Compact Utility tractorReference

Original price was $32,946 in 2017Reference

Four-wheel driveReference

Final drivesinboard planetaryReference

Power steeringReference

Wet disc brakesReference

Two-post folding ROPS. Cab optional with air-conditioning.Reference

Engine

FPT 2.2L 3-cyl dieselReference

Fuel tank49.2 LReference

Engine34.3 kWReference

FPT R753IE4Reference

turbocharged dieselReference

3-cylinderReference

liquid-cooledReference

Displacement2.2 LReference

Bore/Stroke94 x 107 mmReference

EmissionsTier IVReference

Emission controlexhaust gas recirculation with diesel particulate filterReference

Power34.3 kWReference

Fuel systemelectronic high-pressure common rail direct injectionReference

Rated RPM2600Reference

StarterelectricReference

Starter volts12Reference

Transmission

chain-drive variatorReference

TransmissionEasyDrive CVTReference

Typechain-drive variatorReference

Gearsinfinite forward and reverseReference

PTO & Hydraulics

PTO (claimed)25.4 kWReference

Typeopen centerReference

Valves1 or 2Reference

Pump flow39.7 lpmReference

Rear TypeIReference

Controlposition controlReference

Rear lift (at ends)1606 kgReference

Rear lift (at 24"/610mm)1270 kgReference

Rear Armstelescoping draft linksReference

Rear PTOindependentReference

Clutchelectro-hydraulicReference

Rear PTO Type540 (1.375)Reference

Dimensions

Wheelbase186 cmReference

Weight4190 to 4940 poundsReference

Front tire8-16Reference

Rear tire14.9-24Reference

Standard tires (ag)Front: 8-16. Rear: 14.9-24Reference

Lawn/turf front27x10.50-15Reference

Lawn/turf rear44x18-20Reference

Lawn/turf front27/12LLx15Reference

Lawn/turf rear22.5LLx16.1Reference

Industrial front10-16.5Reference

Industrial rear17.5Lx24Reference

Length309 cmReference

Width173 cmReference

Height (cab)235 cmReference

ROPS Weight1900 kgReference

Cab Weight2240 kgReference

Flange rear axleReference

New Holland Boomer 46D attachments

mid-mount mower deckReference

front-end loaderReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

ROPS Charging amps75Reference

Cab Charging amps90Reference

Battery volts12Reference

Attachment overview

Mid-mount mower deckReference

Front-end loaderReference

Mower deck

Typemid-mount New Holland 272GMSReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
