Tractor · 2011Unverified

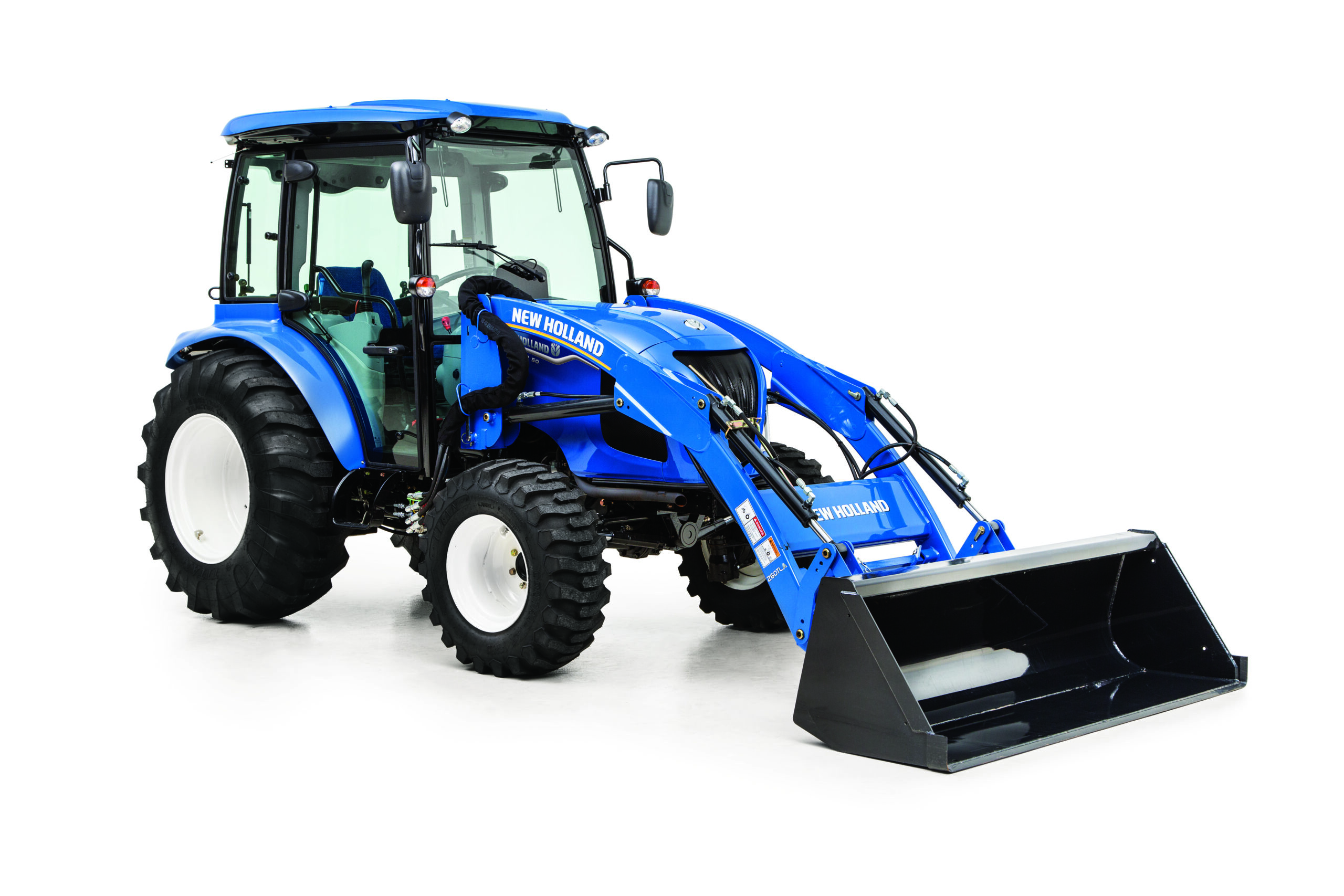

New Holland Boomer 50
New Holland Boomer 50 — Boomer Series · 47 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
47 hp
Weight
1609 kg
Hover a source tag to verify
Overview
ManufacturerNew HollandReference
Compact Utility tractorReference
Original price was $20,901 in 2010Reference
Four-wheel driveReference
Differential lockmechanical rearReference
Power steeringReference
Differential mechanical wet disc brakesReference
Two-post folding ROPS.Reference
Engine
Mitsubishi 2.5L 4-cyl dieselReference
Fuel tank36.0 LReference
Engine (gross)35.0 kWReference
Mitsubishi S4Q2Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement2.5 LReference
EmissionsTier 3Reference
Power (gross)35.0 kWReference
Air cleanerdual dry elementReference
Pre-heatingglow plugsReference
Rated RPM2600Reference
StarterelectricReference
Starter volts12Reference
Transmission
16-speed synchronized shuttleReference
hydrostaticReference
Typesynchronized shuttleReference
Gears16 forward and reverseReference
Clutchdry 11-inch organic plateReference
TypehydrostaticReference
Gearsinfinite forward and reverse (3-range)Reference
PTO & Hydraulics
PTO (claimed)29.4 kWReference
PTO (claimed)27.7 kWReference
Typeopen centerReference
Rear valves1Reference
Mid valves2Reference
Pump flow31.0 lpmReference
Gear Total flow46.6 lpmReference
Hydro Total flow51.9 lpmReference
Gear Steering flow15.5 lpmReference
Hydro Steering flow20.8 lpmReference
Rear TypeIReference
Rear lift (at ends)1250 kgReference
Rear PTOindependentReference
Clutchelectro-hydraulicReference
Rear PTO Type540 (1.375)Reference
Mid PTOindependentReference
Mid PTO Type2000Reference
Dimensions
Wheelbase175 cmReference
Weight1609 kgReference
Front tire9.5-16Reference
Rear tire13.6-24Reference
Weight268 kgReference
Ag front9.5-16Reference
Ag rear13.6-24Reference
Lawn/turf front29x12.50-15Reference
Lawn/turf rear41x14.00-20Reference
Industrial front10-16.5Reference
Industrial rear43x16.00-24Reference
Length307 cmReference
Width162 cmReference
Shipping weight1609 kgReference
Flange rear axleReference
Front tread131 cmReference
Rear tread113 cmReference
New Holland Boomer 50 attachments
72" mid-mount mower deckReference
front-end loaderReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps50Reference
Charging volts12Reference
Battery CCA660Reference
Battery volts12Reference
Battery AH80Reference
Attachment overview
72" mid-mount mower deckReference
Front-end loaderReference
72" Mower deck
Typemid-mount New Holland 272GMSReference
Type3-blade with hydraulic liftReference
Cutting width182 cmReference
Overall width215 cmReference
Cut height2 to 10 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
