Tractor · 2015Unverified

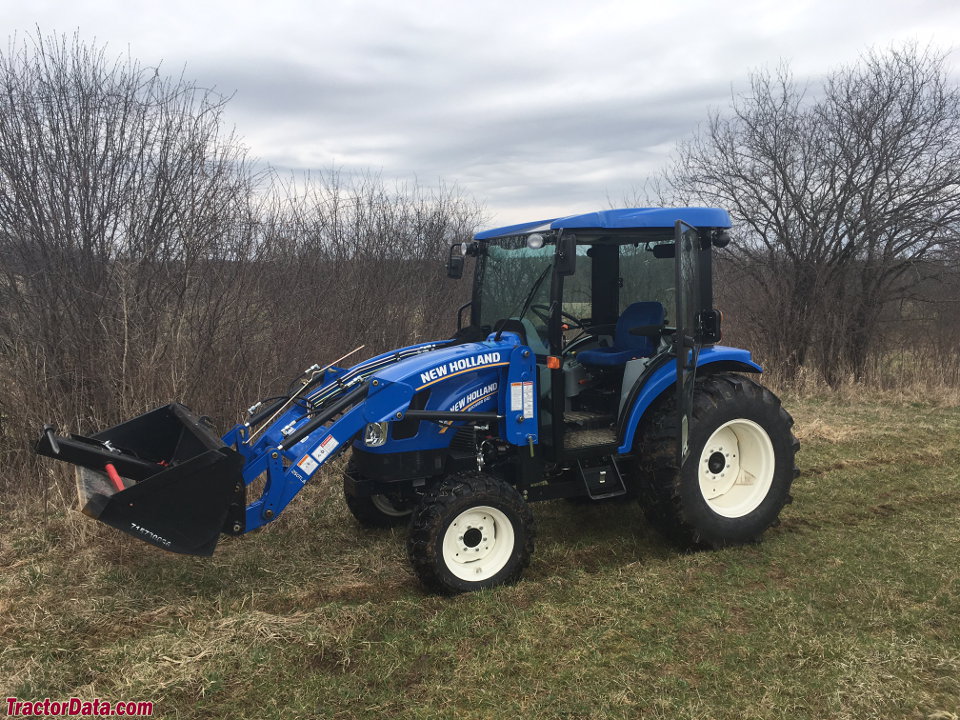

New Holland Boomer 54D
New Holland Boomer 54D — Boomer Series · 41 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
41 hp
Weight
4190 to 4940 pounds
Hover a source tag to verify
Overview
ManufacturerNew Holland (a part of CNH)Reference
Compact Utility tractorReference
Original price was $36,172 in 2017Reference
Four-wheel driveReference
Final drivesinboard planetaryReference
Power steeringReference
Wet disc brakesReference
Two-post folding ROPS. Cab optional with air-conditioning.Reference
Engine
FPT 2.2L 3-cyl dieselReference
Fuel tank49.2 LReference
Engine40.3 kWReference
FPT R753IE4Reference
turbocharged dieselReference
3-cylinderReference
liquid-cooledReference
Displacement2.2 LReference
Bore/Stroke94 x 107 mmReference
EmissionsTier IVReference
Emission controlexhaust gas recirculation with diesel particulate filterReference
Power40.3 kWReference
Fuel systemelectronic high-pressure common rail direct injectionReference
Rated RPM2600Reference
StarterelectricReference
Starter volts12Reference
Transmission
chain-drive variatorReference
TransmissionEasyDrive CVTReference
Typechain-drive variatorReference
Gearsinfinite forward and reverseReference
PTO & Hydraulics
PTO (claimed)30.6 kWReference
Typeopen centerReference
Valves1 or 2Reference
Pump flow39.7 lpmReference
Rear TypeIReference
Controlposition controlReference
Rear lift (at ends)1606 kgReference
Rear lift (at 24"/610mm)1270 kgReference
Rear Armstelescoping draft linksReference
Rear PTOindependentReference
Clutchelectro-hydraulicReference
Rear PTO Type540 (1.375)Reference
Dimensions
Wheelbase186 cmReference
Weight4190 to 4940 poundsReference
Front tire8-16Reference
Rear tire14.9-24Reference
Standard tires (ag)Front: 8-16. Rear: 14.9-24Reference
Lawn/turf front27x10.50-15Reference
Lawn/turf rear44x18-20Reference
Lawn/turf front27/12LLx15Reference
Lawn/turf rear22.5LLx16.1Reference
Industrial front10-16.5Reference
Industrial rear17.5Lx24Reference
Length309 cmReference
Width173 cmReference
Height (cab)235 cmReference
ROPS Weight1900 kgReference
Cab Weight2240 kgReference
Flange rear axleReference
New Holland Boomer 54D attachments
mid-mount mower deckReference
front-end loaderReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
ROPS Charging amps75Reference
Cab Charging amps90Reference
Battery volts12Reference
Attachment overview
Mid-mount mower deckReference
Front-end loaderReference
Mower deck
Typemid-mount New Holland 272GMSReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
