Tractor · 2017Unverified

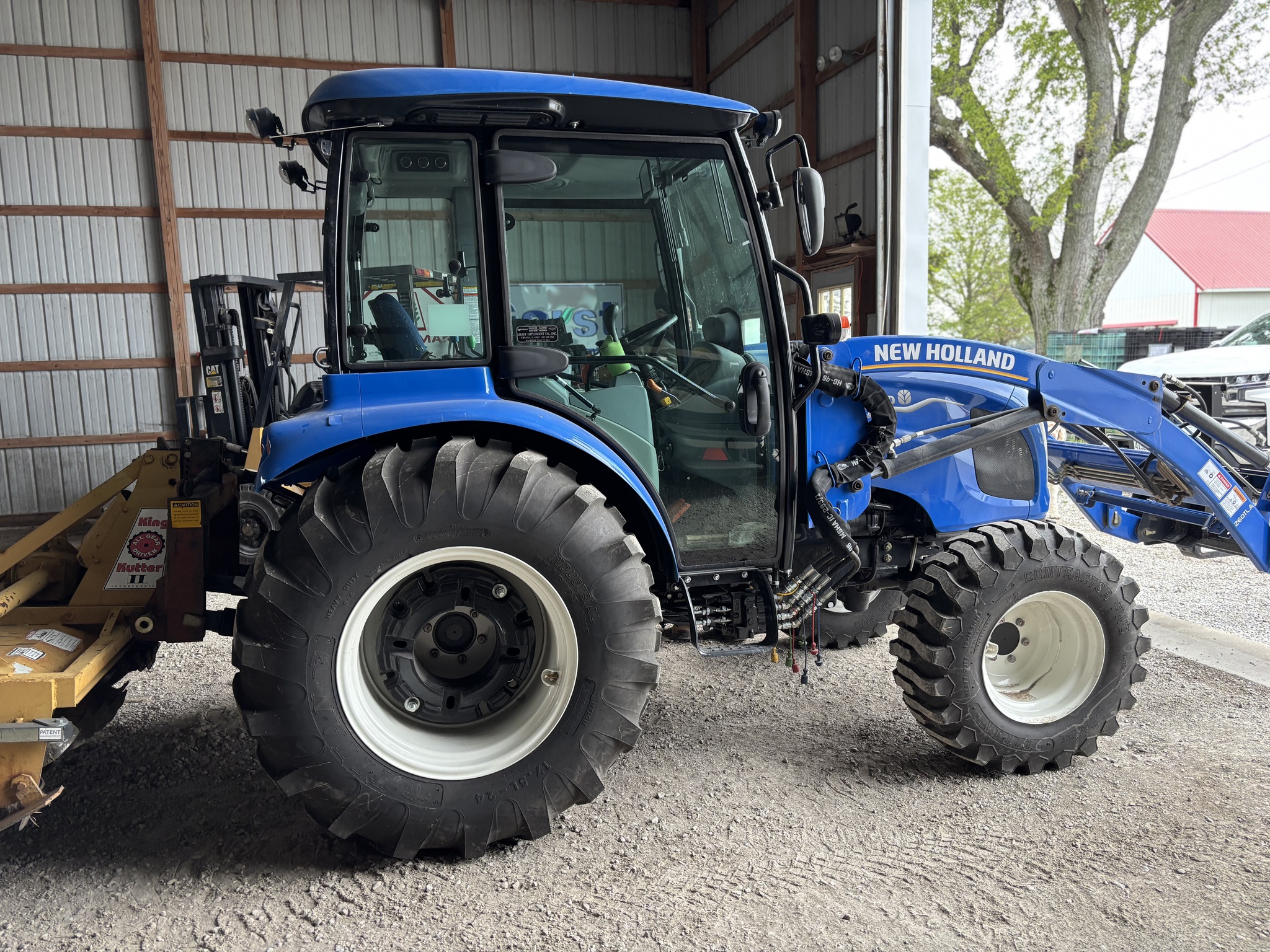

New Holland Boomer 55

Name: New Holland Boomer 55
Brand: New Holland

New Holland Boomer 55 — Boomer Series · 55 hp. Reference specifications; pending source verification.

The New Holland Boomer 55 is a compact tractor with a rated output of 55 hp. It was manufactured in 2017. The tractor is equipped with a 3-cylinder turbocharged diesel liquid-cooled engine and features a four-wheel drive system with a hydrostatic transmission. The listed weight is between 3424 and 4194 pounds, and it is suitable for use on areas of up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

55 hp

Max power

55 hp

Weight

3424 to 4194 pounds

Catalogue coverage

Variants represented

Richest spec table

132 rows

Recorded power

55 hp

Recorded weight

327 kg

Transmissions

16-speed synchronized shuttle

Production years

2017-2017

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerNew Holland (a part of CNH)Reference

Compact Utility tractorReference

Original price$33,087 (2017 shuttle ROPS)Reference

Original price$40,296 (2017 hydro cab)Reference

Four-wheel driveReference

Differential lockmechanical rearReference

Power steeringReference

Wet disc brakesReference

Two-post folding ROPS. Cab optional with air-conditioning.Reference

Variants

Farmall 55Csimilar CaseIH modelReference

MT357similar LS modelReference

Engine

LS Mtron 1.9L 3-cyl dieselReference

ROPS Fuel tank39.7 LReference

Cab Fuel tank46.9 LReference

Engine (gross)41.0 kWReference

LS Mtron L3C19-TReference

turbocharged dieselReference

3-cylinderReference

liquid-cooledReference

Displacement1.9 LReference

Bore/Stroke88 x 103 mmReference

EmissionsTier IVReference

Emission controlexhaust gas recirculation with diesel particulate filterReference

Power (gross)41.0 kWReference

Fuel systemelectronic common rail direct injectionReference

Rated RPM2600Reference

Firing order1-3-2Reference

StarterelectricReference

Starter volts12Reference

Fuel TypeDieselReference

No of Cylinders3Reference

Rated engine speed2,600 rpmReference

Emissions complianceT4B FinalReference

AspirationTurboReference

Transmission

16-speed synchronized shuttleReference

hydrostaticReference

Gear ROPS1553 kgReference

Typesynchronized shuttleReference

Gears16 forward and reverseReference

Four gears in four ranges with mechanical shuttleReference

TypehydrostaticReference

Gearsinfinite forward and reverse (3-range)Reference

Transmission TypeGearReference

Wheel Drive4WDReference

PTO & Hydraulics

Gear PTO (claimed)34.8 kWReference

Hydro PTO (claimed)32.8 kWReference

Typeopen centerReference

Valves1 or 2Reference

Pump flow31.0 lpmReference

Gear Steering flow15.9 lpmReference

Hydro Steering flow20.1 lpmReference

Rear TypeIReference

Controlposition controlReference

Rear lift (at ends)1250 kgReference

Rear lift (at 24"/610mm)959 kgReference

Rear Armstelescoping draft linksReference

Rear PTOindependentReference

Clutchelectro-hydraulicReference

Rear PTO Type540 (1.375)Reference

Dimensions

Wheelbase185 cmReference

Weight3424 to 4194 poundsReference

Front tire9.5x16Reference

Rear tire13.6-24Reference

Weight327 kgReference

Weight387 kgReference

Standard tires (ag)Front: 9.5x16. Rear: 13.6-24Reference

Lawn/turf front28x8.50-15Reference

Lawn/turf rear41x14.00-20Reference

Industrial front12-16.5Reference

Industrial rear17.5Lx24Reference

Length325 cmReference

Width175 cmReference

Height (ROPS)246 cmReference

Height (cab)238 cmReference

Flange rear axleReference

Hydro ROPS1583 kgReference

Hydro cab1902 kgReference

New Holland Boomer 55 attachments

72" mid-mount mower deckReference

snowblowerReference

bladeReference

front-end loaderReference

backhoeReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

ROPS Charging amps70Reference

Cab Charging amps85Reference

Battery volts12Reference

Alternator size70 ampsReference

Attachment overview

72" mid-mount mower deckReference

SnowblowerReference

BladeReference

Front-end loaderReference

BackhoeReference

72" Mower deck

Typemid-mount New Holland 372GMSReference

Type3-bladeReference

Cutting width182 cmReference

New Holland 925GHB Backhoe

Backhoe typeNew Holland 925GHB BackhoeReference

Transport height195 cmReference

Digging depth233 cmReference

Reach from pivot304 cmReference

Loading height177 cmReference

Bucket Rotation174°Reference

Swing Arc175°Reference

Bucket force1429 kgReference

Dipperstick force933 kgReference

New Holland 935GHB Backhoe

Backhoe typeNew Holland 935GHB BackhoeReference

Transport height223 cmReference

Digging depth254 cmReference

Reach from pivot330 cmReference

Loading height193 cmReference

Bucket Rotation180°Reference

Swing Arc175°Reference

Bucket force2032 kgReference

Dipperstick force1148 kgReference

Power

Max Power55 hpReference

PTO

PTO Power46.7 hpReference

Rear PTO PowerAvailableReference

Rear PTO ControlIndependent Electro-Hydraulic EngagementReference

Rear PTO RPM540 rpmReference

General

Cruise controlStandard HSTReference

Steering & brakes

BrakesWet, Multi-DiscReference

Steering typePower SteeringReference

Hydraulics

Pump Rated Output (total)46.9 l/minReference

Remote Valves1Reference

Steering & Implements flow4.2 gpm (8.2 gpm)Reference

Rear Hitch category (SAE designation)3-Point Hitch | Category IReference

Rear Hitch maximum lift capacity1,250.1 kgReference

Dimensions & weight

Height Over ROPS246.6 cmReference

Overall Length325.4 cmReference

Overall Width1,755 mmReference

Overall weight1,553.1 kgReference

Capacities

Fuel tank39.7 LReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
