Search/Tractor/New Holland/Boomer 8N
Tractor · 2009Unverified

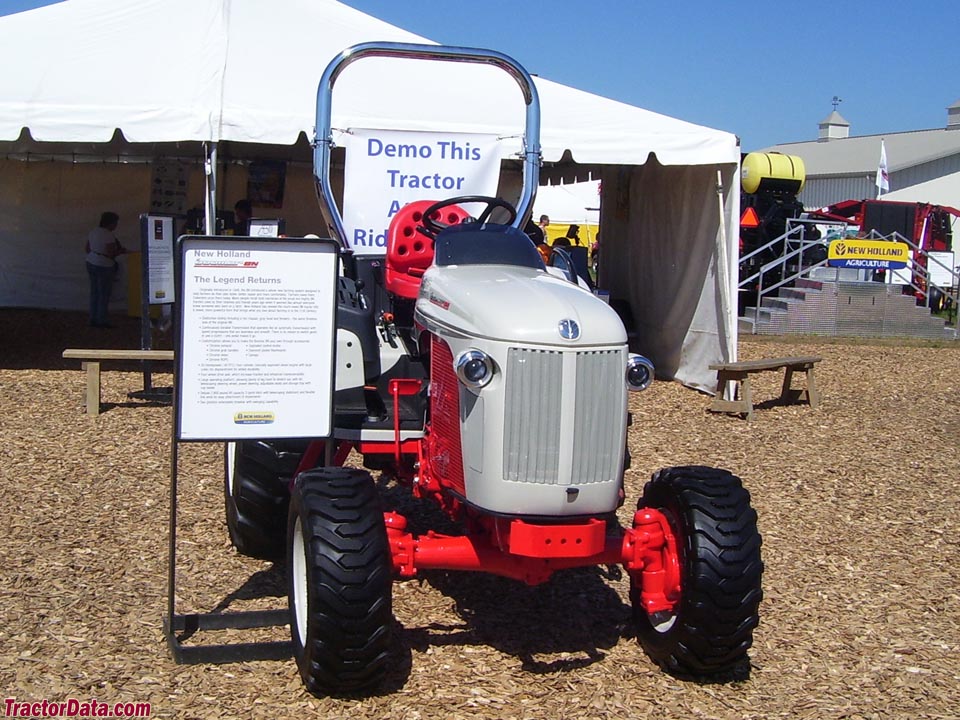

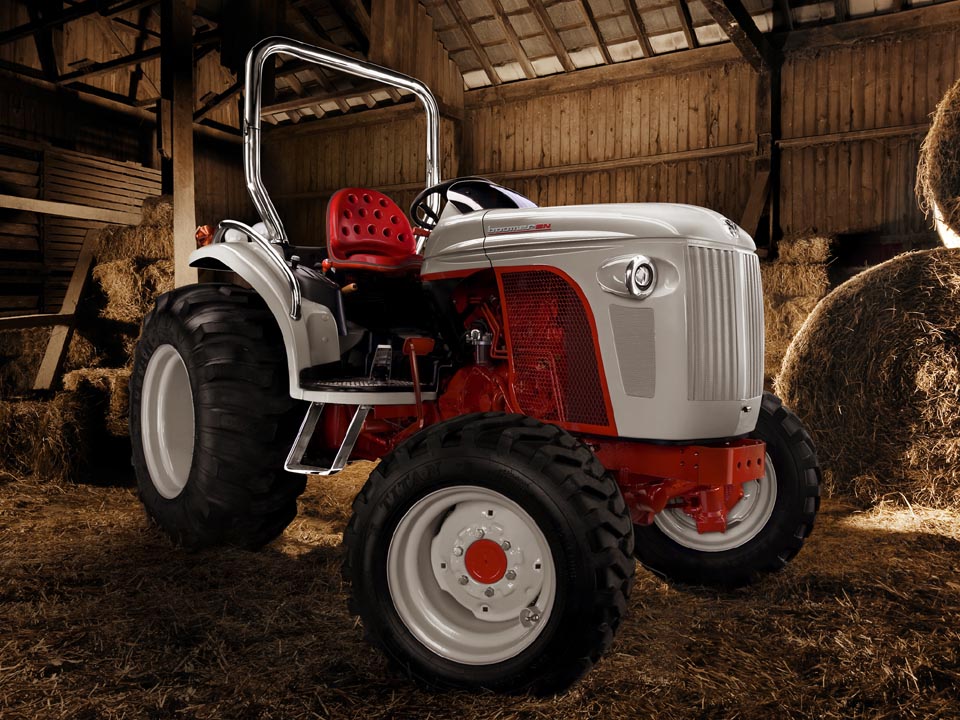

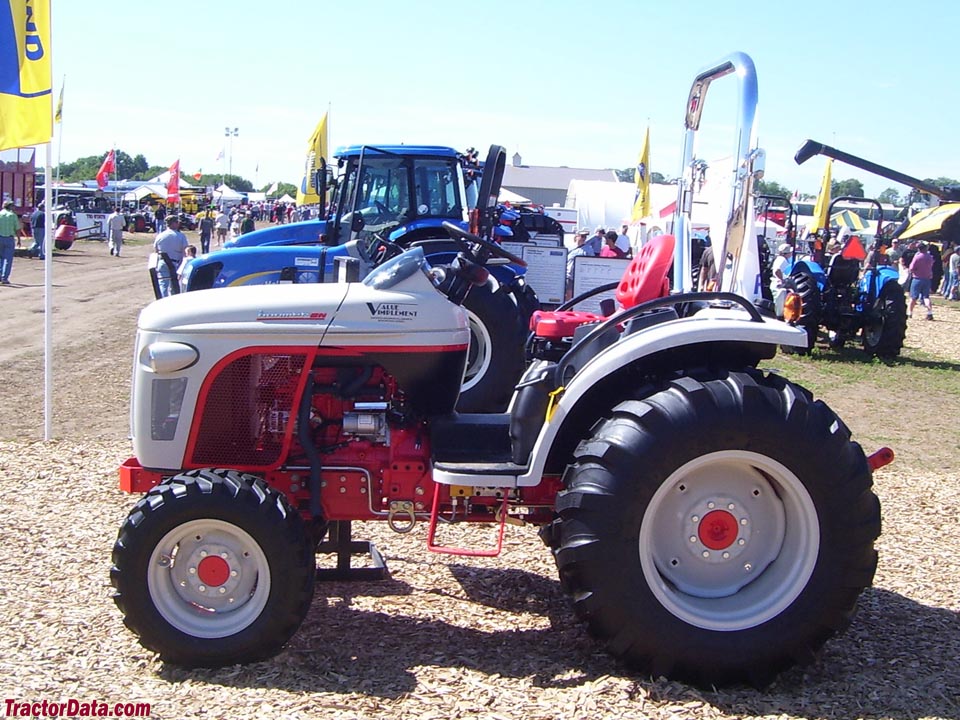

New Holland Boomer 8N

New Holland Boomer 8N — Boomer Series · 40 hp. Reference specifications; pending source verification.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power
40 hp
Weight
1705 kg
Hover a source tag to verify

Overview

ManufacturerNew HollandReference
Compact Utility tractorReference
Original price was $30,000 in 2009Reference
Four-wheel driveReference
Steeringhydrostatic powerReference
Integral wet disc brakesReference
Two-post ROPS. Optional ROPS canopy with windshield.Reference

Engine

Shibaura 2.2L 4-cyl dieselReference
Fuel tank49.2 LReference
Engine37.3 kWReference
ShibauraReference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement2.2 LReference
Bore/Stroke84 x 100 mmReference
Power37.3 kWReference
Rated RPM2800Reference
Starter volts12Reference
Oil capacity6.0 LReference

Transmission

continuously variable transmission (CVT)Reference
Typecontinuously variable transmission (CVT)Reference
Gearsinfinite forward and reverseReference

PTO & Hydraulics

PTO (claimed)29.8 kWReference
Typeopen centerReference
Pressure172.4 barReference
Pump flow39.7 lpmReference
Steering flow19.3 lpmReference
Rear TypeIReference
Rear lift1270 kgReference
Rear PTOindependentReference
Mid PTOoptionalReference

Dimensions

Wheelbase186 cmReference
Weight1705 kgReference
Front tire8.0x16Reference
Rear tire14.9x24Reference
Ag front8.0x16Reference
Ag rear14.9x24Reference
Lawn/turf front27x10.5-15Reference
Lawn/turf rear44x18-20Reference
Industrial front10x16.5Reference
Industrial rear17.5x24Reference
Length309 cmReference
Width173 cmReference
Height (ROPS)247 cmReference
Clearance (drawbar)31 cmReference

Boomer 8N Serial Number Location

Serial number decal on the left-front of the tractor frame.Reference

Electrical

GroundnegativeReference
Battery volts12Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
